Datasheet LT3502, LT3502A (Analog Devices) - 3
| Fabricante | Analog Devices |
| Descripción | 1.1MHz/2.2MHz, 500mA Step-Down Regulators in 2mm × 2mm DFN and MS10 |
| Páginas / Página | 24 / 3 — electrical characteristics. The. denotes the specifications which apply … |
| Formato / tamaño de archivo | PDF / 466 Kb |
| Idioma del documento | Inglés |
electrical characteristics. The. denotes the specifications which apply over the full operating
Línea de modelo para esta hoja de datos
- LT3502AEDC#PBF LT3502AEDC#TRMPBF LT3502AEDC#TRPBF LT3502AEMS#PBF LT3502AEMS#TRPBF LT3502AIDC#PBF LT3502AIDC#TRMPBF LT3502AIDC#TRPBF LT3502AIMS#PBF LT3502AIMS#TRPBF LT3502EDC#PBF LT3502EDC#TRMPBF LT3502EDC#TRPBF LT3502EMS#PBF LT3502EMS#TRPBF LT3502IDC#PBF LT3502IDC#TRMPBF LT3502IDC#TRPBF LT3502IMS#PBF LT3502IMS#TRPBF
Versión de texto del documento
LT3502/LT3502A
electrical characteristics The
l

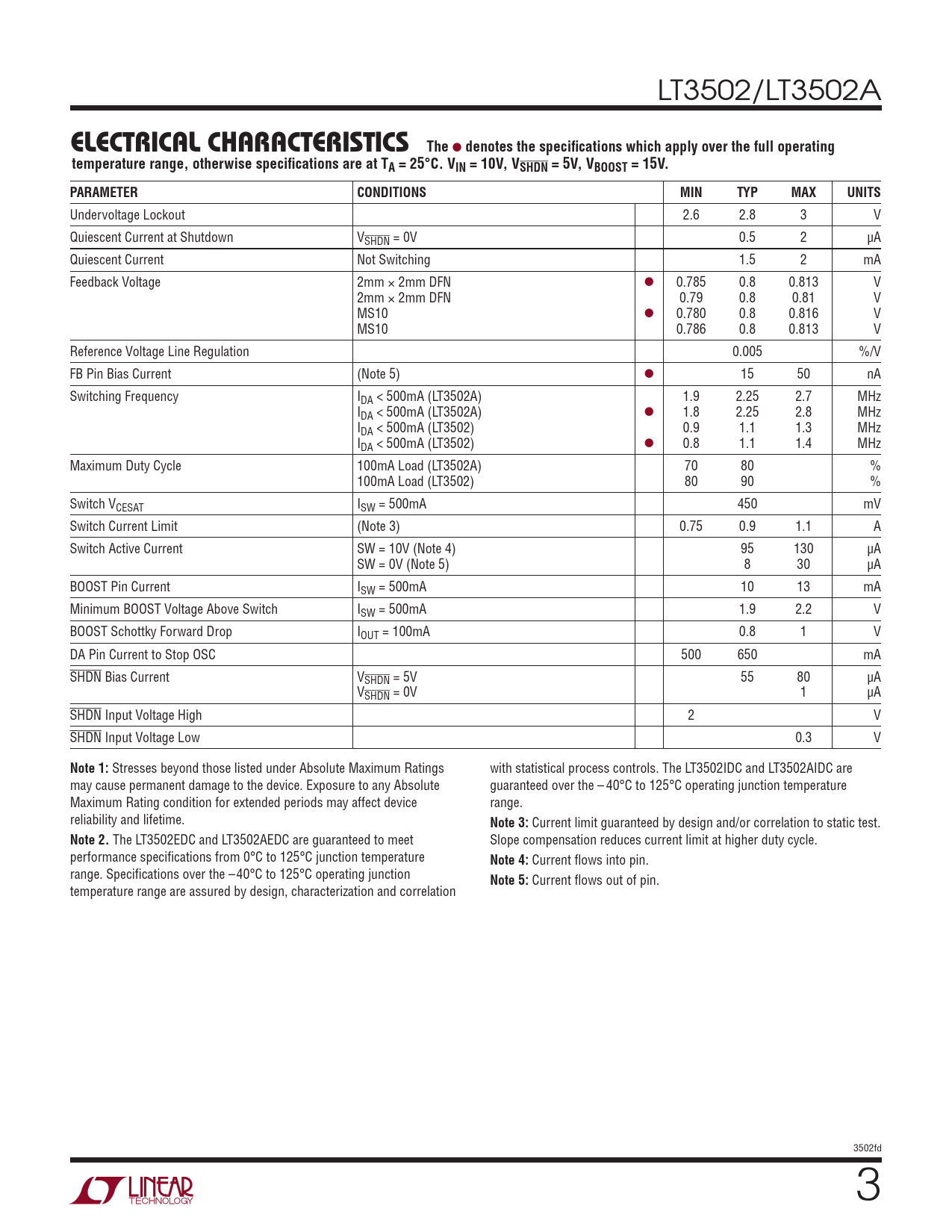

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VIN = 10V, VSHDN = 5V, VBOOST = 15V. PARAMETER CONDITIONS MIN TYP MAX UNITS
Undervoltage Lockout 2.6 2.8 3 V Quiescent Current at Shutdown VSHDN = 0V 0.5 2 µA Quiescent Current Not Switching 1.5 2 mA Feedback Voltage 2mm × 2mm DFN l 0.785 0.8 0.813 V 2mm × 2mm DFN 0.79 0.8 0.81 V MS10 l 0.780 0.8 0.816 V MS10 0.786 0.8 0.813 V Reference Voltage Line Regulation 0.005 %/V FB Pin Bias Current (Note 5) l 15 50 nA Switching Frequency IDA < 500mA (LT3502A) 1.9 2.25 2.7 MHz IDA < 500mA (LT3502A) l 1.8 2.25 2.8 MHz IDA < 500mA (LT3502) 0.9 1.1 1.3 MHz IDA < 500mA (LT3502) l 0.8 1.1 1.4 MHz Maximum Duty Cycle 100mA Load (LT3502A) 70 80 % 100mA Load (LT3502) 80 90 % Switch VCESAT ISW = 500mA 450 mV Switch Current Limit (Note 3) 0.75 0.9 1.1 A Switch Active Current SW = 10V (Note 4) 95 130 µA SW = 0V (Note 5) 8 30 µA BOOST Pin Current ISW = 500mA 10 13 mA Minimum BOOST Voltage Above Switch ISW = 500mA 1.9 2.2 V BOOST Schottky Forward Drop IOUT = 100mA 0.8 1 V DA Pin Current to Stop OSC 500 650 mA SHDN Bias Current VSHDN = 5V 55 80 µA VSHDN = 0V 1 µA SHDN Input Voltage High 2 V SHDN Input Voltage Low 0.3 V
