Datasheet LT3502, LT3502A (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | 1.1MHz/2.2MHz, 500mA Step-Down Regulators in 2mm × 2mm DFN and MS10 |
| Páginas / Página | 24 / 1 — Features. Description. 3V to 40V Input Voltage Range. 500mA Output … |
| Formato / tamaño de archivo | PDF / 466 Kb |
| Idioma del documento | Inglés |
Features. Description. 3V to 40V Input Voltage Range. 500mA Output Current. Switching Frequency: 2.2MHz (LT3502A),
Línea de modelo para esta hoja de datos
- LT3502AEDC#PBF LT3502AEDC#TRMPBF LT3502AEDC#TRPBF LT3502AEMS#PBF LT3502AEMS#TRPBF LT3502AIDC#PBF LT3502AIDC#TRMPBF LT3502AIDC#TRPBF LT3502AIMS#PBF LT3502AIMS#TRPBF LT3502EDC#PBF LT3502EDC#TRMPBF LT3502EDC#TRPBF LT3502EMS#PBF LT3502EMS#TRPBF LT3502IDC#PBF LT3502IDC#TRMPBF LT3502IDC#TRPBF LT3502IMS#PBF LT3502IMS#TRPBF
Versión de texto del documento

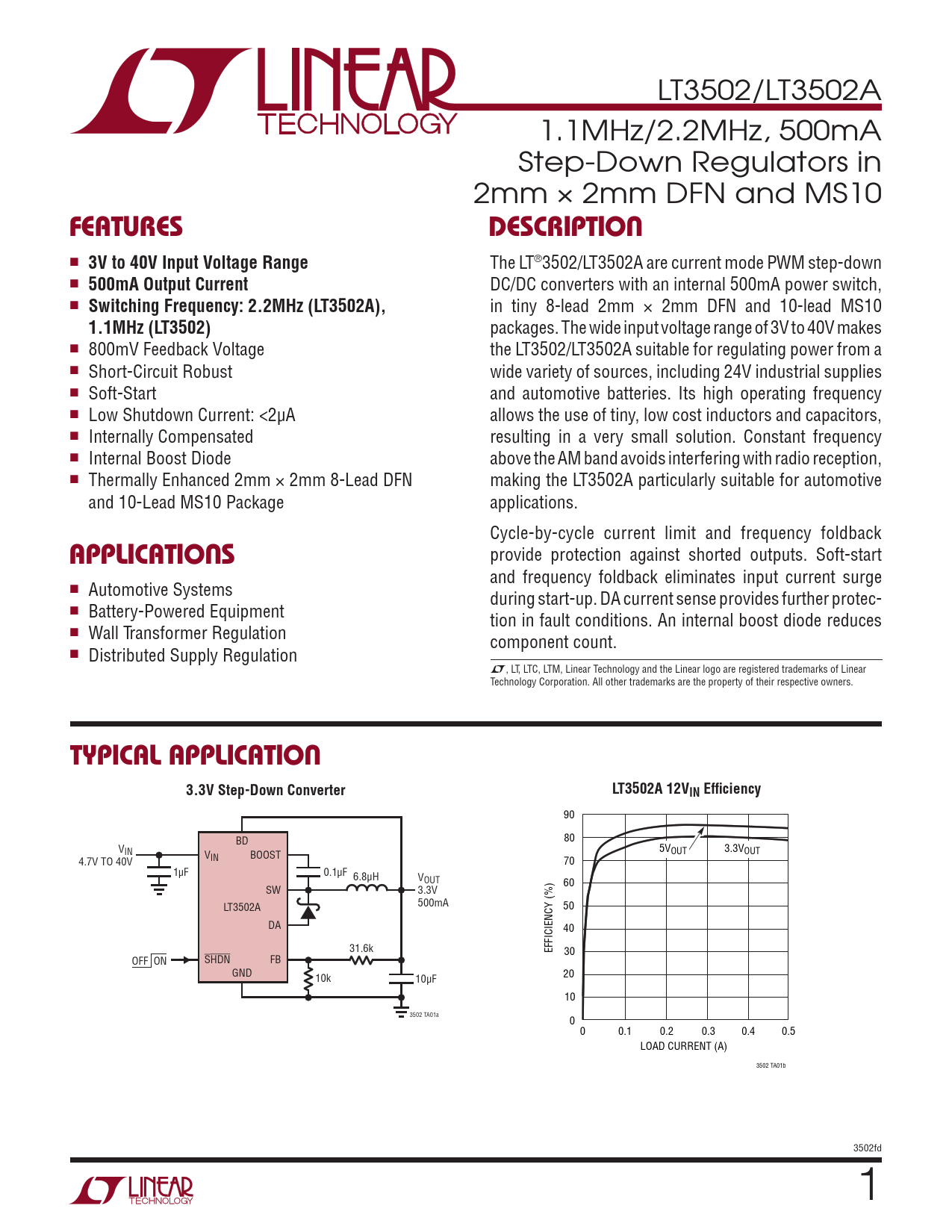

LT3502/LT3502A 1.1MHz/2.2MHz, 500mA Step-Down Regulators in 2mm × 2mm DFN and MS10
Features Description
n
3V to 40V Input Voltage Range
The LT®3502/LT3502A are current mode PWM step-down n
500mA Output Current
DC/DC converters with an internal 500mA power switch, n
Switching Frequency: 2.2MHz (LT3502A),
in tiny 8-lead 2mm × 2mm DFN and 10-lead MS10
1.1MHz (LT3502)
packages. The wide input voltage range of 3V to 40V makes n 800mV Feedback Voltage the LT3502/LT3502A suitable for regulating power from a n Short-Circuit Robust wide variety of sources, including 24V industrial supplies n Soft-Start and automotive batteries. Its high operating frequency n Low Shutdown Current: <2µA allows the use of tiny, low cost inductors and capacitors, n Internally Compensated resulting in a very small solution. Constant frequency n Internal Boost Diode above the AM band avoids interfering with radio reception, n Thermally Enhanced 2mm × 2mm 8-Lead DFN making the LT3502A particularly suitable for automotive and 10-Lead MS10 Package applications. Cycle-by-cycle current limit and frequency foldback
applications
provide protection against shorted outputs. Soft-start and frequency foldback eliminates input current surge n Automotive Systems during start-up. DA current sense provides further protec- n Battery-Powered Equipment tion in fault conditions. An internal boost diode reduces n Wall Transformer Regulation component count. n Distributed Supply Regulation L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.
typical application 3.3V Step-Down Converter LT3502A 12VIN Efficiency
90 BD 80 VIN V 5VOUT 3.3VOUT IN BOOST 4.7V TO 40V 70 1µF 0.1µF 6.8µH VOUT 60 SW 3.3V LT3502A 500mA 50 DA 40 31.6k EFFICIENCY (%) 30 OFF ON SHDN FB GND 10k 10µF 20 10 3502 TA01a 0 0 0.1 0.2 0.3 0.4 0.5 LOAD CURRENT (A) 3502 TA01b 3502fd 1 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Typical Application Related Parts
