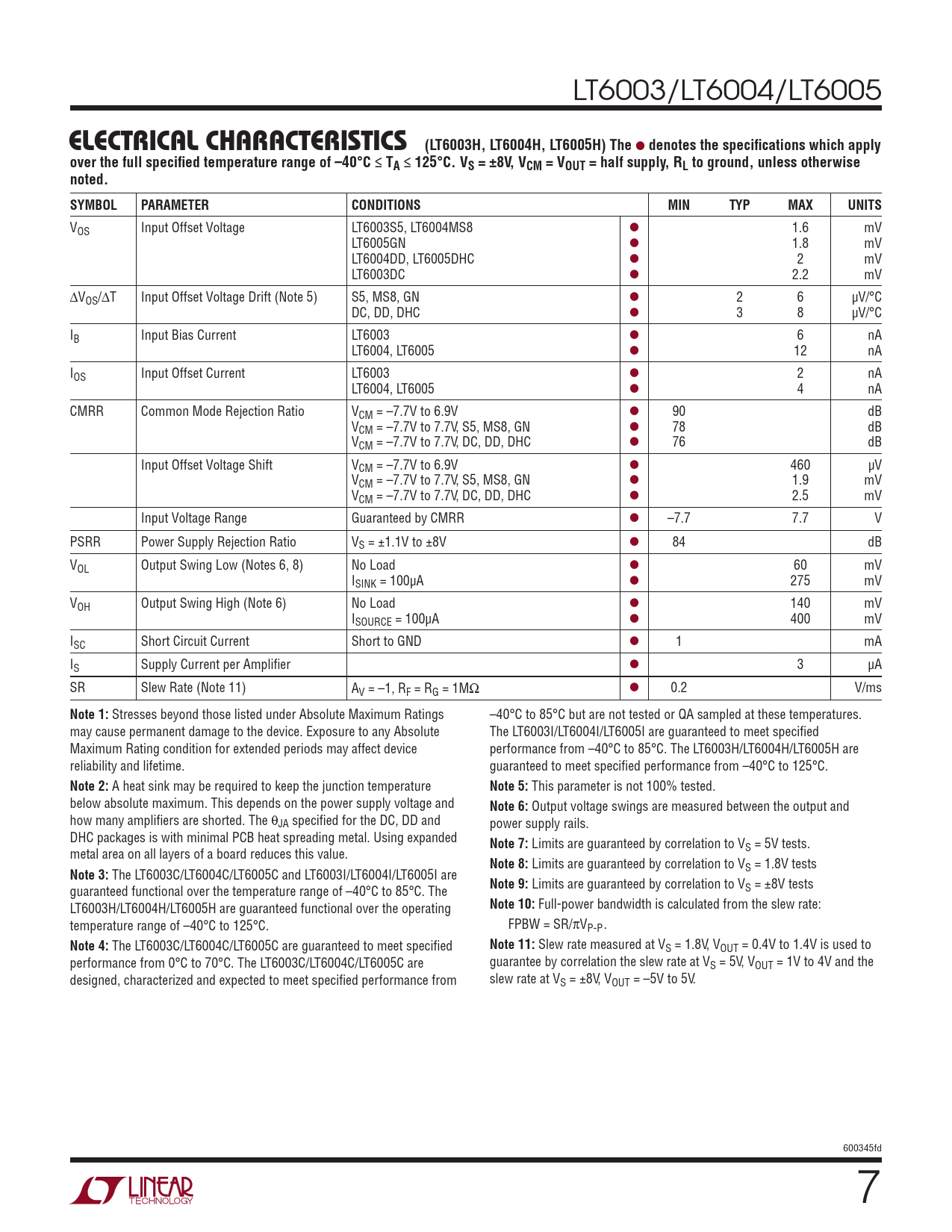

LT6003/LT6004/LT6005
ELECTRICAL CHARACTERISTICS (LT6003H, LT6004H, LT6005H) The
l
denotes the specifications which apply over the full specified temperature range of –40°C ≤ TA ≤ 125°C. VS = ±8V, VCM = VOUT = half supply, RL to ground, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage LT6003S5, LT6004MS8 l 1.6 mV LT6005GN l 1.8 mV LT6004DD, LT6005DHC l 2 mV LT6003DC l 2.2 mV ΔVOS/ΔT Input Offset Voltage Drift (Note 5) S5, MS8, GN l 2 6 µV/°C DC, DD, DHC l 3 8 µV/°C IB Input Bias Current LT6003 l 6 nA LT6004, LT6005 l 12 nA IOS Input Offset Current LT6003 l 2 nA LT6004, LT6005 l 4 nA CMRR Common Mode Rejection Ratio VCM = –7.7V to 6.9V l 90 dB VCM = –7.7V to 7.7V, S5, MS8, GN l 78 dB VCM = –7.7V to 7.7V, DC, DD, DHC l 76 dB Input Offset Voltage Shift VCM = –7.7V to 6.9V l 460 µV VCM = –7.7V to 7.7V, S5, MS8, GN l 1.9 mV VCM = –7.7V to 7.7V, DC, DD, DHC l 2.5 mV Input Voltage Range Guaranteed by CMRR l –7.7 7.7 V PSRR Power Supply Rejection Ratio VS = ±1.1V to ±8V l 84 dB VOL Output Swing Low (Notes 6, 8) No Load l 60 mV ISINK = 100µA l 275 mV VOH Output Swing High (Note 6) No Load l 140 mV ISOURCE = 100µA l 400 mV ISC Short Circuit Current Short to GND l 1 mA IS Supply Current per Amplifier l 3 µA SR Slew Rate (Note 11) AV = –1, RF = RG = 1MΩ l 0.2 V/ms
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings –40°C to 85°C but are not tested or QA sampled at these temperatures. may cause permanent damage to the device. Exposure to any Absolute The LT6003I/LT6004I/LT6005I are guaranteed to meet specified Maximum Rating condition for extended periods may affect device performance from –40°C to 85°C. The LT6003H/LT6004H/LT6005H are reliability and lifetime. guaranteed to meet specified performance from –40°C to 125°C.
Note 2:
A heat sink may be required to keep the junction temperature
Note 5:
This parameter is not 100% tested. below absolute maximum. This depends on the power supply voltage and
Note 6:
Output voltage swings are measured between the output and how many amplifiers are shorted. The θJA specified for the DC, DD and power supply rails. DHC packages is with minimal PCB heat spreading metal. Using expanded
Note 7:
Limits are guaranteed by correlation to V metal area on all layers of a board reduces this value. S = 5V tests.
Note 8:
Limits are guaranteed by correlation to V
Note 3:
The LT6003C/LT6004C/LT6005C and LT6003I/LT6004I/LT6005I are S = 1.8V tests guaranteed functional over the temperature range of –40°C to 85°C. The
Note 9:
Limits are guaranteed by correlation to VS = ±8V tests LT6003H/LT6004H/LT6005H are guaranteed functional over the operating
Note 10:
Full-power bandwidth is calculated from the slew rate: temperature range of –40°C to 125°C. FPBW = SR/πVP-P.
Note 4:
The LT6003C/LT6004C/LT6005C are guaranteed to meet specified
Note 11:
Slew rate measured at VS = 1.8V, VOUT = 0.4V to 1.4V is used to performance from 0°C to 70°C. The LT6003C/LT6004C/LT6005C are guarantee by correlation the slew rate at VS = 5V, VOUT = 1V to 4V and the designed, characterized and expected to meet specified performance from slew rate at VS = ±8V, VOUT = –5V to 5V. 600345fd 7
