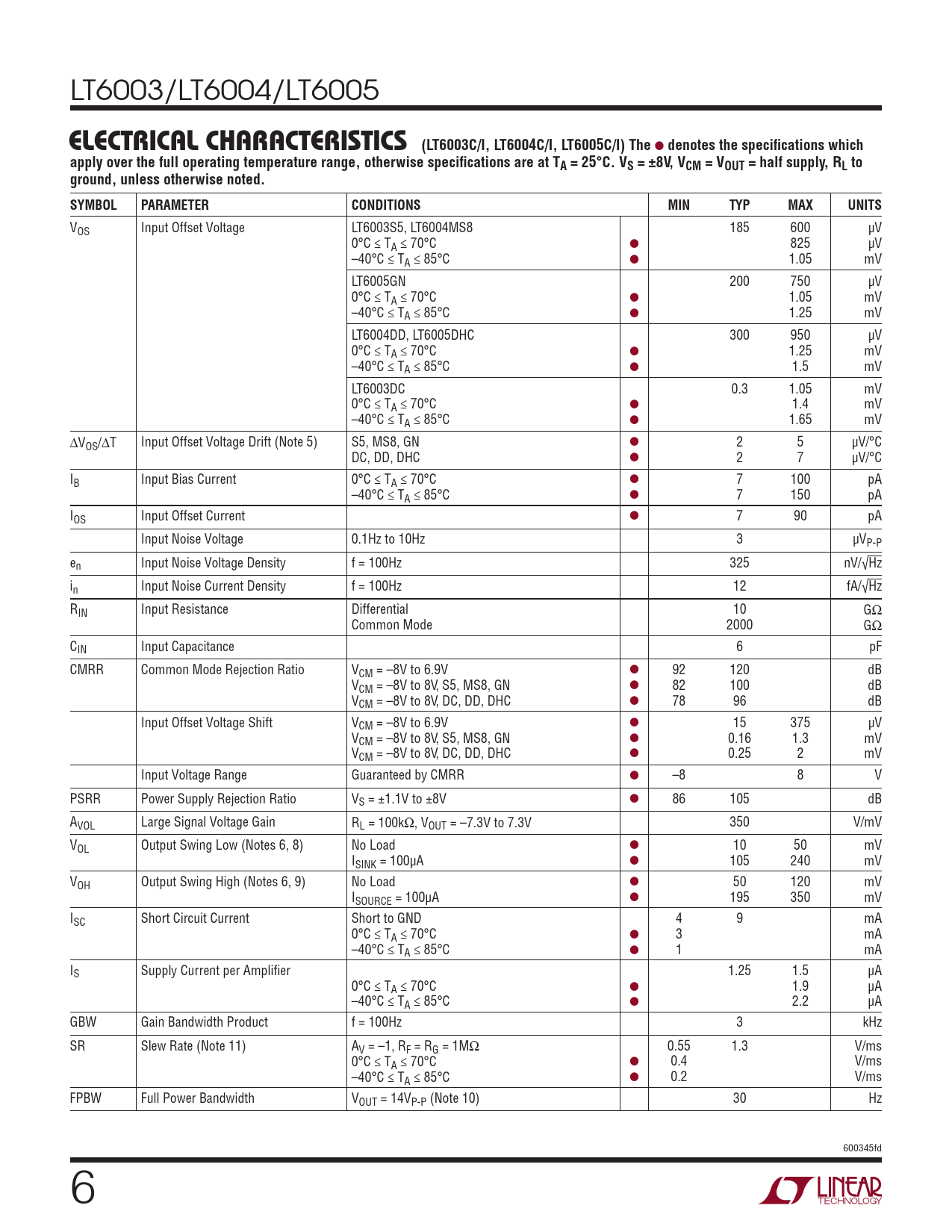

ELECTRICAL CHARACTERISTICS (LT6003C/I, LT6004C/I, LT6005C/I) The. denotes the specifications which
Línea de modelo para esta hoja de datos
- LT6003CDC#PBF LT6003CDC#TRMPBF LT6003CDC#TRPBF LT6003CS5#PBF LT6003CS5#TRMPBF LT6003CS5#TRPBF LT6003HDC#PBF LT6003HDC#TRMPBF LT6003HDC#TRPBF LT6003HS5#PBF LT6003HS5#TRMPBF LT6003HS5#TRPBF LT6003IDC#PBF LT6003IDC#TRMPBF LT6003IDC#TRPBF LT6003IS5#PBF LT6003IS5#TRMPBF LT6003IS5#TRPBF
Versión de texto del documento
LT6003/LT6004/LT6005
ELECTRICAL CHARACTERISTICS (LT6003C/I, LT6004C/I, LT6005C/I) The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VS = ±8V, VCM = VOUT = half supply, RL to ground, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage LT6003S5, LT6004MS8 185 600 µV 0°C ≤ TA ≤ 70°C l 825 µV –40°C ≤ TA ≤ 85°C l 1.05 mV LT6005GN 200 750 µV 0°C ≤ TA ≤ 70°C l 1.05 mV –40°C ≤ TA ≤ 85°C l 1.25 mV LT6004DD, LT6005DHC 300 950 µV 0°C ≤ TA ≤ 70°C l 1.25 mV –40°C ≤ TA ≤ 85°C l 1.5 mV LT6003DC 0.3 1.05 mV 0°C ≤ TA ≤ 70°C l 1.4 mV –40°C ≤ TA ≤ 85°C l 1.65 mV ΔVOS/ΔT Input Offset Voltage Drift (Note 5) S5, MS8, GN l 2 5 µV/°C DC, DD, DHC l 2 7 µV/°C IB Input Bias Current 0°C ≤ TA ≤ 70°C l 7 100 pA –40°C ≤ TA ≤ 85°C l 7 150 pA IOS Input Offset Current l 7 90 pA Input Noise Voltage 0.1Hz to 10Hz 3 µVP-P en Input Noise Voltage Density f = 100Hz 325 nV/√Hz in Input Noise Current Density f = 100Hz 12 fA/√Hz RIN Input Resistance Differential 10 GΩ Common Mode 2000 GΩ CIN Input Capacitance 6 pF CMRR Common Mode Rejection Ratio VCM = –8V to 6.9V l 92 120 dB VCM = –8V to 8V, S5, MS8, GN l 82 100 dB VCM = –8V to 8V, DC, DD, DHC l 78 96 dB Input Offset Voltage Shift VCM = –8V to 6.9V l 15 375 µV VCM = –8V to 8V, S5, MS8, GN l 0.16 1.3 mV VCM = –8V to 8V, DC, DD, DHC l 0.25 2 mV Input Voltage Range Guaranteed by CMRR l –8 8 V PSRR Power Supply Rejection Ratio VS = ±1.1V to ±8V l 86 105 dB AVOL Large Signal Voltage Gain RL = 100kΩ, VOUT = –7.3V to 7.3V 350 V/mV VOL Output Swing Low (Notes 6, 8) No Load l 10 50 mV ISINK = 100µA l 105 240 mV VOH Output Swing High (Notes 6, 9) No Load l 50 120 mV ISOURCE = 100µA l 195 350 mV ISC Short Circuit Current Short to GND 4 9 mA 0°C ≤ TA ≤ 70°C l 3 mA –40°C ≤ TA ≤ 85°C l 1 mA IS Supply Current per Amplifier 1.25 1.5 µA 0°C ≤ TA ≤ 70°C l 1.9 µA –40°C ≤ TA ≤ 85°C l 2.2 µA GBW Gain Bandwidth Product f = 100Hz 3 kHz SR Slew Rate (Note 11) AV = –1, RF = RG = 1MΩ 0.55 1.3 V/ms 0°C ≤ TA ≤ 70°C l 0.4 V/ms –40°C ≤ TA ≤ 85°C l 0.2 V/ms FPBW Full Power Bandwidth VOUT = 14VP-P (Note 10) 30 Hz 600345fd 6
