Datasheet ADR1500 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | 1.2875 V Micropower, Shunt Voltage Reference |
| Páginas / Página | 8 / 4 — ADR1500. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION |
| Formato / tamaño de archivo | PDF / 226 Kb |
| Idioma del documento | Inglés |

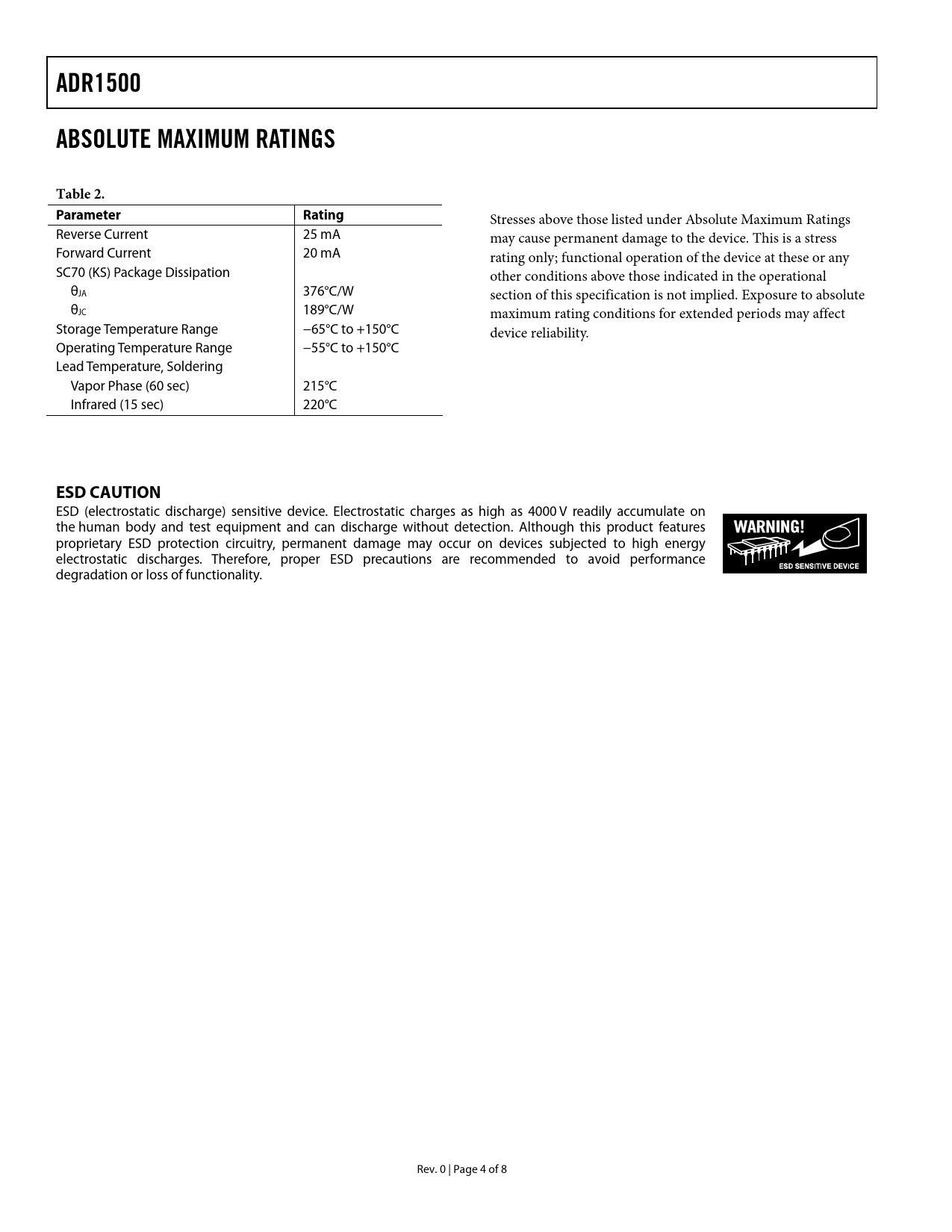

ADR1500. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADR1500 ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating
Stresses above those listed under Absolute Maximum Ratings Reverse Current 25 mA may cause permanent damage to the device. This is a stress Forward Current 20 mA rating only; functional operation of the device at these or any SC70 (KS) Package Dissipation other conditions above those indicated in the operational θJA 376°C/W section of this specification is not implied. Exposure to absolute θJC 189°C/W maximum rating conditions for extended periods may affect Storage Temperature Range −65°C to +150°C device reliability. Operating Temperature Range −55°C to +150°C Lead Temperature, Soldering Vapor Phase (60 sec) 215°C Infrared (15 sec) 220°C
ESD CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Rev. 0 | Page 4 of 8 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLYING THE ADR1500 TURN-ON TIME TRANSIENT RESPONSE OUTLINE DIMENSIONS ORDERING GUIDE
