Datasheet ADR1500 (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | 1.2875 V Micropower, Shunt Voltage Reference |
| Páginas / Página | 8 / 8 — ADR1500. OUTLINE DIMENSIONS. 2.20 2.00 1.80. 1.35 1.25 1.15. 2.40 2.10. … |
| Formato / tamaño de archivo | PDF / 226 Kb |
| Idioma del documento | Inglés |
ADR1500. OUTLINE DIMENSIONS. 2.20 2.00 1.80. 1.35 1.25 1.15. 2.40 2.10. 1.80. PIN 1. 0.65 BSC. 0.40. 1.00. 1.10. 0.10. 0.80. 0.30. 0.26. 0.20. 0.10 MAX
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 8
ADR1500 OUTLINE DIMENSIONS 2.20 2.00 1.80 1.35 1.25 1.15 3 2.40 2.10 1 2 1.80 PIN 1 0.65 BSC 0.40 1.00 1.10 0.10 0.80 0.80 0.30 0.40 0.26 0.20 0.10 MAX 0.25 SEATING 0.10 0.10 PLANE 0.10 COPLANARITY -0 05 ALL DIMENSIONS COMPLIANT WITH EIAJ SC70 1115

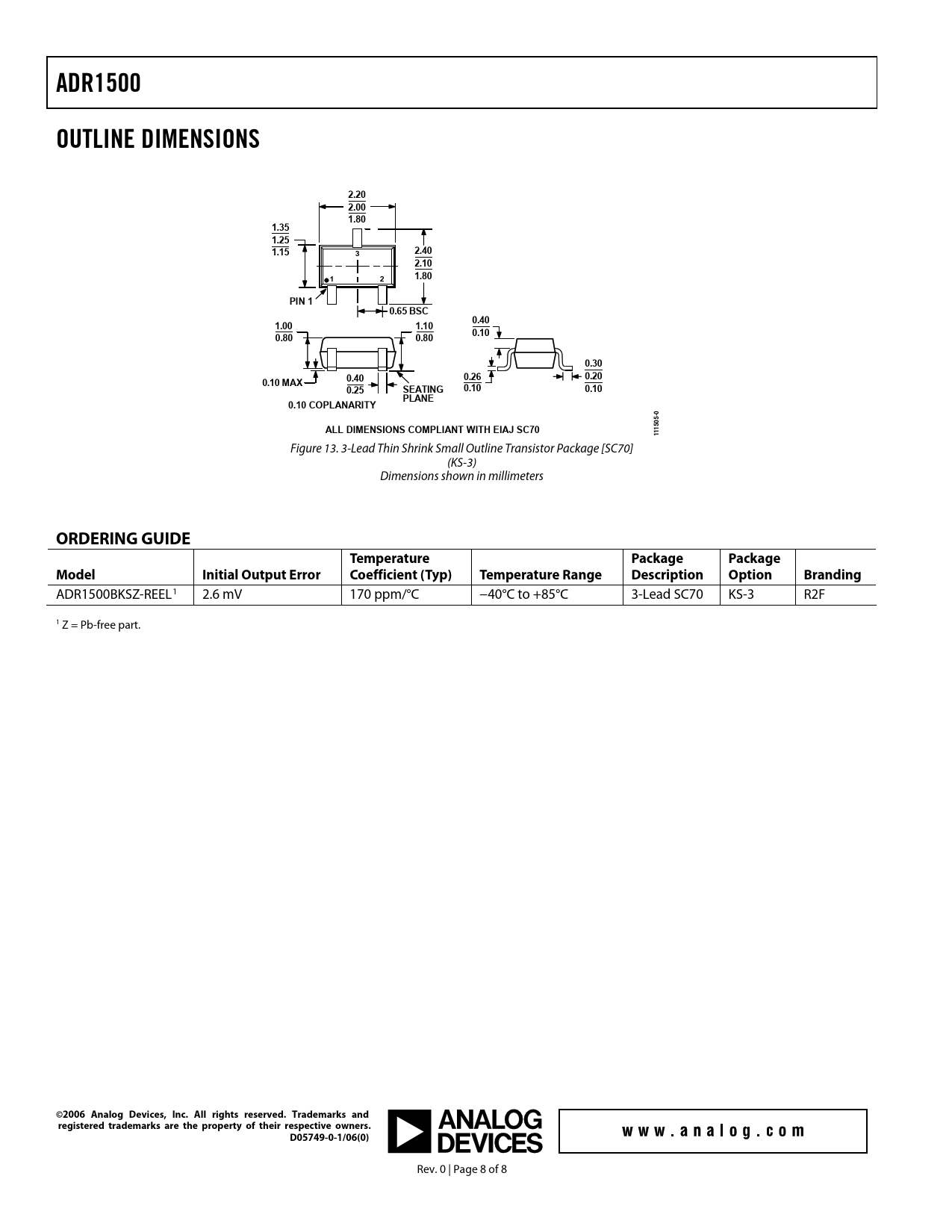

Figure 13. 3-Lead Thin Shrink Small Outline Transistor Package [SC70] (KS-3) Dimensions shown in millimeters
ORDERING GUIDE Temperature Package Package Model Initial Output Error Coefficient (Typ) Temperature Range Description Option Branding
ADR1500BKSZ-REEL1 2.6 mV 170 ppm/°C −40°C to +85°C 3-Lead SC70 KS-3 R2F 1 Z = Pb-free part.
