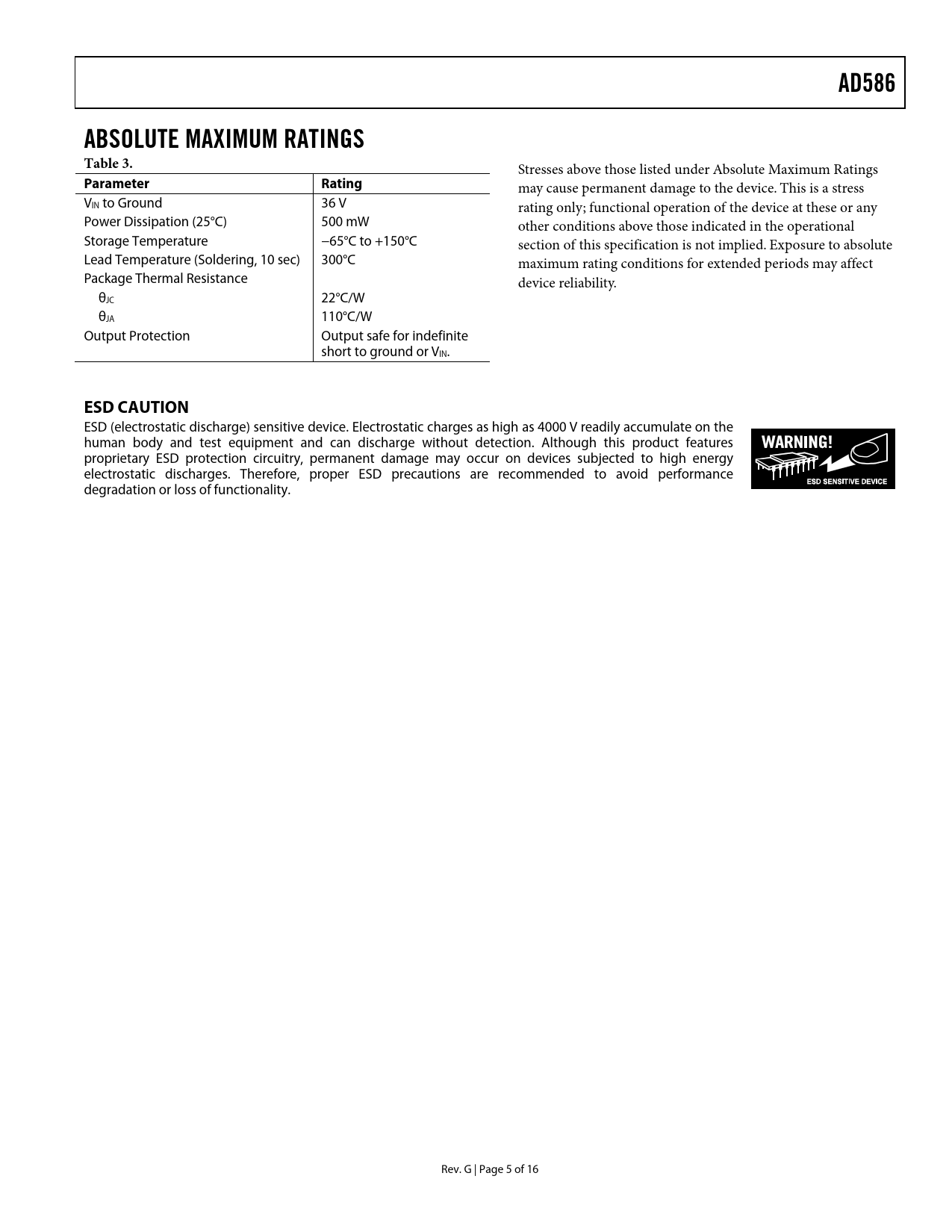

AD586. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD586 ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress VIN to Ground 36 V rating only; functional operation of the device at these or any Power Dissipation (25°C) 500 mW other conditions above those indicated in the operational Storage Temperature −65°C to +150°C section of this specification is not implied. Exposure to absolute Lead Temperature (Soldering, 10 sec) 300°C maximum rating conditions for extended periods may affect Package Thermal Resistance device reliability. θJC 22°C/W θJA 110°C/W Output Protection Output safe for indefinite short to ground or VIN.
ESD CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Rev. G | Page 5 of 16 Document Outline FEATURES GENERAL DESCRIPTION PRODUCT HIGHLIGHTS SPECIFICATIONS AD586J, AD586K/AD586A, AD586L/AD586B AD586M, AD586S, AD586T ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS THEORY OF OPERATION APPLYING THE AD586 NOISE PERFORMANCE AND REDUCTION TURN-ON TIME DYNAMIC PERFORMANCE LOAD REGULATION TEMPERATURE PERFORMANCE NEGATIVE REFERENCE VOLTAGE FROM AN AD586 USING THE AD586 WITH CONVERTERS 5 V REFERENCE WITH MULTIPLYINGCMOS DACs OR ADCs STACKED PRECISION REFERENCES FORMULTIPLE VOLTAGES PRECISION CURRENT SOURCE PRECISION HIGH CURRENT SUPPLY OUTLINE DIMENSIONS ORDERING GUIDE
