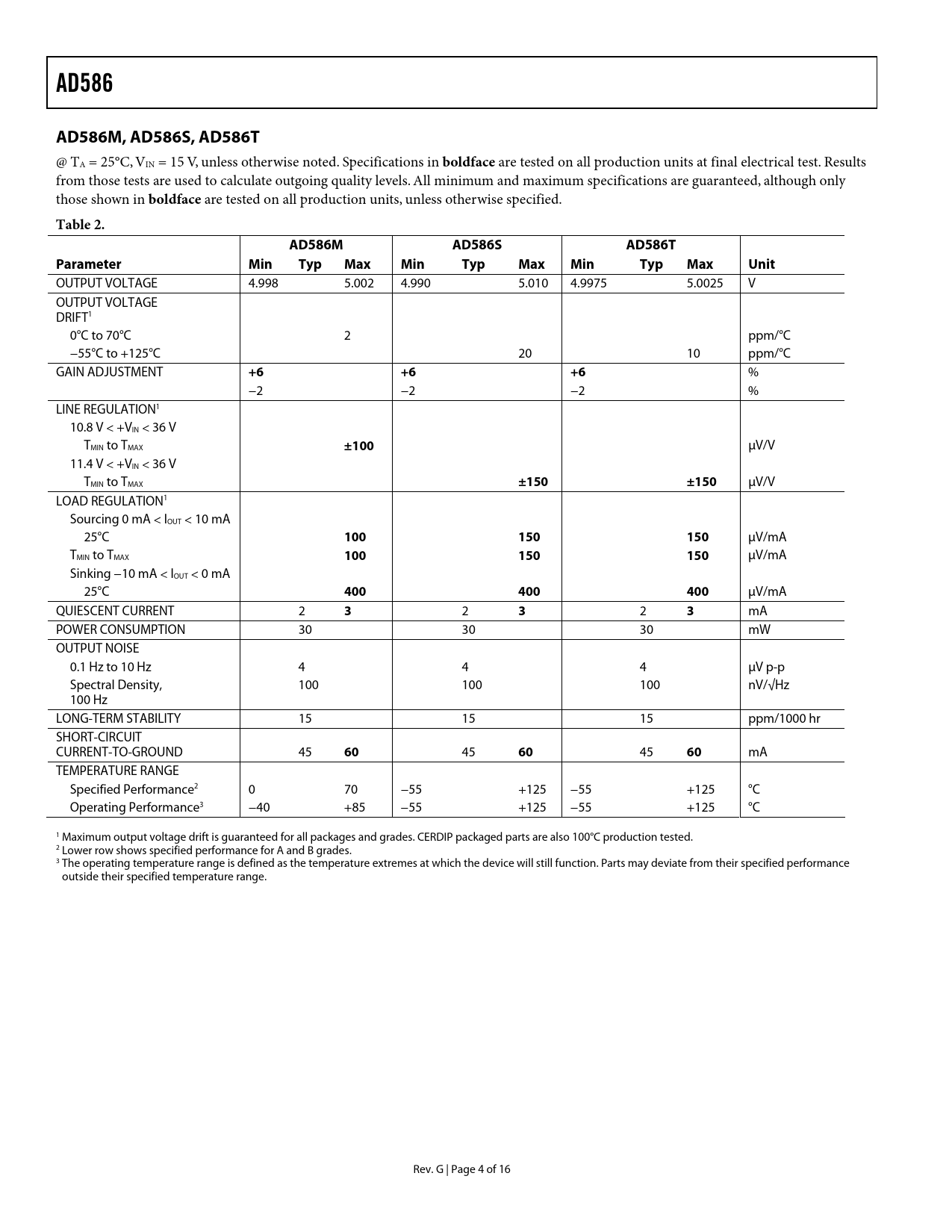

AD586 AD586M, AD586S, AD586T
@ TA = 25°C, VIN = 15 V, unless otherwise noted. Specifications in
boldface
are tested on all production units at final electrical test. Results from those tests are used to calculate outgoing quality levels. All minimum and maximum specifications are guaranteed, although only those shown in
boldface
are tested on all production units, unless otherwise specified.
Table 2. AD586M AD586S AD586T Parameter Min Typ Max Min Typ Max Min Typ Max Unit
OUTPUT VOLTAGE 4.998 5.002 4.990 5.010 4.9975 5.0025 V OUTPUT VOLTAGE DRIFT1 0°C to 70°C 2 ppm/°C −55°C to +125°C 20 10 ppm/°C GAIN ADJUSTMENT
+6 +6 +6
% −2 −2 −2 % LINE REGULATION1 10.8 V < +VIN < 36 V TMIN to TMAX
±100
µV/V 11.4 V < +VIN < 36 V TMIN to TMAX
±150 ±150
µV/V LOAD REGULATION1 Sourcing 0 mA < IOUT < 10 mA 25°C
100 150 150
µV/mA TMIN to TMAX
100 150 150
µV/mA Sinking −10 mA < IOUT < 0 mA 25°C
400 400 400
µV/mA QUIESCENT CURRENT 2
3
2
3
2
3
mA POWER CONSUMPTION 30 30 30 mW OUTPUT NOISE 0.1 Hz to 10 Hz 4 4 4 µV p-p Spectral Density, 100 100 100 nV/√Hz 100 Hz LONG-TERM STABILITY 15 15 15 ppm/1000 hr SHORT-CIRCUIT CURRENT-TO-GROUND 45
60
45
60
45
60
mA TEMPERATURE RANGE Specified Performance2 0 70 −55 +125 −55 +125 °C Operating Performance3 −40 +85 −55 +125 −55 +125 °C 1 Maximum output voltage drift is guaranteed for all packages and grades. CERDIP packaged parts are also 100°C production tested. 2 Lower row shows specified performance for A and B grades. 3 The operating temperature range is defined as the temperature extremes at which the device will still function. Parts may deviate from their specified performance outside their specified temperature range. Rev. G | Page 4 of 16 Document Outline FEATURES GENERAL DESCRIPTION PRODUCT HIGHLIGHTS SPECIFICATIONS AD586J, AD586K/AD586A, AD586L/AD586B AD586M, AD586S, AD586T ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS THEORY OF OPERATION APPLYING THE AD586 NOISE PERFORMANCE AND REDUCTION TURN-ON TIME DYNAMIC PERFORMANCE LOAD REGULATION TEMPERATURE PERFORMANCE NEGATIVE REFERENCE VOLTAGE FROM AN AD586 USING THE AD586 WITH CONVERTERS 5 V REFERENCE WITH MULTIPLYINGCMOS DACs OR ADCs STACKED PRECISION REFERENCES FORMULTIPLE VOLTAGES PRECISION CURRENT SOURCE PRECISION HIGH CURRENT SUPPLY OUTLINE DIMENSIONS ORDERING GUIDE
