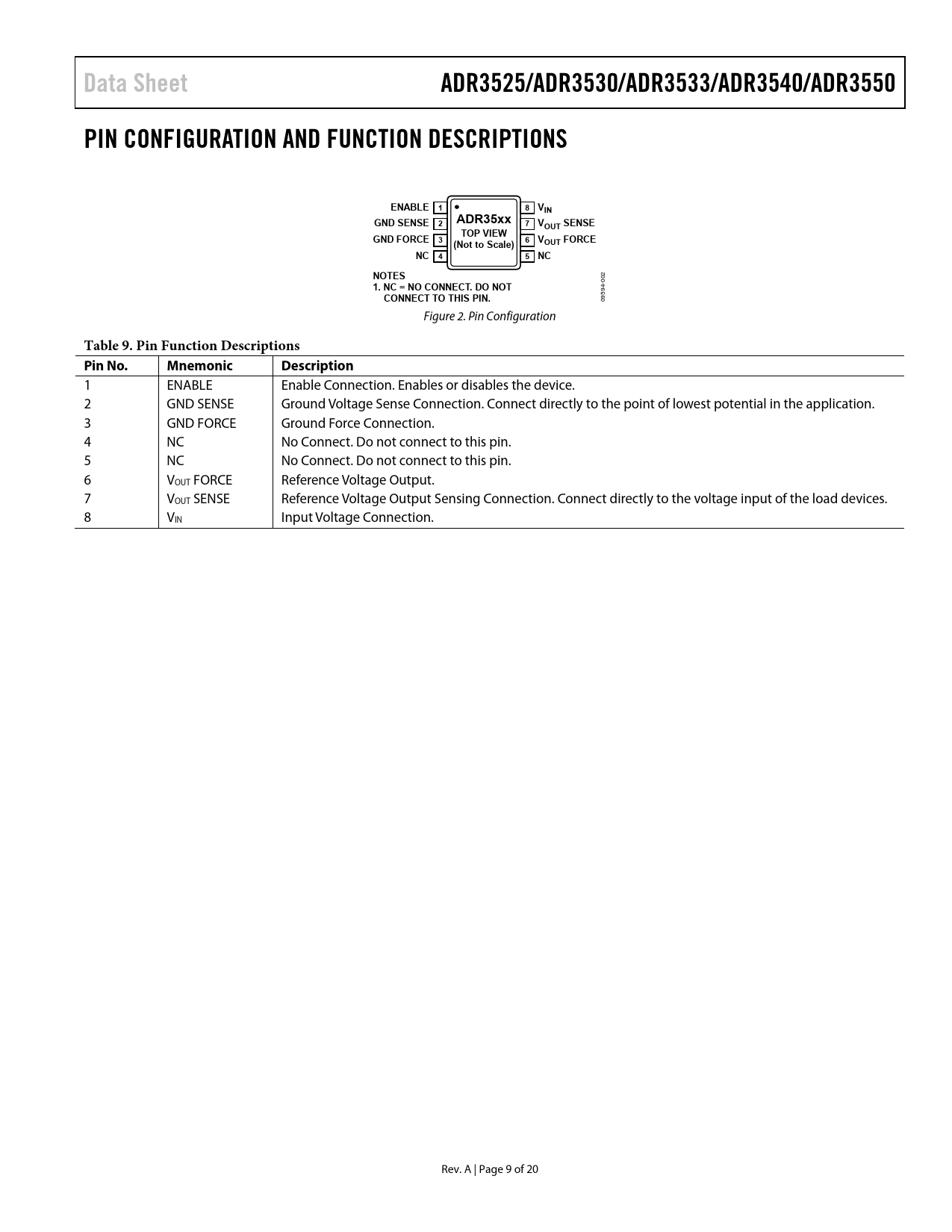

Data Sheet ADR3525/ADR3530/ADR3533/ADR3540/ADR3550 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS ENABLE 1 8 VIN GND SENSE ADR35xx 2 7 VOUT SENSE TOP VIEW GND FORCE 3 6 VOUT FORCE (Not to Scale) NC 4 5 NC NOTES
02 0
1. NC = NO CONNECT. DO NOT CONNECT TO THIS PIN.
09594- Figure 2. Pin Configuration
Table 9. Pin Function Descriptions Pin No. Mnemonic Description
1 ENABLE Enable Connection. Enables or disables the device. 2 GND SENSE Ground Voltage Sense Connection. Connect directly to the point of lowest potential in the application. 3 GND FORCE Ground Force Connection. 4 NC No Connect. Do not connect to this pin. 5 NC No Connect. Do not connect to this pin. 6 VOUT FORCE Reference Voltage Output. 7 VOUT SENSE Reference Voltage Output Sensing Connection. Connect directly to the voltage input of the load devices. 8 VIN Input Voltage Connection. Rev. A | Page 9 of 20 Document Outline Features Applications Pin Configuration General Description Revision History Specifications ADR3525 Electrical Characteristics ADR3530 Electrical Characteristics ADR3533 Electrical Characteristics ADR3540 Electrical Characteristics ADR3550 Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Terminology Theory of Operation Long-Term Output Voltage Drift Power Dissipation Applications Information Basic Voltage Reference Connection Input and Output Capacitors 4-Wire Kelvin Connections VIN Slew Rate Considerations Shutdown/Enable Feature Sample Applications Negative Reference Bipolar Output Reference Boosted Output Current Reference Outline Dimensions Ordering Guide Automotive Products
