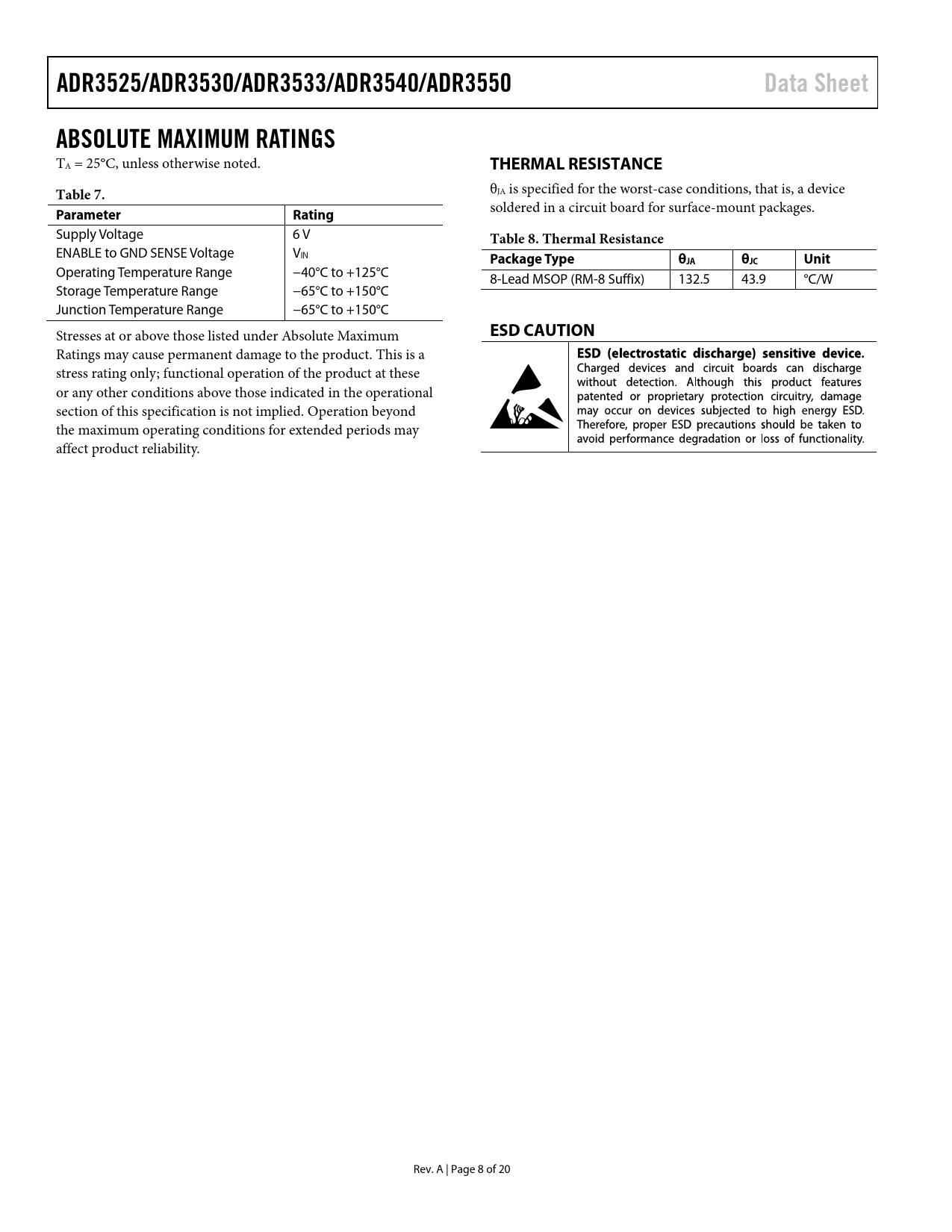

ADR3525/ADR3530/ADR3533/ADR3540/ADR3550 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
THERMAL RESISTANCE Table 7.
θJA is specified for the worst-case conditions, that is, a device soldered in a circuit board for surface-mount packages.
Parameter Rating
Supply Voltage 6 V
Table 8. Thermal Resistance
ENABLE to GND SENSE Voltage VIN
Package Type θJA θJC Unit
Operating Temperature Range −40°C to +125°C 8-Lead MSOP (RM-8 Suffix) 132.5 43.9 °C/W Storage Temperature Range −65°C to +150°C Junction Temperature Range −65°C to +150°C Stresses at or above those listed under Absolute Maximum
ESD CAUTION
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. A | Page 8 of 20 Document Outline Features Applications Pin Configuration General Description Revision History Specifications ADR3525 Electrical Characteristics ADR3530 Electrical Characteristics ADR3533 Electrical Characteristics ADR3540 Electrical Characteristics ADR3550 Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Terminology Theory of Operation Long-Term Output Voltage Drift Power Dissipation Applications Information Basic Voltage Reference Connection Input and Output Capacitors 4-Wire Kelvin Connections VIN Slew Rate Considerations Shutdown/Enable Feature Sample Applications Negative Reference Bipolar Output Reference Boosted Output Current Reference Outline Dimensions Ordering Guide Automotive Products
