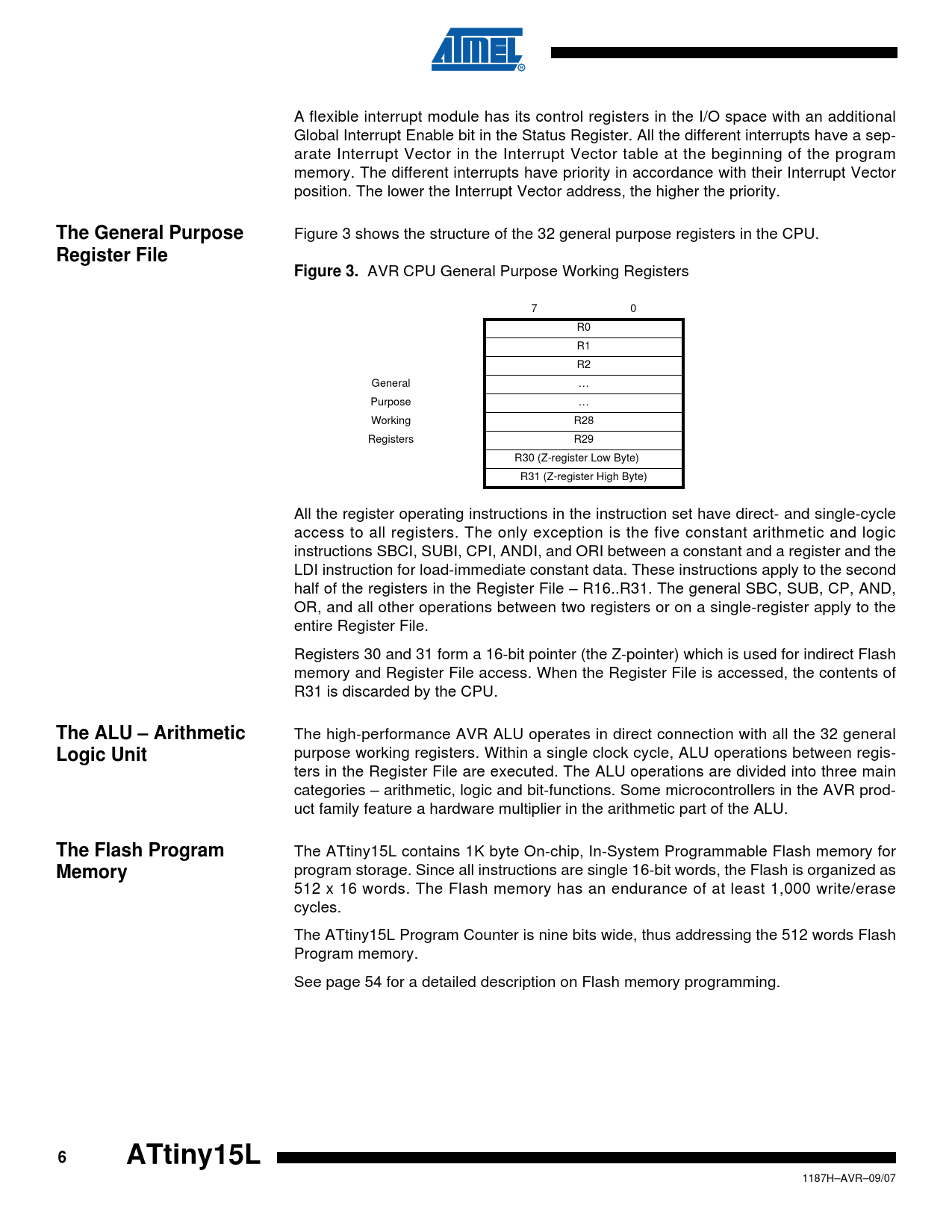

link to page 54 A flexible interrupt module has its control registers in the I/O space with an additional Global Interrupt Enable bit in the Status Register. All the different interrupts have a sep- arate Interrupt Vector in the Interrupt Vector table at the beginning of the program memory. The different interrupts have priority in accordance with their Interrupt Vector position. The lower the Interrupt Vector address, the higher the priority.
The General Purpose
Figure 3 shows the structure of the 32 general purpose registers in the CPU.
Register File Figure 3.
AVR CPU General Purpose Working Registers 7 0 R0 R1 R2 General … Purpose … Working R28 Registers R29 R30 (Z-register Low Byte)R3 R31 (Z-register High Byte) All the register operating instructions in the instruction set have direct- and single-cycle access to all registers. The only exception is the five constant arithmetic and logic instructions SBCI, SUBI, CPI, ANDI, and ORI between a constant and a register and the LDI instruction for load-immediate constant data. These instructions apply to the second half of the registers in the Register File – R16..R31. The general SBC, SUB, CP, AND, OR, and all other operations between two registers or on a single-register apply to the entire Register File. Registers 30 and 31 form a 16-bit pointer (the Z-pointer) which is used for indirect Flash memory and Register File access. When the Register File is accessed, the contents of R31 is discarded by the CPU.
The ALU – Arithmetic
The high-performance AVR ALU operates in direct connection with all the 32 general
Logic Unit
purpose working registers. Within a single clock cycle, ALU operations between regis- ters in the Register File are executed. The ALU operations are divided into three main categories – arithmetic, logic and bit-functions. Some microcontrollers in the AVR prod- uct family feature a hardware multiplier in the arithmetic part of the ALU.
The Flash Program
The ATtiny15L contains 1K byte On-chip, In-System Programmable Flash memory for
Memory
program storage. Since all instructions are single 16-bit words, the Flash is organized as 512 x 16 words. The Flash memory has an endurance of at least 1,000 write/erase cycles. The ATtiny15L Program Counter is nine bits wide, thus addressing the 512 words Flash Program memory. See page 54 for a detailed description on Flash memory programming.
