ATmega644 1.1 Disclaimer
Typical values contained in this datasheet are based on simulations and characterization of other AVR microcontrollers manufactured on the same process technology. Min and Max values will be available after the device is characterized.
2. Overview
The ATmega644 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega644 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

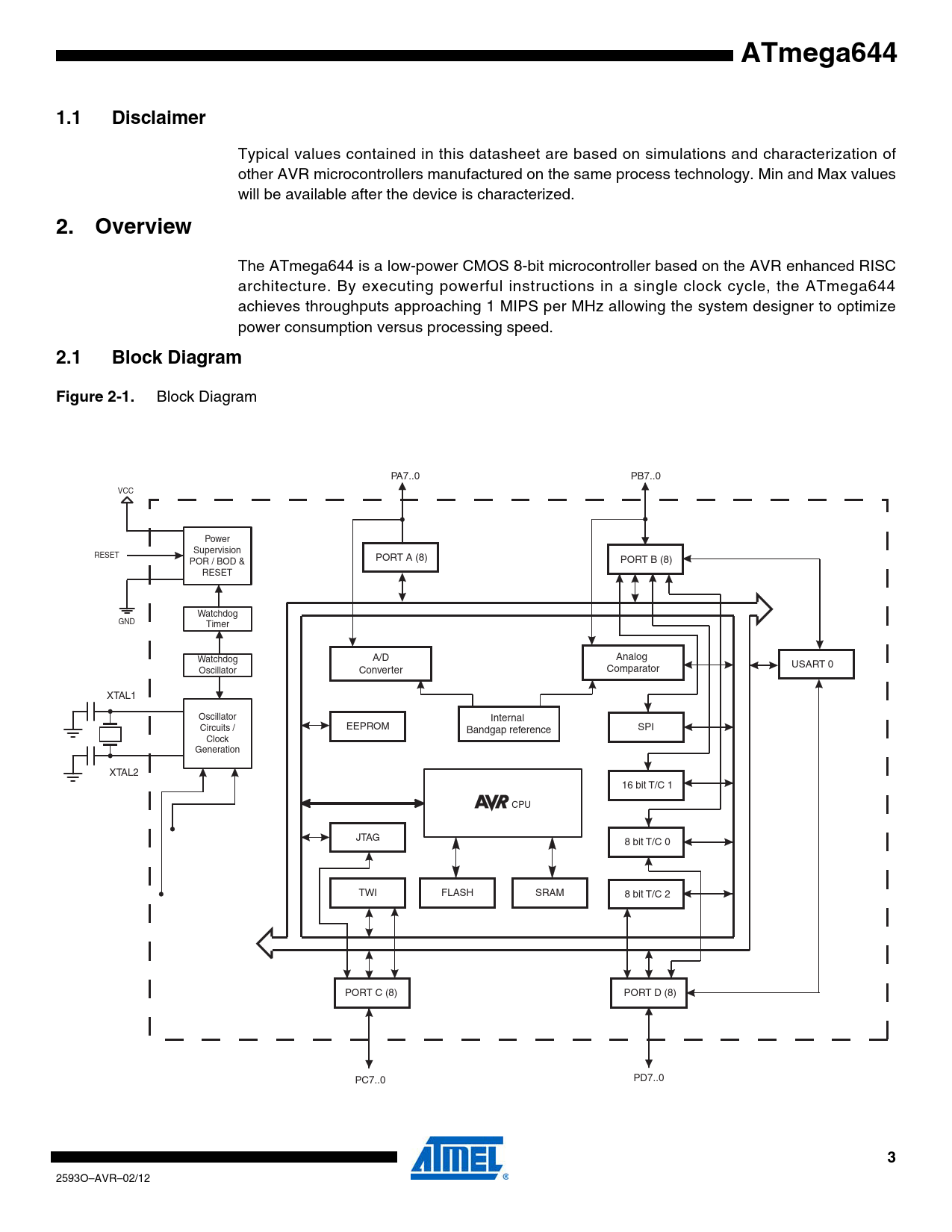

2.1 Block Diagram Figure 2-1.
Block Diagram PA7..0 PB7..0 VCC Power Supervision RESET POR / BOD & PORT A (8) PORT B (8) RESET Watchdog GND Timer Watchdog A/D Analog USART 0 Oscillator Converter Comparator XTAL1 Oscillator Internal Circuits / EEPROM SPI Bandgap reference Clock Generation XTAL2 16 bit T/C 1 CPU JTAG 8 bit T/C 0 TWI FLASH SRAM 8 bit T/C 2 PORT C (8) PORT D (8) PD7..0 PC7..0
3
