Datasheet ATmega163, ATmega163L - Summary (Atmel) - 7
| Fabricante | Atmel |
| Descripción | 8-bit AVR Microcontroller with 16K Bytes In-System Programmable Flash. Not Recommend for New Designs. Use ATmega16 |
| Páginas / Página | 18 / 7 — ATmega163(L). Register Summary (Continued). Address. Name. Bit 7. Bit 6. … |
| Formato / tamaño de archivo | PDF / 324 Kb |
| Idioma del documento | Inglés |

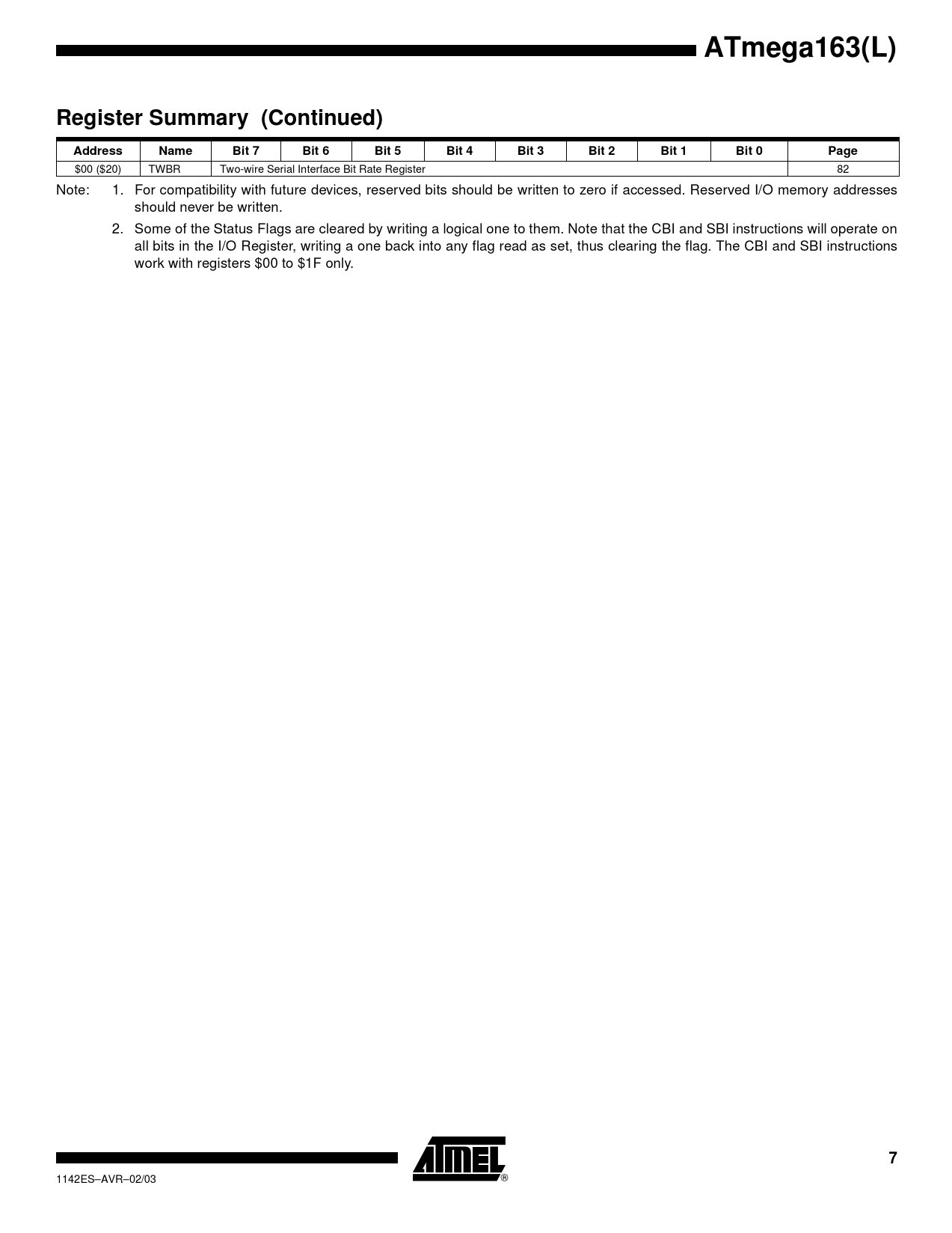

ATmega163(L). Register Summary (Continued). Address. Name. Bit 7. Bit 6. Bit 5. Bit 4. Bit 3. Bit 2. Bit 1. Bit 0. Page
Línea de modelo para esta hoja de datos
Versión de texto del documento
ATmega163(L) Register Summary (Continued) Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Page
$00 ($20) TWBR Two-wire Serial Interface Bit Rate Register 82 Note: 1. For compatibility with future devices, reserved bits should be written to zero if accessed. Reserved I/O memory addresses should never be written. 2. Some of the Status Flags are cleared by writing a logical one to them. Note that the CBI and SBI instructions will operate on all bits in the I/O Register, writing a one back into any flag read as set, thus clearing the flag. The CBI and SBI instructions work with registers $00 to $1F only.
7
1142ES–AVR–02/03 Document Outline Features Pin Configurations Description Block Diagram Pin Descriptions VCC GND Port A (PA7..PA0) Port B (PB7..PB0) Port C (PC7..PC0) Port D (PD7..PD0) RESET XTAL1 XTAL2 AVCC AREF AGND Register Summary Instruction Set Summary Ordering Information Packaging Information 44A 40P6 Erratas ATmega163(L) Errata Rev. F ChangeLog Changes from Rev. 1142C-09/01 to Rev. 1142D-09/02 Changes from Rev. 1142D-09/09 to Rev. 1142E-02/03
