Datasheet ATmega163, ATmega163L - Summary (Atmel)
| Fabricante | Atmel |
| Descripción | 8-bit AVR Microcontroller with 16K Bytes In-System Programmable Flash. Not Recommend for New Designs. Use ATmega16 |
| Páginas / Página | 18 / 1 — Features. High-performance, Low-power AVR. 8-bit Microcontroller |
| Formato / tamaño de archivo | PDF / 324 Kb |
| Idioma del documento | Inglés |

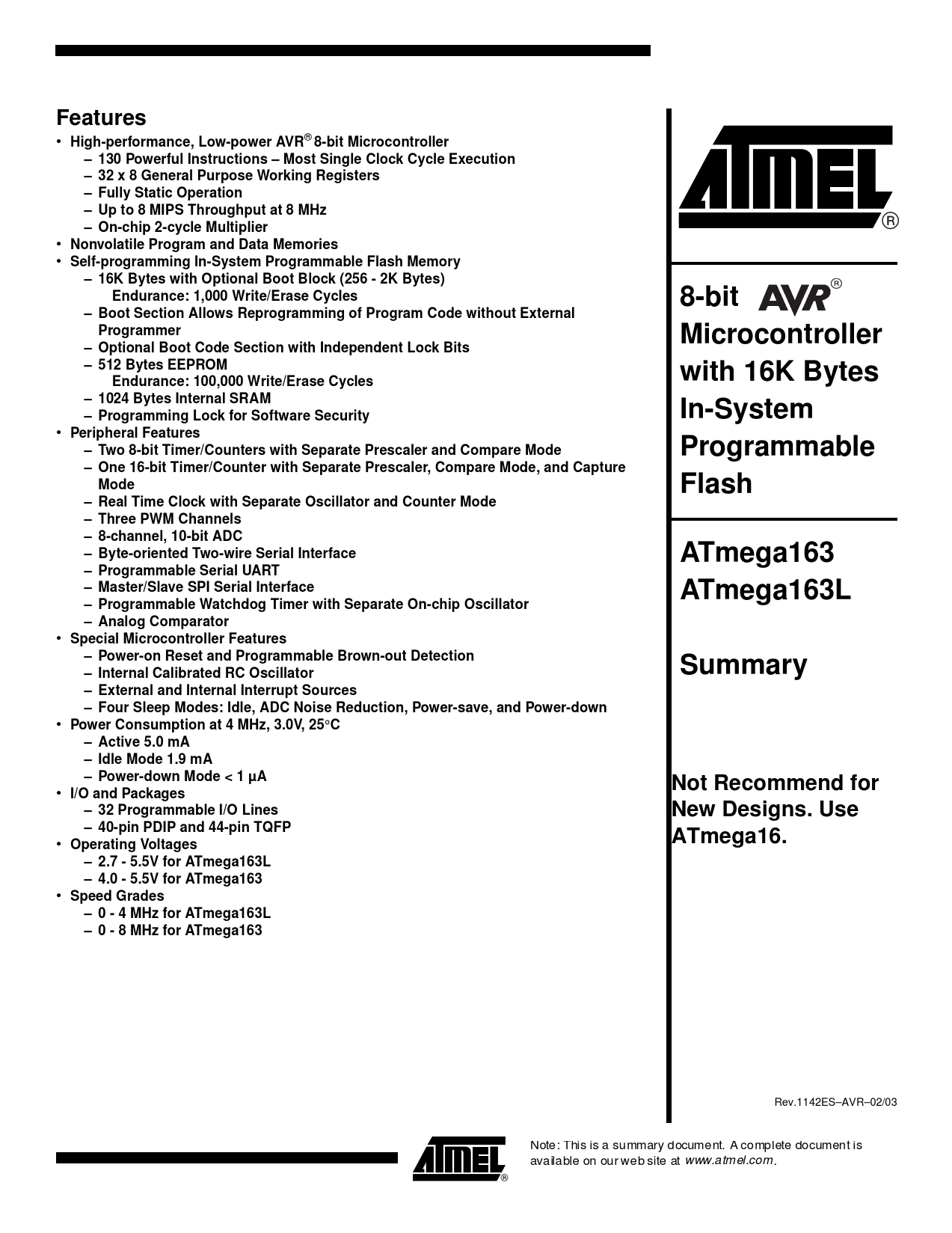

Features. High-performance, Low-power AVR. 8-bit Microcontroller
Línea de modelo para esta hoja de datos
Versión de texto del documento
Features
•
High-performance, Low-power AVR
®
8-bit Microcontroller – 130 Powerful Instructions – Most Single Clock Cycle Execution – 32 x 8 General Purpose Working Registers – Fully Static Operation – Up to 8 MIPS Throughput at 8 MHz – On-chip 2-cycle Multiplier
•
Nonvolatile Program and Data Memories
•
Self-programming In-System Programmable Flash Memory – 16K Bytes with Optional Boot Block (256 - 2K Bytes) Endurance: 1,000 Write/Erase Cycles 8-bit – Boot Section Allows Reprogramming of Program Code without External Programmer Microcontroller – Optional Boot Code Section with Independent Lock Bits – 512 Bytes EEPROM with 16K Bytes Endurance: 100,000 Write/Erase Cycles – 1024 Bytes Internal SRAM – Programming Lock for Software Security In-System
•
Peripheral Features – Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode Programmable – One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode Flash – Real Time Clock with Separate Oscillator and Counter Mode – Three PWM Channels – 8-channel, 10-bit ADC – Byte-oriented Two-wire Serial Interface ATmega163 – Programmable Serial UART – Master/Slave SPI Serial Interface ATmega163L – Programmable Watchdog Timer with Separate On-chip Oscillator – Analog Comparator
•
Special Microcontroller Features – Power-on Reset and Programmable Brown-out Detection Summary – Internal Calibrated RC Oscillator – External and Internal Interrupt Sources – Four Sleep Modes: Idle, ADC Noise Reduction, Power-save, and Power-down
•
Power Consumption at 4 MHz, 3.0V, 25
°
C – Active 5.0 mA – Idle Mode 1.9 mA – Power-down Mode < 1 µA Not Recommend for
•
I/O and Packages – 32 Programmable I/O Lines New Designs. Use – 40-pin PDIP and 44-pin TQFP ATmega16.
•
Operating Voltages – 2.7 - 5.5V for ATmega163L – 4.0 - 5.5V for ATmega163
•
Speed Grades – 0 - 4 MHz for ATmega163L – 0 - 8 MHz for ATmega163
Rev.1142ES–AVR–02/03 Note: This is a summary document. A complete document is available on our web site at www.atmel.com.
1
Document Outline Features Pin Configurations Description Block Diagram Pin Descriptions VCC GND Port A (PA7..PA0) Port B (PB7..PB0) Port C (PC7..PC0) Port D (PD7..PD0) RESET XTAL1 XTAL2 AVCC AREF AGND Register Summary Instruction Set Summary Ordering Information Packaging Information 44A 40P6 Erratas ATmega163(L) Errata Rev. F ChangeLog Changes from Rev. 1142C-09/01 to Rev. 1142D-09/02 Changes from Rev. 1142D-09/09 to Rev. 1142E-02/03
•
