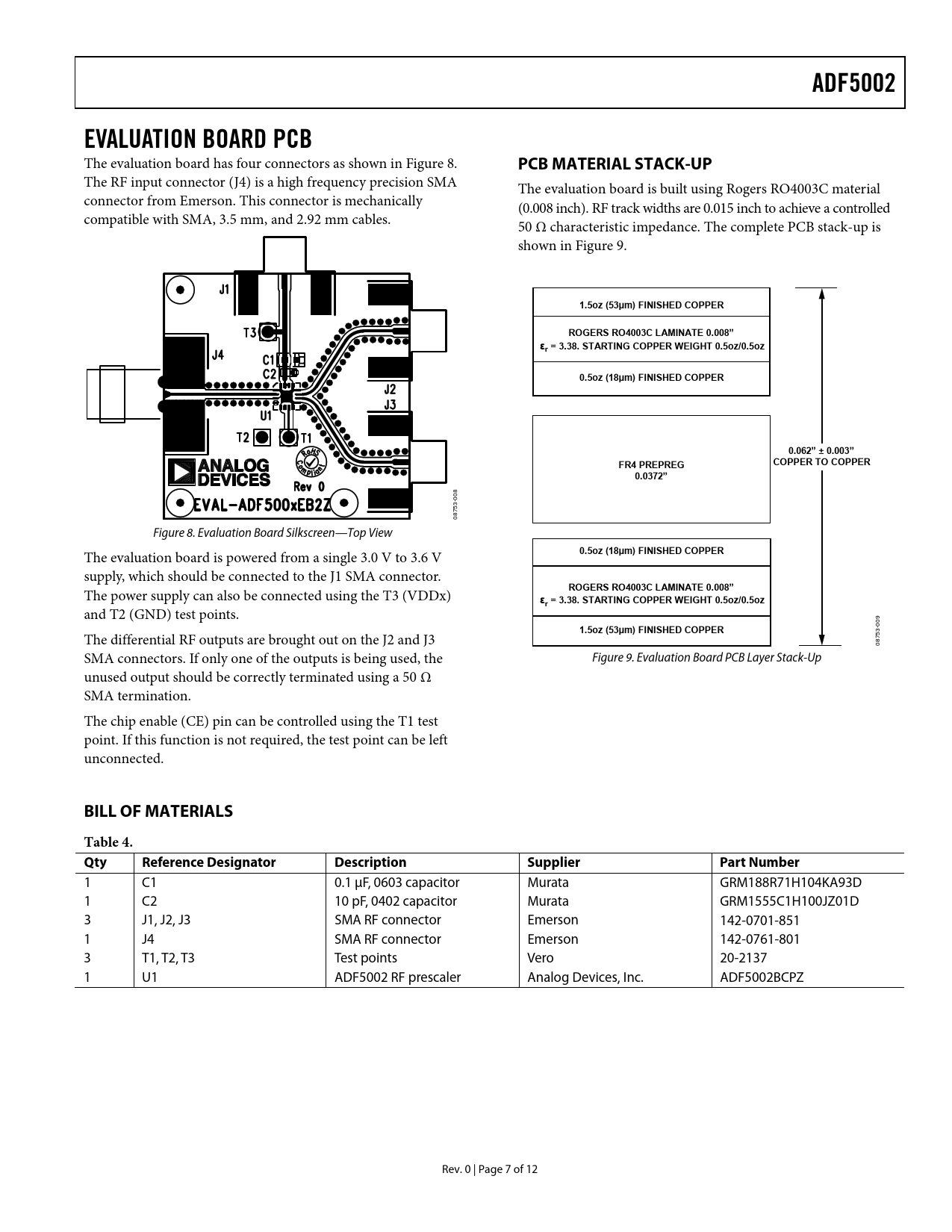

ADF5002 EVALUATION BOARD PCB
The evaluation board has four connectors as shown in Figure 8.
PCB MATERIAL STACK-UP
The RF input connector (J4) is a high frequency precision SMA The evaluation board is built using Rogers RO4003C material connector from Emerson. This connector is mechanically (0.008 inch). RF track widths are 0.015 inch to achieve a controlled compatible with SMA, 3.5 mm, and 2.92 mm cables. 50 Ω characteristic impedance. The complete PCB stack-up is shown in Figure 9.
1.5oz (53µm) FINISHED COPPER ROGERS RO4003C LAMINATE 0.008” εr = 3.38. STARTING COPPER WEIGHT 0.5oz/0.5oz 0.5oz (18µm) FINISHED COPPER 0.062” ± 0.003” FR4 PREPREG COPPER TO COPPER 0.0372”
8 0 0 3- 75 08 Figure 8. Evaluation Board Silkscreen—Top View
0.5oz (18µm) FINISHED COPPER
The evaluation board is powered from a single 3.0 V to 3.6 V supply, which should be connected to the J1 SMA connector.
ROGERS RO4003C LAMINATE 0.008”
The power supply can also be connected using the T3 (VDDx)
εr = 3.38. STARTING COPPER WEIGHT 0.5oz/0.5oz
and T2 (GND) test points. 9
1.5oz (53µm) FINISHED COPPER
-00 3 The differential RF outputs are brought out on the J2 and J3 75 08 SMA connectors. If only one of the outputs is being used, the Figure 9. Evaluation Board PCB Layer Stack-Up unused output should be correctly terminated using a 50 Ω SMA termination. The chip enable (CE) pin can be controlled using the T1 test point. If this function is not required, the test point can be left unconnected.
BILL OF MATERIALS Table 4. Qty Reference Designator Description Supplier Part Number
1 C1 0.1 μF, 0603 capacitor Murata GRM188R71H104KA93D 1 C2 10 pF, 0402 capacitor Murata GRM1555C1H100JZ01D 3 J1, J2, J3 SMA RF connector Emerson 142-0701-851 1 J4 SMA RF connector Emerson 142-0761-801 3 T1, T2, T3 Test points Vero 20-2137 1 U1 ADF5002 RF prescaler Analog Devices, Inc. ADF5002BCPZ Rev. 0 | Page 7 of 12 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS EVALUATION BOARD PCB PCB MATERIAL STACK-UP BILL OF MATERIALS APPLICATION CIRCUIT OUTLINE DIMENSIONS ORDERING GUIDE
