Datasheet ADF5002 (Analog Devices)
Fabricante | Analog Devices |
Descripción | 4 GHz TO 18 GHz Divide-by-8 Prescaler |
Páginas / Página | 12 / 1 — 4 GHz to 18 GHz. Divide-by-8 Prescaler. ADF5002. FEATURES. FUNCTIONAL … |
Formato / tamaño de archivo | PDF / 252 Kb |
Idioma del documento | Inglés |

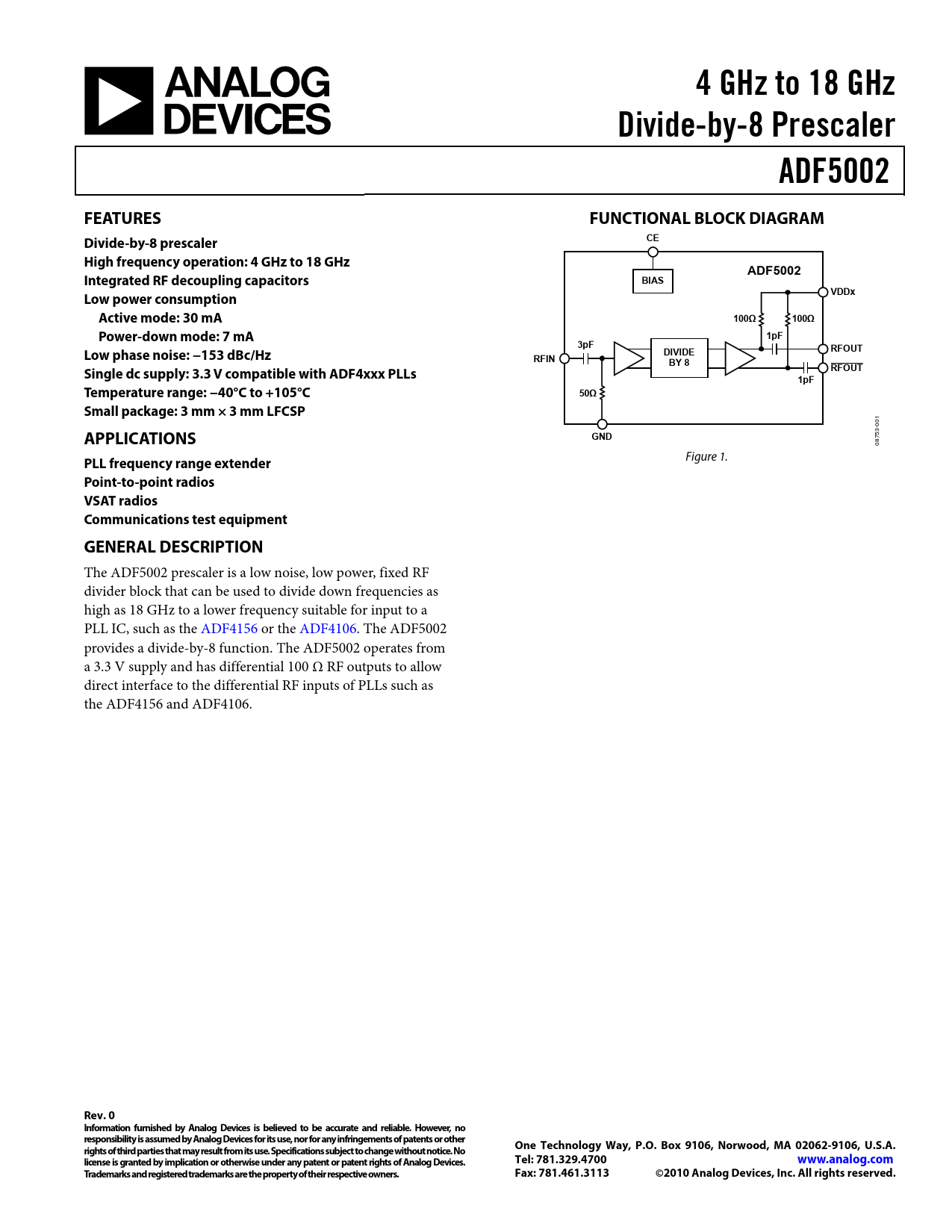

4 GHz to 18 GHz. Divide-by-8 Prescaler. ADF5002. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Línea de modelo para esta hoja de datos
Versión de texto del documento
4 GHz to 18 GHz Divide-by-8 Prescaler ADF5002 FEATURES FUNCTIONAL BLOCK DIAGRAM CE Divide-by-8 prescaler High frequency operation: 4 GHz to 18 GHz ADF5002 Integrated RF decoupling capacitors BIAS VDDx Low power consumption Active mode: 30 mA 100Ω 100Ω Power-down mode: 7 mA 1pF 3pF RFOUT Low phase noise: −153 dBc/Hz DIVIDE RFIN BY 8 RFOUT Single dc supply: 3.3 V compatible with ADF4xxx PLLs 1pF Temperature range: −40°C to +105°C 50Ω Small package: 3 mm × 3 mm LFCSP
01 0 3-
APPLICATIONS GND
75 08 Figure 1.
PLL frequency range extender Point-to-point radios VSAT radios Communications test equipment GENERAL DESCRIPTION
The ADF5002 prescaler is a low noise, low power, fixed RF divider block that can be used to divide down frequencies as high as 18 GHz to a lower frequency suitable for input to a PLL IC, such as the ADF4156 or the ADF4106. The ADF5002 provides a divide-by-8 function. The ADF5002 operates from a 3.3 V supply and has differential 100 Ω RF outputs to allow direct interface to the differential RF inputs of PLLs such as the ADF4156 and ADF4106.
Rev. 0 Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2010 Analog Devices, Inc. All rights reserved.
Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS EVALUATION BOARD PCB PCB MATERIAL STACK-UP BILL OF MATERIALS APPLICATION CIRCUIT OUTLINE DIMENSIONS ORDERING GUIDE
