HMC543ALC4B. 22.5° MMIC 4-BIT DIGITAL. PHASE SHIFTER, 8 - 12 GHz. Outline Drawing. Package Information
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC543ALC4B
v06.0316

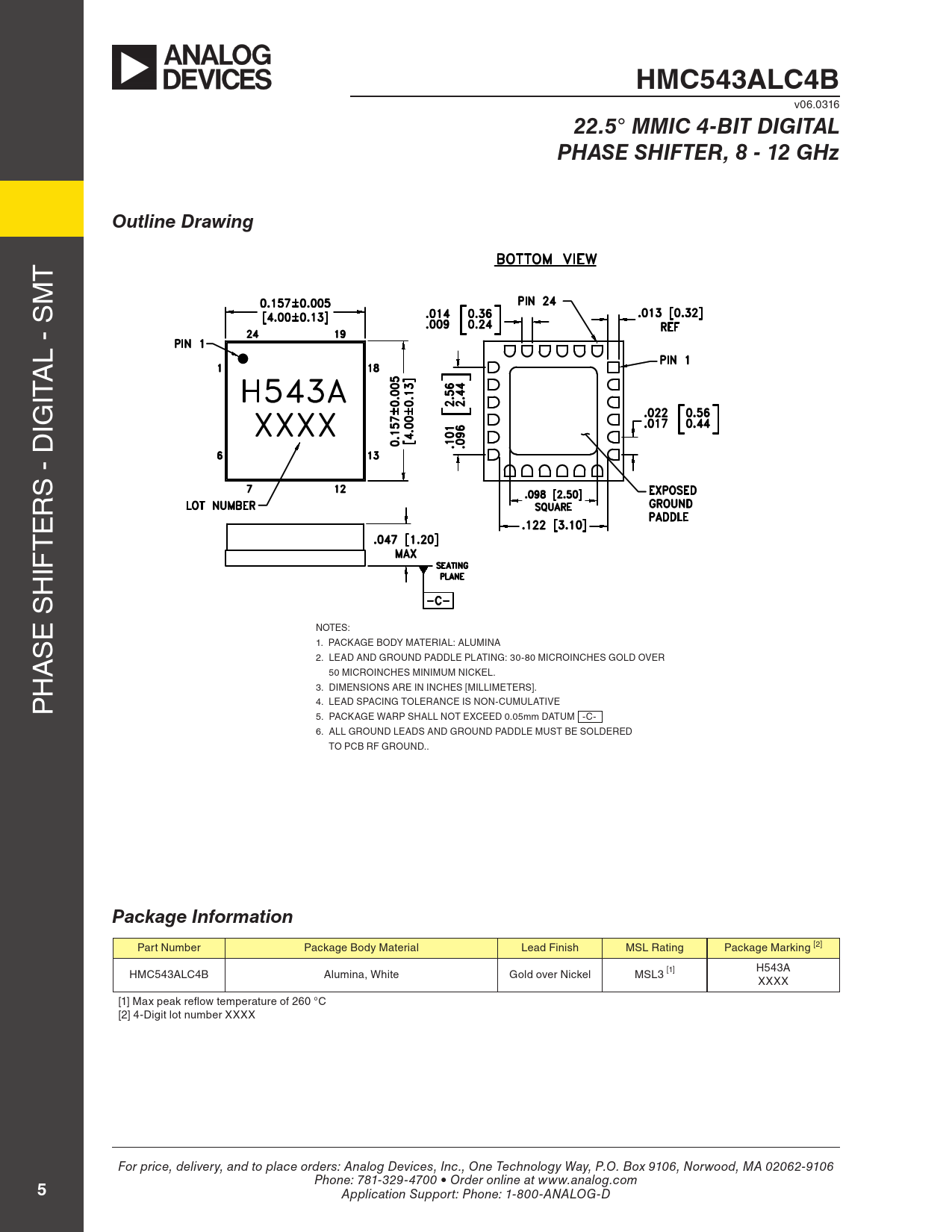

22.5° MMIC 4-BIT DIGITAL PHASE SHIFTER, 8 - 12 GHz Outline Drawing
T M L - S ITA IG S - D R E T IF H E S NOTES: S 1. PACKAGE BODY MATERIAL: ALUMINA A 2. LEAD AND GROUND PADDLE PLATING: 30-80 MICROINCHES GOLD OVER H 50 MICROINCHES MINIMUM NICKEL. 3. DIMENSIONS ARE IN INCHES [MILLIMETERS]. P 4. LEAD SPACING TOLERANCE IS NON-CUMULATIVE 5. PACKAGE WARP SHALL NOT EXCEED 0.05mm DATUM -C- 6. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED TO PCB RF GROUND..
Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking [2] HMC543ALC4B Alumina, White Gold over Nickel MSL3 [1] H543A XXXX [1] Max peak reflow temperature of 260 °C [2] 4-Digit lot number XXXX For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
5
Application Support: Phone: 1-800-ANALOG-D
