Datasheet OP249 (Analog Devices) - 3

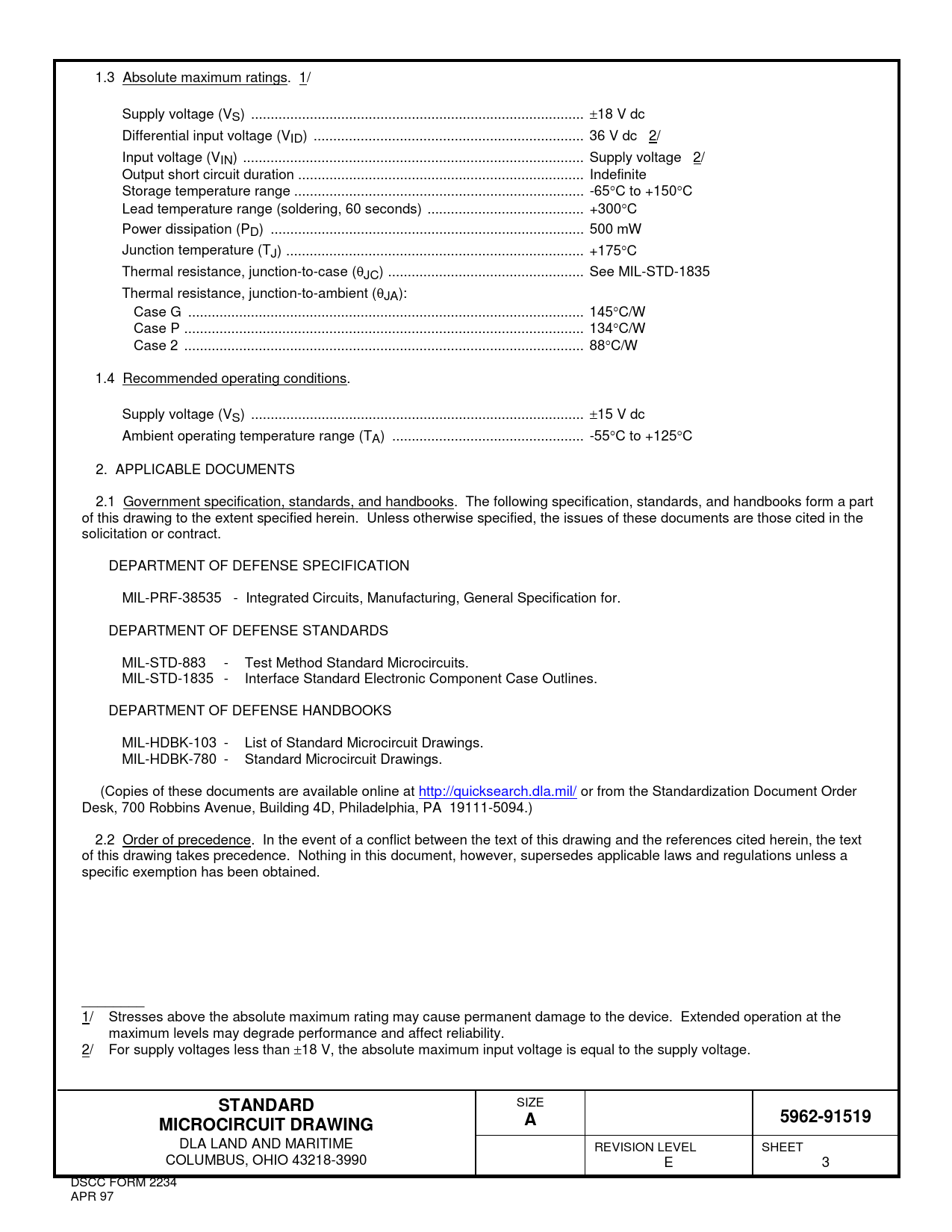

1.3 Absolute maximum ratings. 1/ Supply voltage (VS) ... ±18 V dc Differential input voltage (VID) ... 36 V dc 2/ Input voltage (VIN) ... Supply voltage 2/ Output short circuit duration ... Indefinite Storage temperature range .. -65°C to +150°C Lead temperature range (soldering, 60 seconds) .. +300°C Power dissipation (PD) .. 500 mW Junction temperature (TJ) .. +175°C Thermal resistance, junction-to-case (θJC) .. See MIL-STD-1835 Thermal resistance, junction-to-ambient (θJA): Case G ... 145°C/W Case P .. 134°C/W Case 2 .. 88°C/W 1.4 Recommended operating conditions. Supply voltage (VS) ... ±15 V dc Ambient operating temperature range (TA) ... -55°C to +125°C 2. APPLICABLE DOCUMENTS 2.1 Government specification, standards, and handbooks. The following specification, standards, and handbooks form a part of this drawing to the extent specified herein. Unless otherwise specified, the issues of these documents are those cited in the solicitation or contract. DEPARTMENT OF DEFENSE SPECIFICATION MIL-PRF-38535 - Integrated Circuits, Manufacturing, General Specification for. DEPARTMENT OF DEFENSE STANDARDS MIL-STD-883 - Test Method Standard Microcircuits. MIL-STD-1835 - Interface Standard Electronic Component Case Outlines. DEPARTMENT OF DEFENSE HANDBOOKS MIL-HDBK-103 - List of Standard Microcircuit Drawings. MIL-HDBK-780 - Standard Microcircuit Drawings. (Copies of these documents are available online at http://quicksearch.dla.mil/ or from the Standardization Document Order Desk, 700 Robbins Avenue, Building 4D, Philadelphia, PA 19111-5094.) 2.2 Order of precedence. In the event of a conflict between the text of this drawing and the references cited herein, the text of this drawing takes precedence. Nothing in this document, however, supersedes applicable laws and regulations unless a specific exemption has been obtained. ________ 1/ Stresses above the absolute maximum rating may cause permanent damage to the device. Extended operation at the maximum levels may degrade performance and affect reliability. 2/ For supply voltages less than ±18 V, the absolute maximum input voltage is equal to the supply voltage.
STANDARD
SIZE
5962-91519 MICROCIRCUIT DRAWING A
DLA LAND AND MARITIME REVISION LEVEL SHEET COLUMBUS, OHIO 43218-3990 E 3 DSCC FORM 2234 APR 97 Document Outline DEPARTMENT OF DEFENSE SPECIFICATION DEPARTMENT OF DEFENSE STANDARDS
