Datasheet OP249 (Analog Devices) - 5

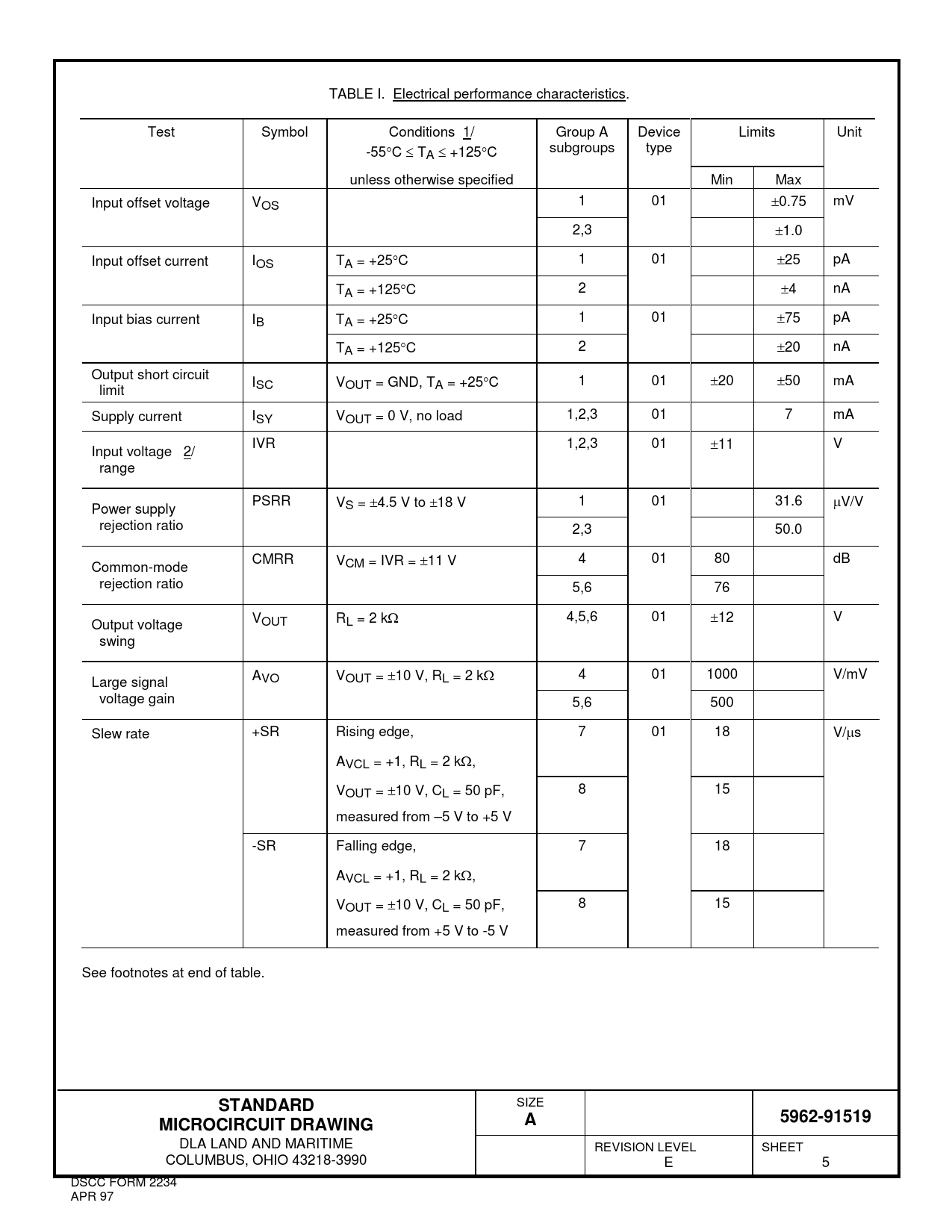

TABLE I. Electrical performance characteristics. Test Symbol Conditions 1/ Group A Device Limits Unit -55°C ≤ T subgroups type A ≤ +125°C unless otherwise specified Min Max Input offset voltage VOS 1 01 ±0.75 mV 2,3 ±1.0 Input offset current IOS TA = +25°C 1 01 ±25 pA TA = +125°C 2 ±4 nA Input bias current IB TA = +25°C 1 01 ±75 pA TA = +125°C 2 ±20 nA Output short circuit I limit SC VOUT = GND, TA = +25°C 1 01 ±20 ±50 mA Supply current ISY VOUT = 0 V, no load 1,2,3 01 7 mA IVR 1,2,3 01 ±11 V Input voltage 2/ range PSRR V Power supply S = ±4.5 V to ±18 V 1 01 31.6 µV/V rejection ratio 2,3 50.0 CMRR V Common-mode CM = IVR = ±11 V 4 01 80 dB rejection ratio 5,6 76 V Output voltage OUT RL = 2 kΩ 4,5,6 01 ±12 V swing A Large signal VO VOUT = ±10 V, RL = 2 kΩ 4 01 1000 V/mV voltage gain 5,6 500 Slew rate +SR Rising edge, 7 01 18 V/µs AVCL = +1, RL = 2 kΩ, VOUT = ±10 V, CL = 50 pF, 8 15 measured from –5 V to +5 V -SR Falling edge, 7 18 AVCL = +1, RL = 2 kΩ, VOUT = ±10 V, CL = 50 pF, 8 15 measured from +5 V to -5 V See footnotes at end of table.
STANDARD
SIZE
5962-91519 MICROCIRCUIT DRAWING A
DLA LAND AND MARITIME REVISION LEVEL SHEET COLUMBUS, OHIO 43218-3990 E 5 DSCC FORM 2234 APR 97 Document Outline DEPARTMENT OF DEFENSE SPECIFICATION DEPARTMENT OF DEFENSE STANDARDS
