OP284CHIPS. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento

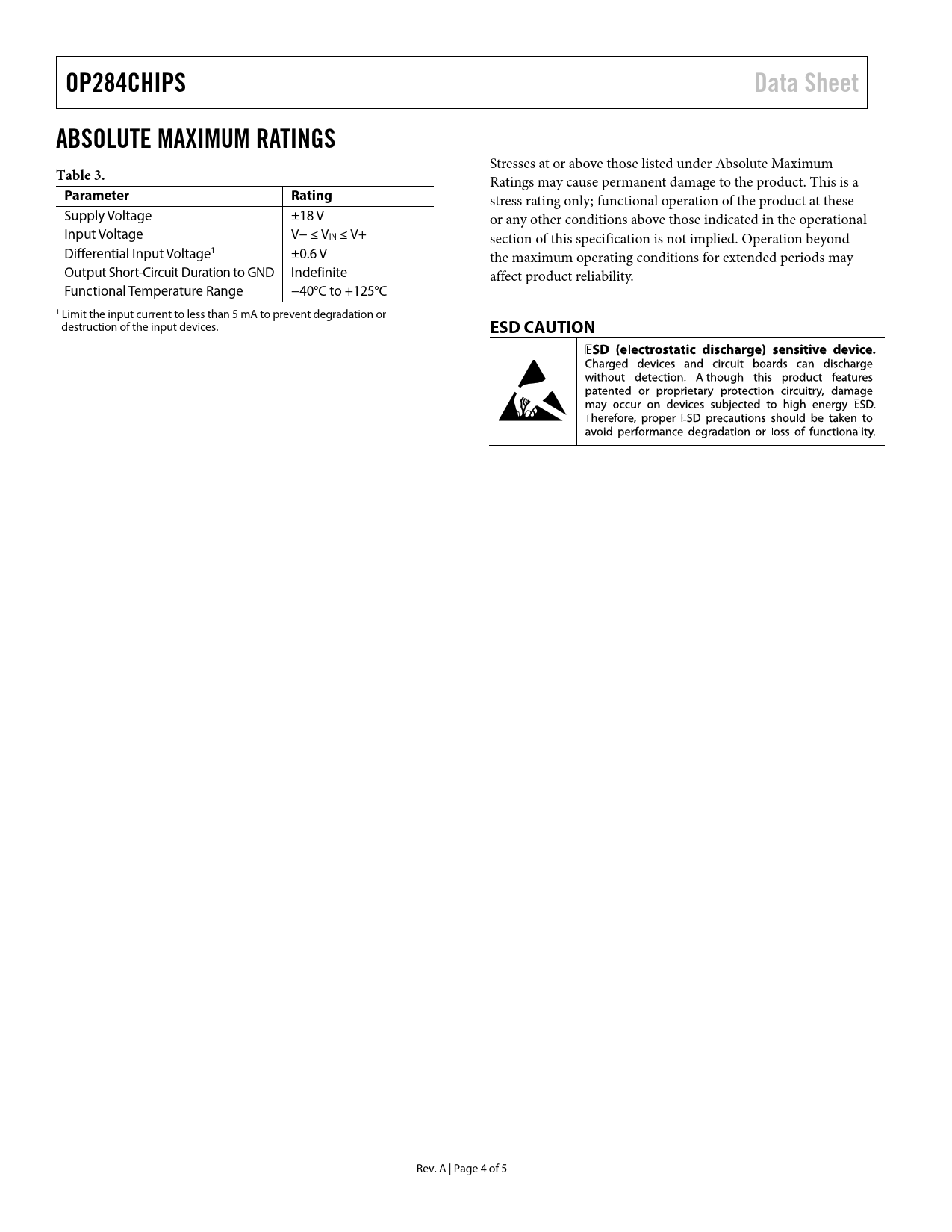

OP284CHIPS Data Sheet ABSOLUTE MAXIMUM RATINGS
Stresses at or above those listed under Absolute Maximum
Table 3.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these Supply Voltage ±18 V or any other conditions above those indicated in the operational Input Voltage V− ≤ VIN ≤ V+ section of this specification is not implied. Operation beyond Differential Input Voltage1 ±0.6 V the maximum operating conditions for extended periods may Output Short-Circuit Duration to GND Indefinite affect product reliability. Functional Temperature Range −40°C to +125°C 1 Limit the input current to less than 5 mA to prevent degradation or destruction of the input devices.
ESD CAUTION
Rev. A | Page 4 of 5 Document Outline FEATURES GENERAL DESCRIPTION OP284 CHIP DIMENSIONS AND PAD LAYOUT TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS, VSY = ±15.0 V ABSOLUTE MAXIMUM RATINGS ESD CAUTION OUTLINE DIMENSIONS DIE PAD DESCRIPTIONS ORDERING GUIDE
