Datasheet OP284CHIPS (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | Precision Rail-to-Rail Input and Output Operational Amplifier |
| Páginas / Página | 5 / 1 — Precision Rail-to-Rail. Input and Output Operational Amplifier. Data … |
| Formato / tamaño de archivo | PDF / 245 Kb |
| Idioma del documento | Inglés |

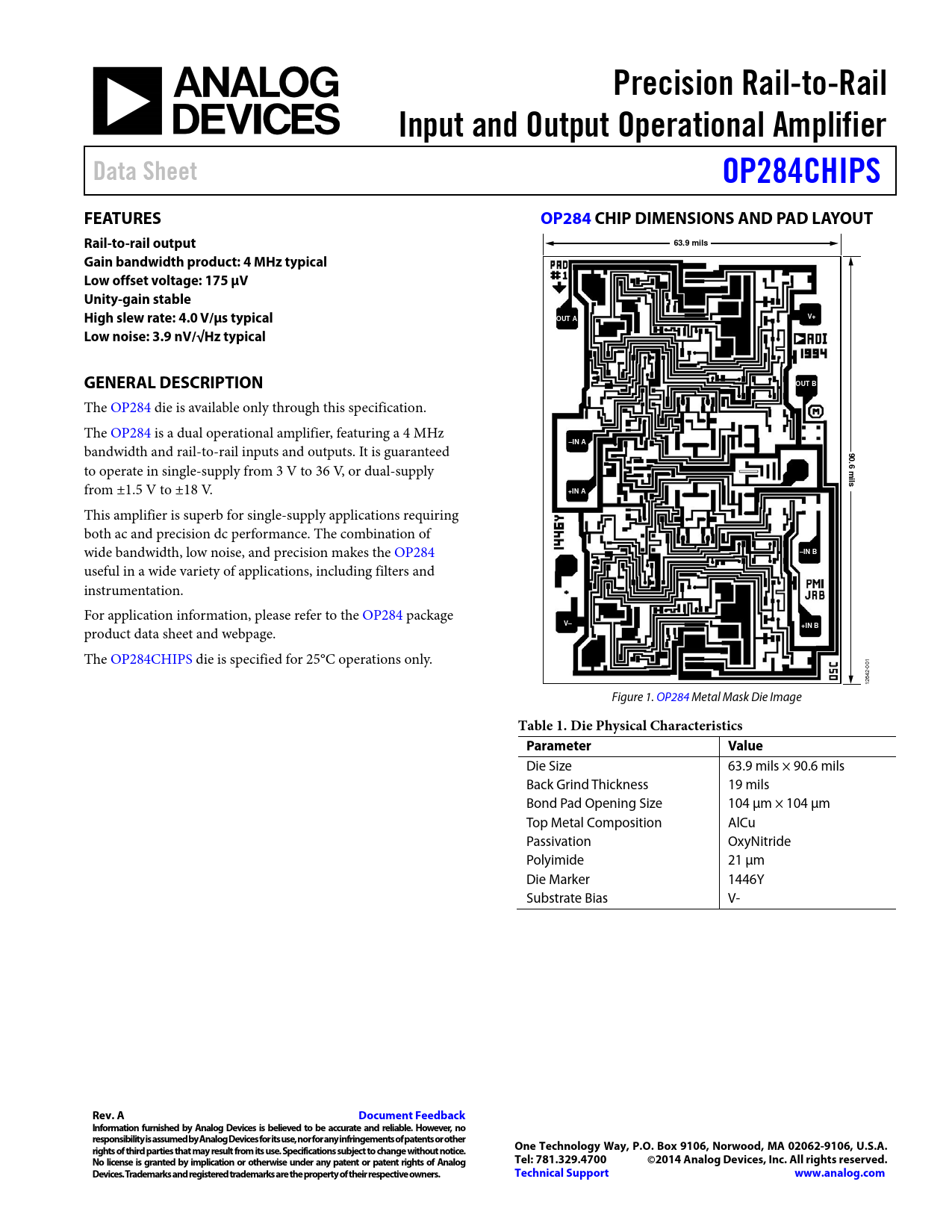

Precision Rail-to-Rail. Input and Output Operational Amplifier. Data Sheet. OP284CHIPS. FEATURES. OP284 CHIP
Línea de modelo para esta hoja de datos
Versión de texto del documento
Precision Rail-to-Rail Input and Output Operational Amplifier Data Sheet OP284CHIPS FEATURES OP284 CHIP DIMENSIONS AND PAD LAYOUT Rail-to-rail output 63.9 mils Gain bandwidth product: 4 MHz typical Low offset voltage: 175 μV Unity-gain stable High slew rate: 4.0 V/μs typical OUT A V+ Low noise: 3.9 nV/√Hz typical GENERAL DESCRIPTION OUT B
The OP284 die is available only through this specification. The OP284 is a dual operational amplifier, featuring a 4 MHz
–IN A
bandwidth and rail-to-rail inputs and outputs. It is guaranteed
90. 6 mi
to operate in single-supply from 3 V to 36 V, or dual-supply
ls
from ±1.5 V to ±18 V.
+IN A
This amplifier is superb for single-supply applications requiring both ac and precision dc performance. The combination of wide bandwidth, low noise, and precision makes the OP284
–IN B
useful in a wide variety of applications, including filters and instrumentation. For application information, please refer to the OP284 package
V– +IN B
product data sheet and webpage. The OP284CHIPS die is specified for 25°C operations only. -001 42 126 Figure 1. OP284 Metal Mask Die Image
Table 1. Die Physical Characteristics Parameter Value
Die Size 63.9 mils × 90.6 mils Back Grind Thickness 19 mils Bond Pad Opening Size 104 μm × 104 μm Top Metal Composition AlCu Passivation OxyNitride Polyimide 21 μm Die Marker 1446Y Substrate Bias V-
Rev. A Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. No license is granted by implication or otherwise under any patent or patent rights of Analog Tel: 781.329.4700 ©2014 Analog Devices, Inc. All rights reserved. Devices. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES GENERAL DESCRIPTION OP284 CHIP DIMENSIONS AND PAD LAYOUT TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS, VSY = ±15.0 V ABSOLUTE MAXIMUM RATINGS ESD CAUTION OUTLINE DIMENSIONS DIE PAD DESCRIPTIONS ORDERING GUIDE
