STANDARD. 5962-96839. MICROCIRCUIT DRAWING

STANDARD 5962-96839 MICROCIRCUIT DRAWING

Línea de modelo para esta hoja de datos

Versión de texto del documento

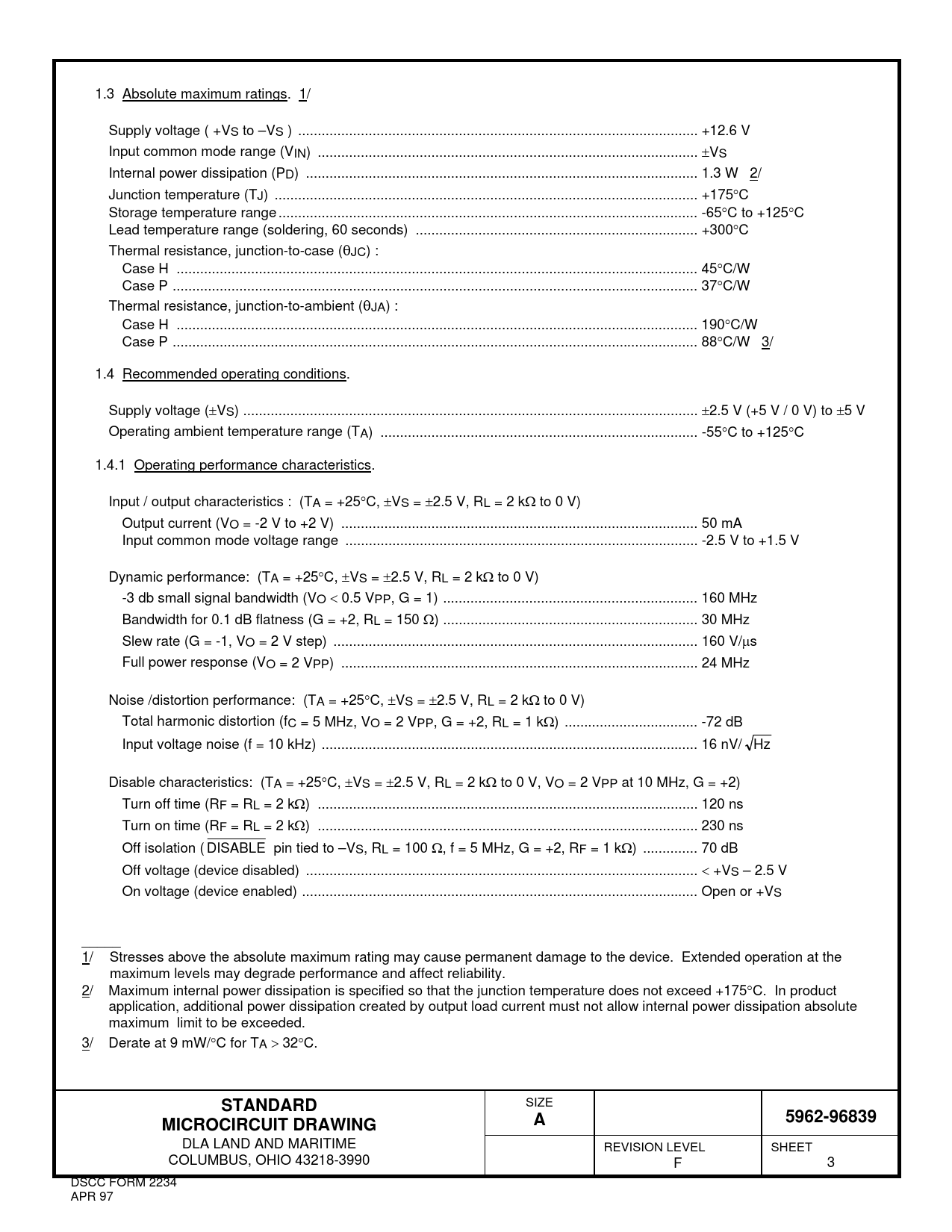

1.3 Absolute maximum ratings. 1/ Supply voltage ( +VS to –VS ) .. +12.6 V Input common mode range (VIN) ... VS Internal power dissipation (PD) .. 1.3 W 2/ Junction temperature (TJ) .. +175C Storage temperature range ... -65C to +125C Lead temperature range (soldering, 60 seconds) .. +300C Thermal resistance, junction-to-case (JC) : Case H ... 45C/W Case P .. 37C/W Thermal resistance, junction-to-ambient (JA) : Case H ... 190C/W Case P .. 88C/W 3/ 1.4 Recommended operating conditions. Supply voltage (VS) .. 2.5 V (+5 V / 0 V) to 5 V Operating ambient temperature range (TA) ... -55C to +125C 1.4.1 Operating performance characteristics. Input / output characteristics : (TA = +25C, VS = 2.5 V, RL = 2 k to 0 V) Output current (VO = -2 V to +2 V) ... 50 mA Input common mode voltage range .. -2.5 V to +1.5 V Dynamic performance: (TA = +25C, VS = 2.5 V, RL = 2 k to 0 V) -3 db small signal bandwidth (VO  0.5 VPP, G = 1) ... 160 MHz Bandwidth for 0.1 dB flatness (G = +2, RL = 150 ) ... 30 MHz Slew rate (G = -1, VO = 2 V step) ... 160 V/s Full power response (VO = 2 VPP) ... 24 MHz Noise /distortion performance: (TA = +25C, VS = 2.5 V, RL = 2 k to 0 V) Total harmonic distortion (fC = 5 MHz, VO = 2 VPP, G = +2, RL = 1 k) .. -72 dB Input voltage noise (f = 10 kHz) .. 16 nV/ Hz Disable characteristics: (TA = +25C, VS = 2.5 V, RL = 2 k to 0 V, VO = 2 VPP at 10 MHz, G = +2) Turn off time (RF = RL = 2 k) ... 120 ns Turn on time (RF = RL = 2 k) ... 230 ns Off isolation ( DISABLE pin tied to –VS, RL = 100 , f = 5 MHz, G = +2, RF = 1 k) .. 70 dB Off voltage (device disabled) ..  +VS – 2.5 V On voltage (device enabled) ... Open or +VS _____ 1/ Stresses above the absolute maximum rating may cause permanent damage to the device. Extended operation at the maximum levels may degrade performance and affect reliability. 2/ Maximum internal power dissipation is specified so that the junction temperature does not exceed +175C. In product application, additional power dissipation created by output load current must not allow internal power dissipation absolute maximum limit to be exceeded. 3/ Derate at 9 mW/C for TA  32C.
STANDARD
SIZE
5962-96839 MICROCIRCUIT DRAWING A
DLA LAND AND MARITIME REVISION LEVEL SHEET COLUMBUS, OHIO 43218-3990 F 3 DSCC FORM 2234 APR 97
