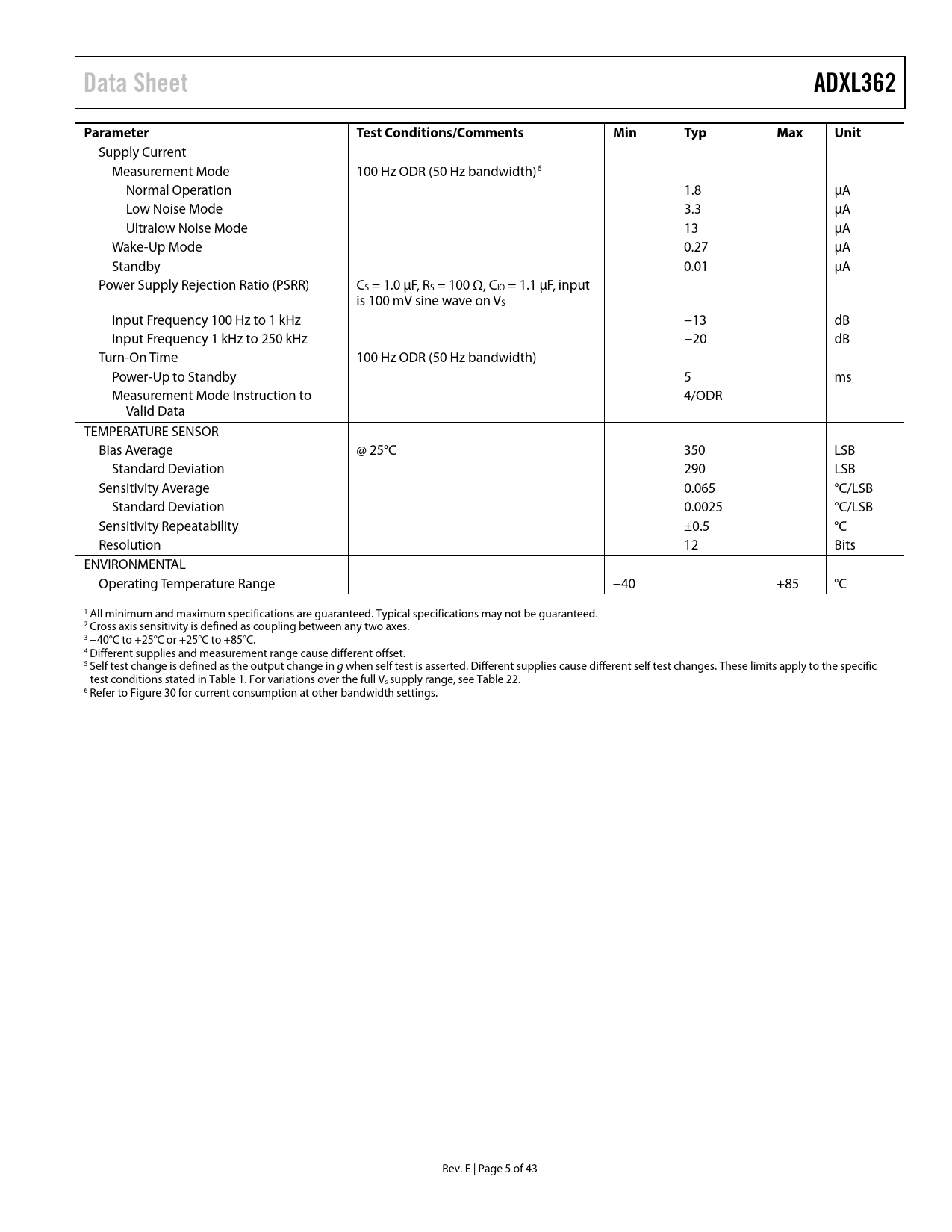

Data Sheet ADXL362 Parameter Test Conditions/Comments Min Typ Max Unit
Supply Current Measurement Mode 100 Hz ODR (50 Hz bandwidth)6 Normal Operation 1.8 µA Low Noise Mode 3.3 µA Ultralow Noise Mode 13 µA Wake-Up Mode 0.27 µA Standby 0.01 µA Power Supply Rejection Ratio (PSRR) CS = 1.0 µF, RS = 100 Ω, CIO = 1.1 µF, input is 100 mV sine wave on VS Input Frequency 100 Hz to 1 kHz −13 dB Input Frequency 1 kHz to 250 kHz −20 dB Turn-On Time 100 Hz ODR (50 Hz bandwidth) Power-Up to Standby 5 ms Measurement Mode Instruction to 4/ODR Valid Data TEMPERATURE SENSOR Bias Average @ 25°C 350 LSB Standard Deviation 290 LSB Sensitivity Average 0.065 °C/LSB Standard Deviation 0.0025 °C/LSB Sensitivity Repeatability ±0.5 °C Resolution 12 Bits ENVIRONMENTAL Operating Temperature Range −40 +85 °C 1 All minimum and maximum specifications are guaranteed. Typical specifications may not be guaranteed. 2 Cross axis sensitivity is defined as coupling between any two axes. 3 −40°C to +25°C or +25°C to +85°C. 4 Different supplies and measurement range cause different offset. 5 Self test change is defined as the output change in g when self test is asserted. Different supplies cause different self test changes. These limits apply to the specific test conditions stated in Table 1. For variations over the full Vs supply range, see Table 22. 6 Refer to Figure 30 for current consumption at other bandwidth settings. Rev. E | Page 5 of 43 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE PACKAGE INFORMATION RECOMMENDED SOLDERING PROFILE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION MECHANICAL DEVICE OPERATION OPERATING MODES Measurement Mode Wake-Up Mode Standby SELECTABLE MEASUREMENT RANGES SELECTABLE OUTPUT DATA RATES Antialiasing POWER/NOISE TRADEOFF POWER SAVINGS FEATURES ULTRALOW POWER CONSUMPTION IN ALL MODES MOTION DETECTION Activity Detection Referenced and Absolute Configurations Fewer False Positives Inactivity Detection Linking Activity and Inactivity Detection Default Mode Linked Mode Loop Mode Autosleep Using the AWAKE Bit FIFO System Level Power Savings Data Recording/Event Context COMMUNICATIONS SPI Instructions Bus Keepers MSB Registers ADDITIONAL FEATURES FREE FALL DETECTION EXTERNAL CLOCK SYNCHRONIZED DATA SAMPLING SELF TEST USER REGISTER PROTECTION TEMPERATURE SENSOR SERIAL COMMUNICATIONS SPI COMMANDS Read and Write Register Commands Read FIFO Command MULTIBYTE TRANSFERS Register Read/Write Auto-Increment INVALID ADDRESSES AND ADDRESS FOLDING LATENCY RESTRICTIONS INVALID COMMANDS REGISTER MAP REGISTER DETAILS DEVICE ID REGISTER DEVICE ID: 0x1D REGISTER PART ID: 0xF2 REGISTER SILICON REVISION ID REGISTER X-AXIS DATA (8 MSB) REGISTER Y-AXIS DATA (8 MSB) REGISTER Z-AXIS DATA (8 MSB) REGISTER STATUS REGISTER FIFO ENTRIES REGISTERS X-AXIS DATA REGISTERS Y-AXIS DATA REGISTERS Z-AXIS DATA REGISTERS TEMPERATURE DATA REGISTERS SOFT RESET REGISTER ACTIVITY THRESHOLD REGISTERS ACTIVITY TIME REGISTER INACTIVITY THRESHOLD REGISTERS INACTIVITY TIME REGISTERS ACTIVITY/INACTIVITY CONTROL REGISTER FIFO CONTROL REGISTER FIFO SAMPLES REGISTER INT1/INT2 FUNCTION MAP REGISTERS FILTER CONTROL REGISTER POWER CONTROL REGISTER SELF TEST REGISTER APPLICATIONS INFORMATION APPLICATION EXAMPLES Device Configuration Autonomous Motion Switch Start-up Routine Using External Timing Triggers Example: Implementing Free Fall Detection Start-up Routine POWER Power Supply Decoupling Power Supply Requirements FIFO MODES FIFO Disabled Oldest Saved Mode Stream Mode Triggered Mode FIFO Configuration FIFO Interrupts Retrieving Data from FIFO INTERRUPTS Interrupt Pins Alternate Functions of Interrupt Pins Activity and Inactivity Interrupts Data Ready Interrupt Using FIFO Interrupts FIFO Watermark FIFO Ready Overrun USING SYNCHRONIZED DATA SAMPLING USING AN EXTERNAL CLOCK USING SELF TEST OPERATION AT VOLTAGES OTHER THAN 2.0 V MECHANICAL CONSIDERATIONS FOR MOUNTING AXES OF ACCELERATION SENSITIVITY LAYOUT AND DESIGN RECOMMENDATIONS OUTLINE DIMENSIONS ORDERING GUIDE
