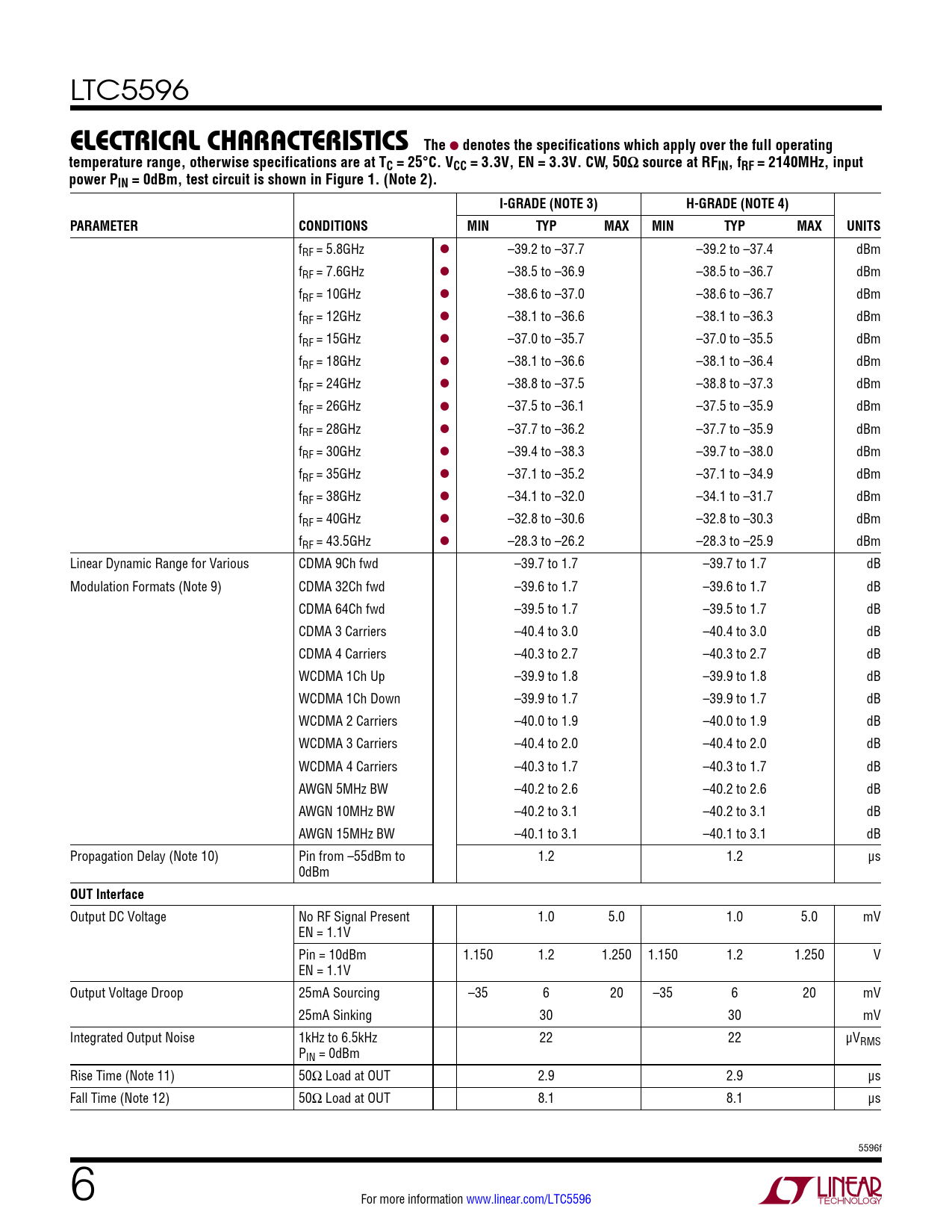

elecTrical characTerisTics. The. denotes the specifications which apply over the full operating
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC5596
elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TC = 25°C. VCC = 3.3V, EN = 3.3V. CW, 50Ω source at RFIN, fRF = 2140MHz, input power PIN = 0dBm, test circuit is shown in Figure 1. (Note 2). I-GRADE (NOTE 3) H-GRADE (NOTE 4) PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
fRF = 5.8GHz l –39.2 to –37.7 –39.2 to –37.4 dBm fRF = 7.6GHz l –38.5 to –36.9 –38.5 to –36.7 dBm fRF = 10GHz l –38.6 to –37.0 –38.6 to –36.7 dBm fRF = 12GHz l –38.1 to –36.6 –38.1 to –36.3 dBm fRF = 15GHz l –37.0 to –35.7 –37.0 to –35.5 dBm fRF = 18GHz l –38.1 to –36.6 –38.1 to –36.4 dBm fRF = 24GHz l –38.8 to –37.5 –38.8 to –37.3 dBm fRF = 26GHz l –37.5 to –36.1 –37.5 to –35.9 dBm fRF = 28GHz l –37.7 to –36.2 –37.7 to –35.9 dBm fRF = 30GHz l –39.4 to –38.3 –39.7 to –38.0 dBm fRF = 35GHz l –37.1 to –35.2 –37.1 to –34.9 dBm fRF = 38GHz l –34.1 to –32.0 –34.1 to –31.7 dBm fRF = 40GHz l –32.8 to –30.6 –32.8 to –30.3 dBm fRF = 43.5GHz l –28.3 to –26.2 –28.3 to –25.9 dBm Linear Dynamic Range for Various CDMA 9Ch fwd –39.7 to 1.7 –39.7 to 1.7 dB Modulation Formats (Note 9) CDMA 32Ch fwd –39.6 to 1.7 –39.6 to 1.7 dB CDMA 64Ch fwd –39.5 to 1.7 –39.5 to 1.7 dB CDMA 3 Carriers –40.4 to 3.0 –40.4 to 3.0 dB CDMA 4 Carriers –40.3 to 2.7 –40.3 to 2.7 dB WCDMA 1Ch Up –39.9 to 1.8 –39.9 to 1.8 dB WCDMA 1Ch Down –39.9 to 1.7 –39.9 to 1.7 dB WCDMA 2 Carriers –40.0 to 1.9 –40.0 to 1.9 dB WCDMA 3 Carriers –40.4 to 2.0 –40.4 to 2.0 dB WCDMA 4 Carriers –40.3 to 1.7 –40.3 to 1.7 dB AWGN 5MHz BW –40.2 to 2.6 –40.2 to 2.6 dB AWGN 10MHz BW –40.2 to 3.1 –40.2 to 3.1 dB AWGN 15MHz BW –40.1 to 3.1 –40.1 to 3.1 dB Propagation Delay (Note 10) Pin from –55dBm to 1.2 1.2 μs 0dBm
OUT Interface
Output DC Voltage No RF Signal Present 1.0 5.0 1.0 5.0 mV EN = 1.1V Pin = 10dBm 1.150 1.2 1.250 1.150 1.2 1.250 V EN = 1.1V Output Voltage Droop 25mA Sourcing –35 6 20 –35 6 20 mV 25mA Sinking 30 30 mV Integrated Output Noise 1kHz to 6.5kHz 22 22 μVRMS PIN = 0dBm Rise Time (Note 11) 50Ω Load at OUT 2.9 2.9 μs Fall Time (Note 12) 50Ω Load at OUT 8.1 8.1 μs 5596f 6 For more information www.linear.com/LTC5596 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Test Circuit Applications Information Package Description Typical Application Related Parts
