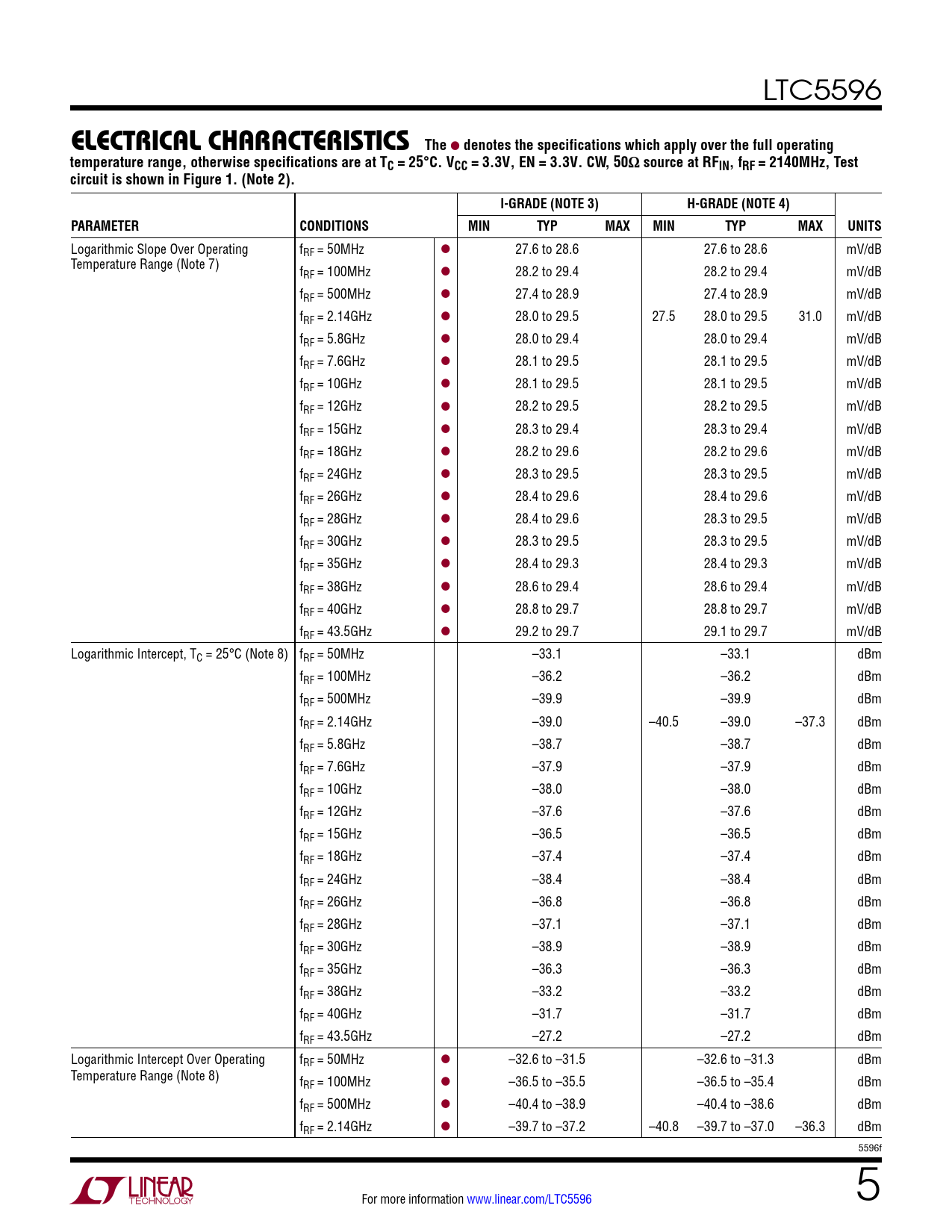

elecTrical characTerisTics. The. denotes the specifications which apply over the full operating
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC5596
elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TC = 25°C. VCC = 3.3V, EN = 3.3V. CW, 50Ω source at RFIN, fRF = 2140MHz, Test circuit is shown in Figure 1. (Note 2). I-GRADE (NOTE 3) H-GRADE (NOTE 4) PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
Logarithmic Slope Over Operating fRF = 50MHz l 27.6 to 28.6 27.6 to 28.6 mV/dB Temperature Range (Note 7) fRF = 100MHz l 28.2 to 29.4 28.2 to 29.4 mV/dB fRF = 500MHz l 27.4 to 28.9 27.4 to 28.9 mV/dB fRF = 2.14GHz l 28.0 to 29.5 27.5 28.0 to 29.5 31.0 mV/dB fRF = 5.8GHz l 28.0 to 29.4 28.0 to 29.4 mV/dB fRF = 7.6GHz l 28.1 to 29.5 28.1 to 29.5 mV/dB fRF = 10GHz l 28.1 to 29.5 28.1 to 29.5 mV/dB fRF = 12GHz l 28.2 to 29.5 28.2 to 29.5 mV/dB fRF = 15GHz l 28.3 to 29.4 28.3 to 29.4 mV/dB fRF = 18GHz l 28.2 to 29.6 28.2 to 29.6 mV/dB fRF = 24GHz l 28.3 to 29.5 28.3 to 29.5 mV/dB fRF = 26GHz l 28.4 to 29.6 28.4 to 29.6 mV/dB fRF = 28GHz l 28.4 to 29.6 28.3 to 29.5 mV/dB fRF = 30GHz l 28.3 to 29.5 28.3 to 29.5 mV/dB fRF = 35GHz l 28.4 to 29.3 28.4 to 29.3 mV/dB fRF = 38GHz l 28.6 to 29.4 28.6 to 29.4 mV/dB fRF = 40GHz l 28.8 to 29.7 28.8 to 29.7 mV/dB fRF = 43.5GHz l 29.2 to 29.7 29.1 to 29.7 mV/dB Logarithmic Intercept, TC = 25°C (Note 8) fRF = 50MHz –33.1 –33.1 dBm fRF = 100MHz –36.2 –36.2 dBm fRF = 500MHz –39.9 –39.9 dBm fRF = 2.14GHz –39.0 –40.5 –39.0 –37.3 dBm fRF = 5.8GHz –38.7 –38.7 dBm fRF = 7.6GHz –37.9 –37.9 dBm fRF = 10GHz –38.0 –38.0 dBm fRF = 12GHz –37.6 –37.6 dBm fRF = 15GHz –36.5 –36.5 dBm fRF = 18GHz –37.4 –37.4 dBm fRF = 24GHz –38.4 –38.4 dBm fRF = 26GHz –36.8 –36.8 dBm fRF = 28GHz –37.1 –37.1 dBm fRF = 30GHz –38.9 –38.9 dBm fRF = 35GHz –36.3 –36.3 dBm fRF = 38GHz –33.2 –33.2 dBm fRF = 40GHz –31.7 –31.7 dBm fRF = 43.5GHz –27.2 –27.2 dBm Logarithmic Intercept Over Operating fRF = 50MHz l –32.6 to –31.5 –32.6 to –31.3 dBm Temperature Range (Note 8) fRF = 100MHz l –36.5 to –35.5 –36.5 to –35.4 dBm fRF = 500MHz l –40.4 to –38.9 –40.4 to –38.6 dBm fRF = 2.14GHz l –39.7 to –37.2 –40.8 –39.7 to –37.0 –36.3 dBm 5596f For more information www.linear.com/LTC5596 5 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Test Circuit Applications Information Package Description Typical Application Related Parts
