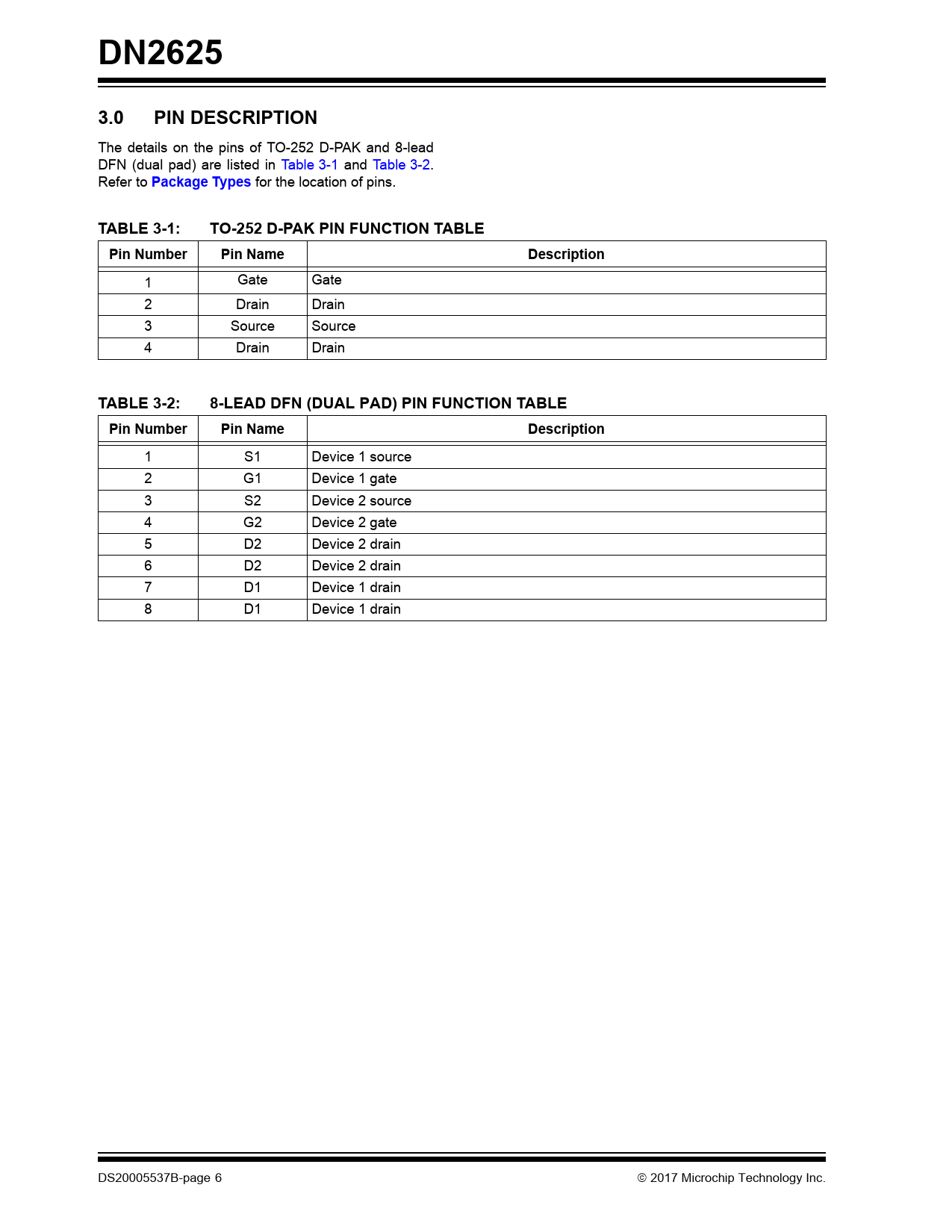

DN2625 3.0 PIN DESCRIPTION
The details on the pins of TO-252 D-PAK and 8-lead DFN (dual pad) are listed in Table 3-1 and Table 3-2. Refer to
Package Types
for the location of pins.
TABLE 3-1: TO-252 D-PAK PIN FUNCTION TABLE Pin Number Pin Name Description
1 Gate Gate 2 Drain Drain 3 Source Source 4 Drain Drain
TABLE 3-2: 8-LEAD DFN (DUAL PAD) PIN FUNCTION TABLE Pin Number Pin Name Description
1 S1 Device 1 source 2 G1 Device 1 gate 3 S2 Device 2 source 4 G2 Device 2 gate 5 D2 Device 2 drain 6 D2 Device 2 drain 7 D1 Device 1 drain 8 D1 Device 1 drain DS20005537B-page 6 2017 Microchip Technology Inc. Document Outline 1.0 Electrical Characteristics Absolute Maximum Ratings† Temperature Specifications Thermal characteristics 2.0 Typical Performance Curves FIGURE 2-1: Output Characteristics. FIGURE 2-2: Transfer Characteristics. FIGURE 2-3: Saturation Characteristics. FIGURE 2-4: BVDSX Variation with Temperature. FIGURE 2-5: On-resistance vs. Drain Current. FIGURE 2-6: VGS(OFF) and RDS(ON) Variation with Temperature. FIGURE 2-7: Transconductance vs. Drain Current. 3.0 Pin Description TABLE 3-1: TO-252 D-PAK Pin Function Table TABLE 3-2: 8-lead DFN (dual Pad) Pin Function Table 4.0 Functional Description FIGURE 4-1: Switching Waveforms and Test Circuit. Product Summary 5.0 Packaging Information 5.1 Package Marking Information
