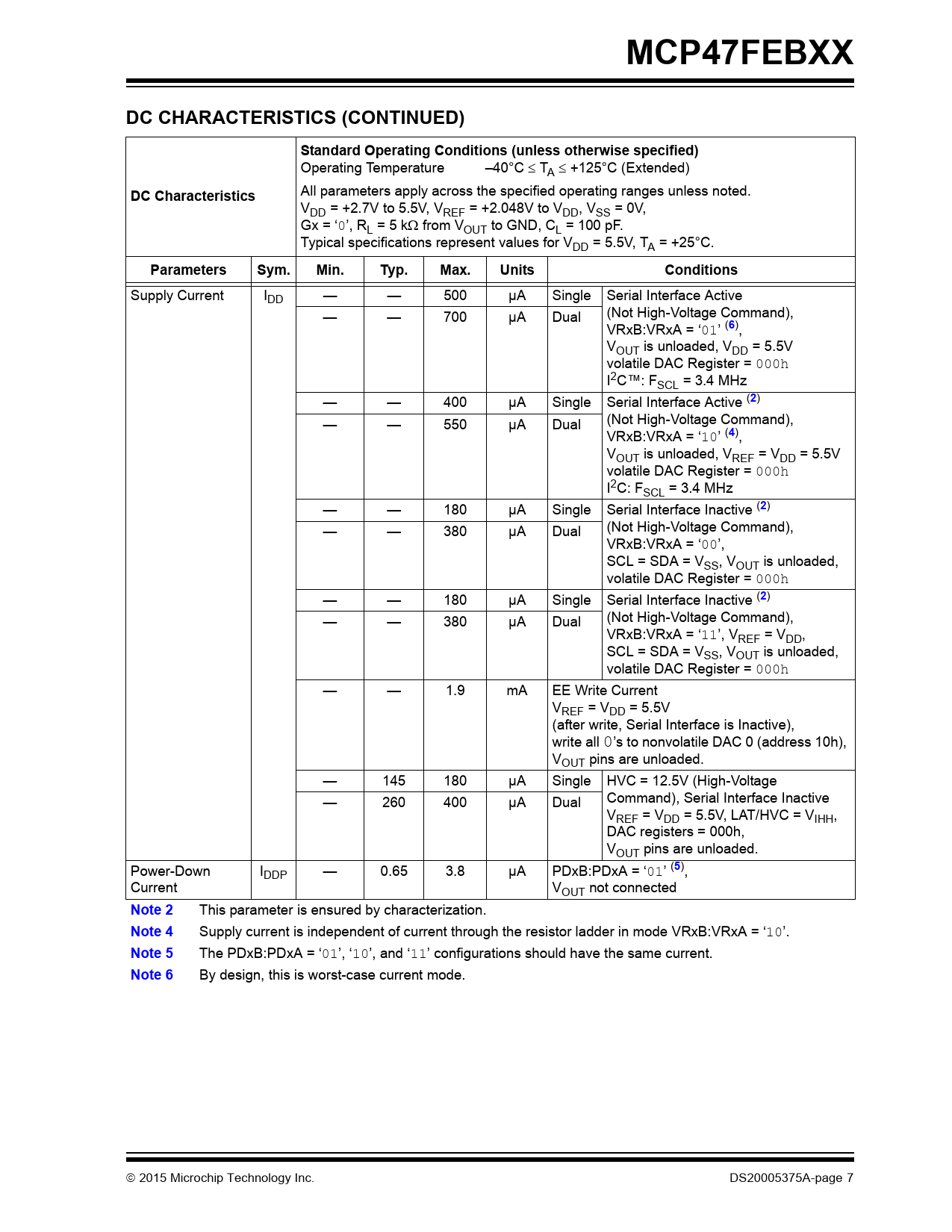

MCP47FEBXX. DC CHARACTERISTICS (CONTINUED). Standard Operating Conditions (unless otherwise specified). DC Characteristics
Línea de modelo para esta hoja de datos
- MCP47FEB01A0-E/ST MCP47FEB01A0T-E/ST MCP47FEB01A1-E/ST MCP47FEB01A1T-E/ST MCP47FEB01A2-E/ST MCP47FEB01A2T-E/ST MCP47FEB01A3-E/ST MCP47FEB01A3T-E/ST
- MCP47FEB02A0-E/ST MCP47FEB02A0T-E/ST MCP47FEB02A1-E/ST MCP47FEB02A1T-E/ST MCP47FEB02A2-E/ST MCP47FEB02A2T-E/ST MCP47FEB02A3-E/ST MCP47FEB02A3T-E/ST
- MCP47FEB11A0-E/ST MCP47FEB11A0T-E/ST MCP47FEB11A1-E/ST MCP47FEB11A1T-E/ST MCP47FEB11A2-E/ST MCP47FEB11A2T-E/ST MCP47FEB11A3-E/ST MCP47FEB11A3T-E/ST
- MCP47FEB12A0-E/ST MCP47FEB12A0T-E/ST MCP47FEB12A1-E/ST MCP47FEB12A1T-E/ST MCP47FEB12A2-E/ST MCP47FEB12A2T-E/ST MCP47FEB12A3-E/ST MCP47FEB12A3T-E/ST
