HMC602LP4 / 602LP4E. 70 dB, LOGARITHMIC. DETECTOR / CONTROLLER, 1 - 8000 MHz. Pin Descriptions (Continued)
Versión de texto del documento

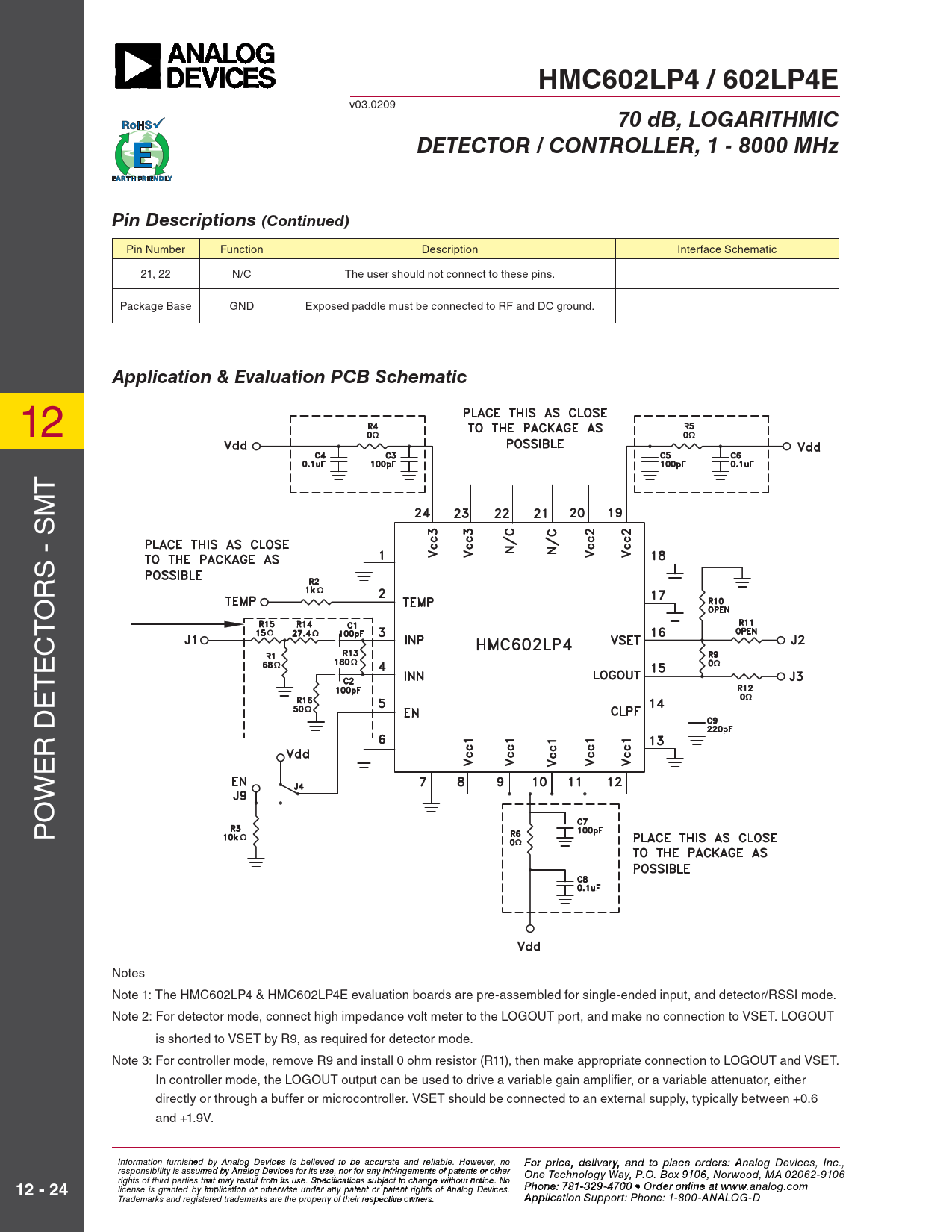

HMC602LP4 / 602LP4E
v03.0209
70 dB, LOGARITHMIC DETECTOR / CONTROLLER, 1 - 8000 MHz Pin Descriptions (Continued)
Pin Number Function Description Interface Schematic 21, 22 N/C The user should not connect to these pins. Package Base GND Exposed paddle must be connected to RF and DC ground.
Application & Evaluation PCB Schematic
12 T S - SM R O T C E T E R D E W O P Notes Note 1: The HMC602LP4 & HMC602LP4E evaluation boards are pre-assembled for single-ended input, and detector/RSSI mode. Note 2: For detector mode, connect high impedance volt meter to the LOGOUT port, and make no connection to VSET. LOGOUT is shorted to VSET by R9, as required for detector mode. Note 3: For controller mode, remove R9 and install 0 ohm resistor (R11), then make appropriate connection to LOGOUT and VSET. In controller mode, the LOGOUT output can be used to drive a variable gain amplifi er, or a variable attenuator, either directly or through a buffer or microcontroller. VSET should be connected to an external supply, typically between +0.6 and +1.9V. Information furnis F heod r pri by An ce, de alog Devi lcievs eir s y b , a eliev nd to pla ed to be accu ce o rate anrder d relia sbl, pl e. H ease co owever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road, Chelmsford, MA 01824 Phone: 978 rights of third parties that may result from its use. Specifications subject to change without notice. No Ph - o 25 ne 0 : 7 -3 81- 3 3 4 29 3 F -470 ax: 978 0 • Orde - r o 25 nlin 0- e a3 t 373
12 - 24
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Order On-l Trademarks and registered trademarks are the property of their respective owners. ine at www.hit A ti p te.co plicati m on Support: Phone: 1-800-ANALOG-D
