HMC602LP4 / 602LP4E
v03.0209

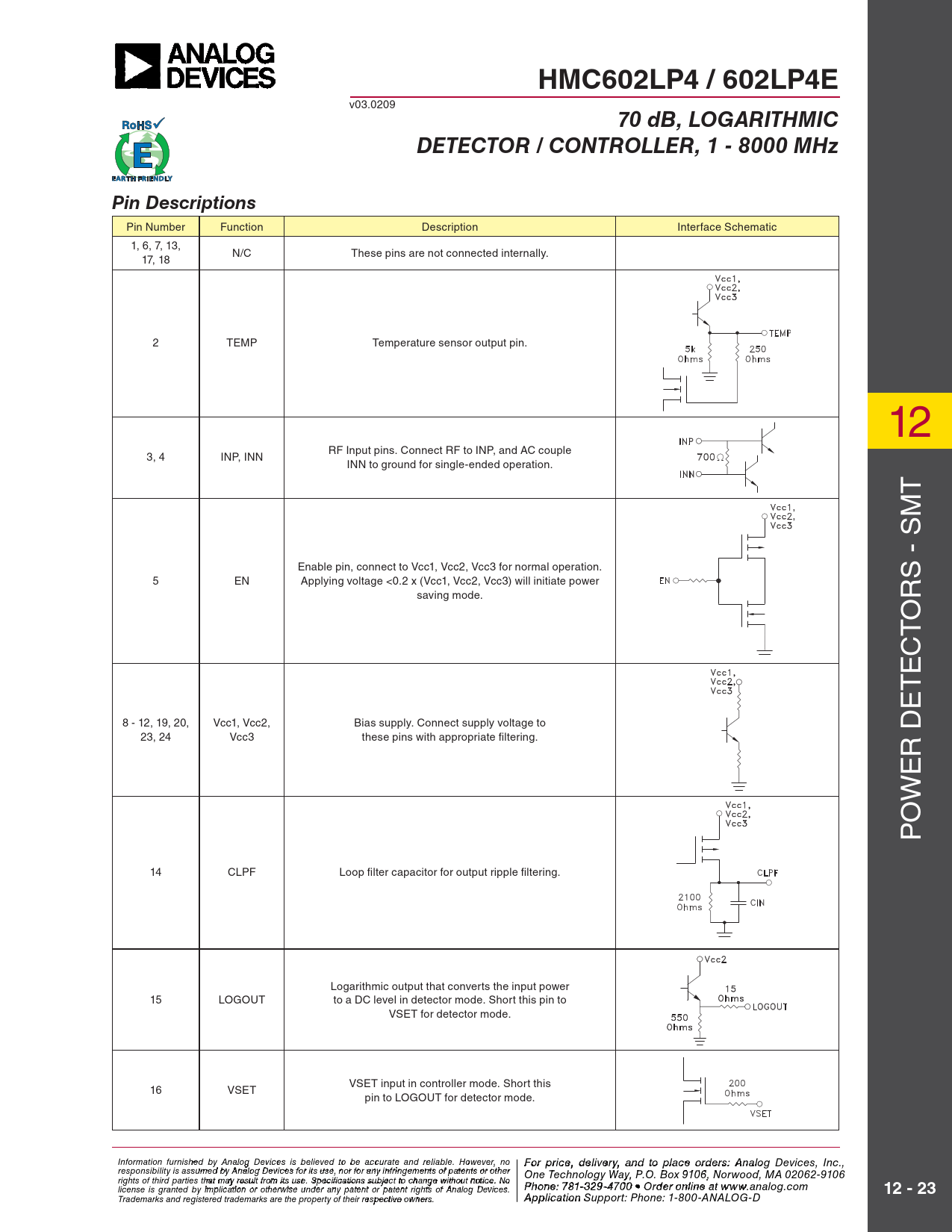

70 dB, LOGARITHMIC DETECTOR / CONTROLLER, 1 - 8000 MHz Pin Descriptions
Pin Number Function Description Interface Schematic 1, 6, 7, 13, N/C These pins are not connected internally. 17, 18 2 TEMP Temperature sensor output pin. 12 RF Input pins. Connect RF to INP, and AC couple 3, 4 INP, INN INN to ground for single-ended operation. T Enable pin, connect to Vcc1, Vcc2, Vcc3 for normal operation. S - SM 5 EN Applying voltage <0.2 x (Vcc1, Vcc2, Vcc3) will initiate power saving mode. R O T C E T E 8 - 12, 19, 20, Vcc1, Vcc2, Bias supply. Connect supply voltage to 23, 24 Vcc3 these pins with appropriate fi ltering. R D E W O P 14 CLPF Loop fi lter capacitor for output ripple fi ltering. Logarithmic output that converts the input power 15 LOGOUT to a DC level in detector mode. Short this pin to VSET for detector mode. VSET input in controller mode. Short this 16 VSET pin to LOGOUT for detector mode. Information furnis F heod r pri by An ce, de alog Devi lcievs eir s y b , a eliev nd to pla ed to be accu ce o rate anrder d relia sbl, pl e. H ease co owever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road, Chelmsford, MA 01824 Phone: 978 rights of third parties that may result from its use. Specifications subject to change without notice. No Ph - o 25 ne 0 : 7 -3 81- 3 3 4 29 3 F -470 ax: 978 0 • Orde - r o 25 nlin 0- e a3 t 373 license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com
12 - 23
Order On-l Trademarks and registered trademarks are the property of their respective owners. ine at www.hit A ti p te.co plicati m on Support: Phone: 1-800-ANALOG-D
