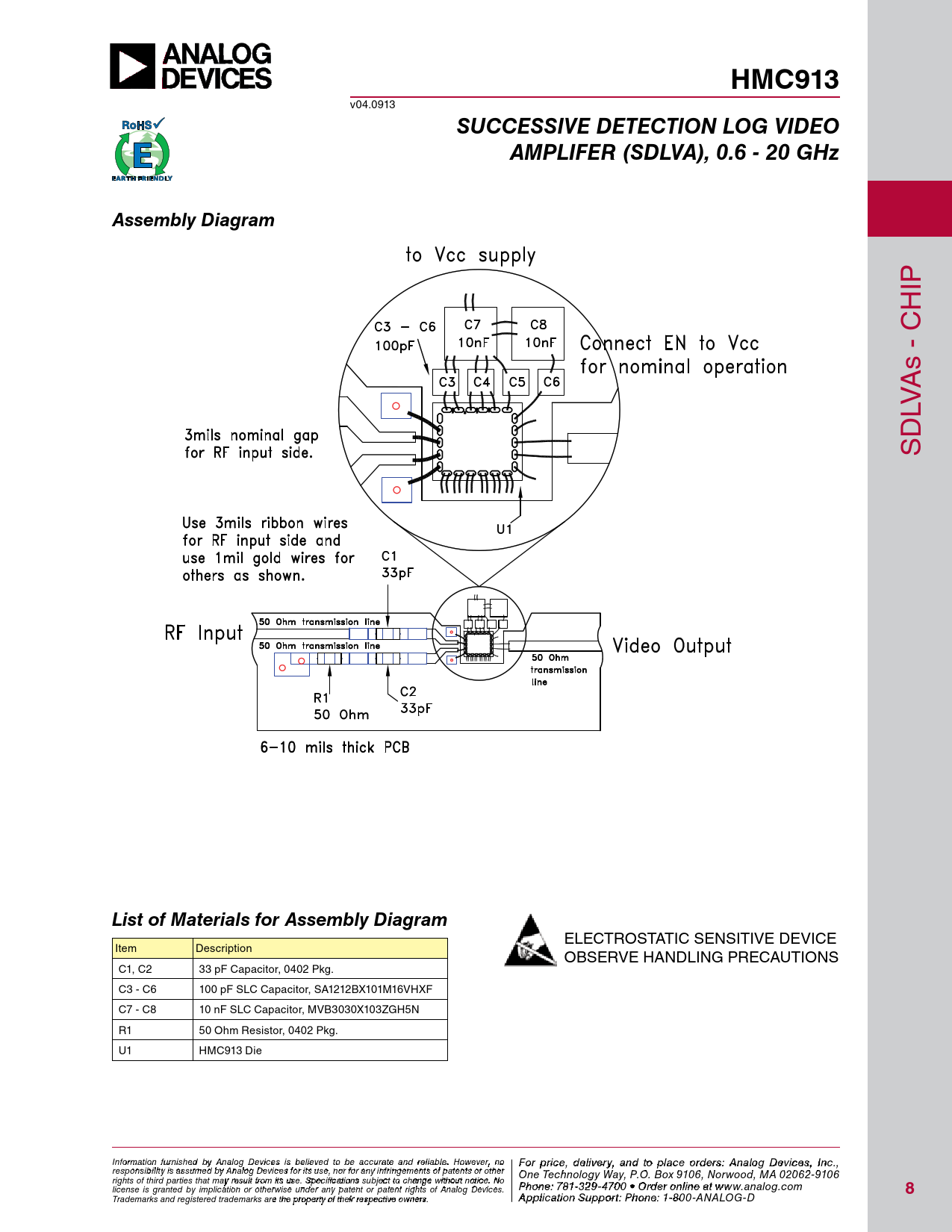

HMC913. SUCCESSIVE DETECTION LOG VIDEO. AMPLIFER (SDLVA), 0.6 - 20 GHz. Assembly Diagram

HMC913 SUCCESSIVE DETECTION LOG VIDEO AMPLIFER (SDLVA), 0.6 - 20 GHz Assembly Diagram

Línea de modelo para esta hoja de datos

Versión de texto del documento

HMC913
v04.0913
SUCCESSIVE DETECTION LOG VIDEO AMPLIFER (SDLVA), 0.6 - 20 GHz Assembly Diagram
IP H C - As LV SD
List of Materials for Assembly Diagram
ELECTROSTATIC SENSITIVE DEVICE Item Description OBSERVE HANDLING PRECAUTIONS C1, C2 33 pF Capacitor, 0402 Pkg. C3 - C6 100 pF SLC Capacitor, SA1212BX101M16VHXF C7 - C8 10 nF SLC Capacitor, MVB3030X103ZGH5N R1 50 Ohm Resistor, 0402 Pkg. U1 HMC913 Die Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd hone e r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o t niltie n .c e ao t m license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com
