Datasheet HMC913 (Analog Devices)

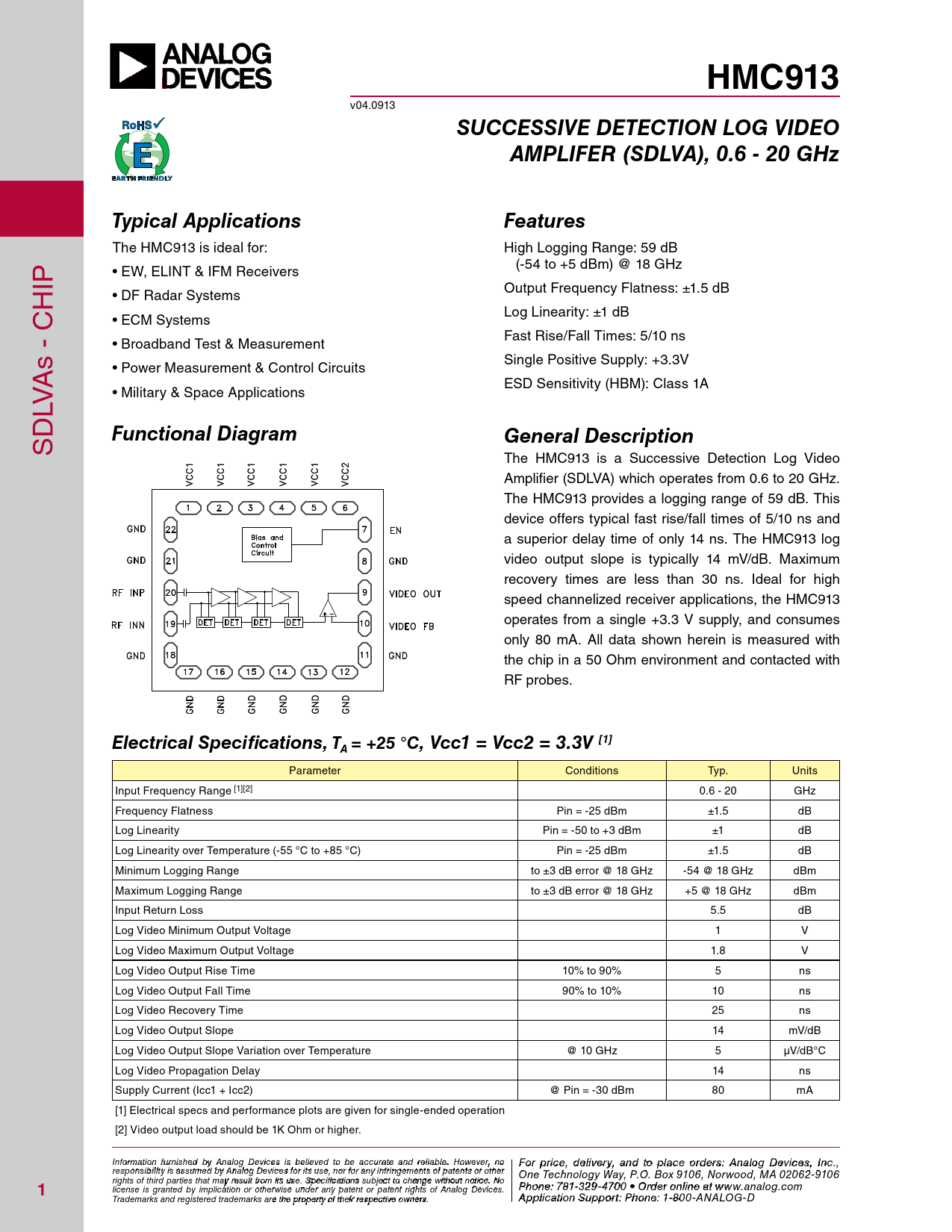

HMC913
v04.0913
SUCCESSIVE DETECTION LOG VIDEO AMPLIFER (SDLVA), 0.6 - 20 GHz Typical Applications Features
The HMC913 is ideal for: High Logging Range: 59 dB (-54 to +5 dBm) @ 18 GHz IP • EW, ELINT & IFM Receivers H Output Frequency Flatness: ±1.5 dB • DF Radar Systems Log Linearity: ±1 dB C • ECM Systems - Fast Rise/Fal Times: 5/10 ns • Broadband Test & Measurement Single Positive Supply: +3.3V As • Power Measurement & Control Circuits ESD Sensitivity (HBM): Class 1A LV • Military & Space Applications SD
Functional Diagram General Description
The HMC913 is a Successive Detection Log Video Amplifier (SDLVA) which operates from 0.6 to 20 GHz. The HMC913 provides a logging range of 59 dB. This device offers typical fast rise/fall times of 5/10 ns and a superior delay time of only 14 ns. The HMC913 log video output slope is typical y 14 mV/dB. Maximum recovery times are less than 30 ns. Ideal for high speed channelized receiver applications, the HMC913 operates from a single +3.3 V supply, and consumes only 80 mA. All data shown herein is measured with the chip in a 50 Ohm environment and contacted with RF probes.
Electrical Specifications, TA = +25 °C, Vcc1 = Vcc2 = 3.3V [1]
Parameter Conditions Typ. Units Input Frequency Range [1][2] 0.6 - 20 GHz Frequency Flatness Pin = -25 dBm ±1.5 dB Log Linearity Pin = -50 to +3 dBm ±1 dB Log Linearity over Temperature (-55 °C to +85 °C) Pin = -25 dBm ±1.5 dB Minimum Logging Range to ±3 dB error @ 18 GHz -54 @ 18 GHz dBm Maximum Logging Range to ±3 dB error @ 18 GHz +5 @ 18 GHz dBm Input Return Loss 5.5 dB Log Video Minimum Output Voltage 1 V Log Video Maximum Output Voltage 1.8 V Log Video Output Rise Time 10% to 90% 5 ns Log Video Output Fall Time 90% to 10% 10 ns Log Video Recovery Time 25 ns Log Video Output Slope 14 mV/dB Log Video Output Slope Variation over Temperature @ 10 GHz 5 µV/dB°C Log Video Propagation Delay 14 ns Supply Current (Icc1 + Icc2) @ Pin = -30 dBm 80 mA [1] Electrical specs and performance plots are given for single-ended operation [2] Video output load should be 1K Ohm or higher. Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd hone e r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o t niltie n .c e ao t m
1
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Application Support: Pho Trademarks and registered trademarks are the property of their respective owners. ne: 978-250-33 A 4 p 3 p o lica rti a o p n S p u s p @ po h rt itt : P ite ho . n c e om : 1-800-ANALOG-D
