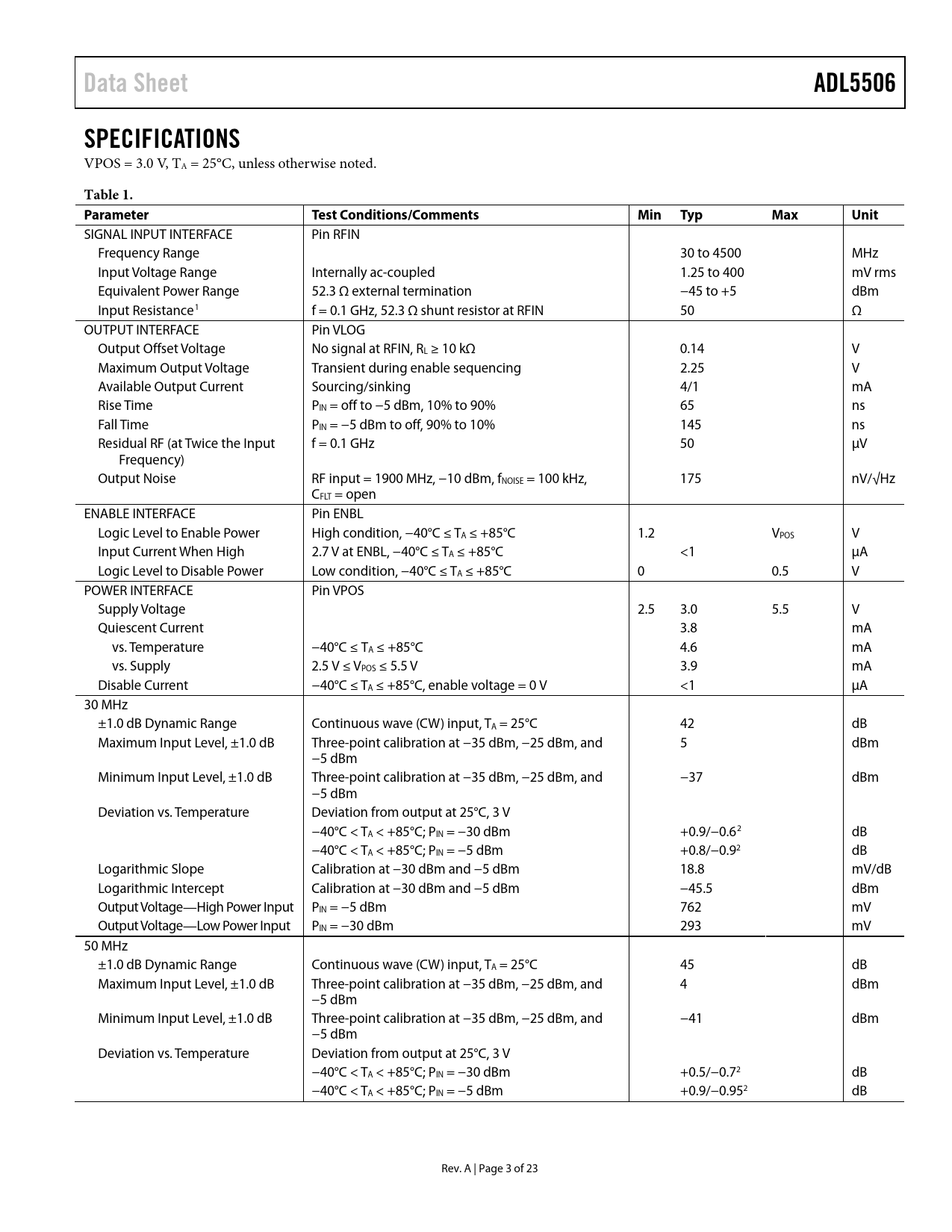

Data Sheet ADL5506 SPECIFICATIONS
VPOS = 3.0 V, TA = 25°C, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
SIGNAL INPUT INTERFACE Pin RFIN Frequency Range 30 to 4500 MHz Input Voltage Range Internally ac-coupled 1.25 to 400 mV rms Equivalent Power Range 52.3 Ω external termination −45 to +5 dBm Input Resistance1 f = 0.1 GHz, 52.3 Ω shunt resistor at RFIN 50 Ω OUTPUT INTERFACE Pin VLOG Output Offset Voltage No signal at RFIN, RL ≥ 10 kΩ 0.14 V Maximum Output Voltage Transient during enable sequencing 2.25 V Available Output Current Sourcing/sinking 4/1 mA Rise Time PIN = off to −5 dBm, 10% to 90% 65 ns Fall Time PIN = −5 dBm to off, 90% to 10% 145 ns Residual RF (at Twice the Input f = 0.1 GHz 50 µV Frequency) Output Noise RF input = 1900 MHz, −10 dBm, fNOISE = 100 kHz, 175 nV/√Hz CFLT = open ENABLE INTERFACE Pin ENBL Logic Level to Enable Power High condition, −40°C ≤ TA ≤ +85°C 1.2 VPOS V Input Current When High 2.7 V at ENBL, −40°C ≤ TA ≤ +85°C <1 µA Logic Level to Disable Power Low condition, −40°C ≤ TA ≤ +85°C 0 0.5 V POWER INTERFACE Pin VPOS Supply Voltage 2.5 3.0 5.5 V Quiescent Current 3.8 mA vs. Temperature −40°C ≤ TA ≤ +85°C 4.6 mA vs. Supply 2.5 V ≤ VPOS ≤ 5.5 V 3.9 mA Disable Current −40°C ≤ TA ≤ +85°C, enable voltage = 0 V <1 µA 30 MHz ±1.0 dB Dynamic Range Continuous wave (CW) input, TA = 25°C 42 dB Maximum Input Level, ±1.0 dB Three-point calibration at −35 dBm, −25 dBm, and 5 dBm −5 dBm Minimum Input Level, ±1.0 dB Three-point calibration at −35 dBm, −25 dBm, and −37 dBm −5 dBm Deviation vs. Temperature Deviation from output at 25°C, 3 V −40°C < TA < +85°C; PIN = −30 dBm +0.9/−0.62 dB −40°C < TA < +85°C; PIN = −5 dBm +0.8/−0.92 dB Logarithmic Slope Calibration at −30 dBm and −5 dBm 18.8 mV/dB Logarithmic Intercept Calibration at −30 dBm and −5 dBm −45.5 dBm Output Voltage—High Power Input PIN = −5 dBm 762 mV Output Voltage—Low Power Input PIN = −30 dBm 293 mV 50 MHz ±1.0 dB Dynamic Range Continuous wave (CW) input, TA = 25°C 45 dB Maximum Input Level, ±1.0 dB Three-point calibration at −35 dBm, −25 dBm, and 4 dBm −5 dBm Minimum Input Level, ±1.0 dB Three-point calibration at −35 dBm, −25 dBm, and −41 dBm −5 dBm Deviation vs. Temperature Deviation from output at 25°C, 3 V −40°C < TA < +85°C; PIN = −30 dBm +0.5/−0.72 dB −40°C < TA < +85°C; PIN = −5 dBm +0.9/−0.952 dB Rev. A | Page 3 of 23 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS MEASUREMENT SETUPS THEORY OF OPERATION APPLICATIONS INFORMATION BASIC CONNECTIONS TRANSFER FUNCTION IN TERMS OF SLOPE AND INTERCEPT LOG CONFORMANCE ERROR CALCULATION Filter Capacitor Input Coupling Options Effect of Waveform Type on Intercept Temperature Drift at High Frequencies Operation Above 4.5 GHz VLOG Output Noise VLOG Pulse Response Time Device Handling EVALUATION BOARD LAND PATTERN AND SOLDERING INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
