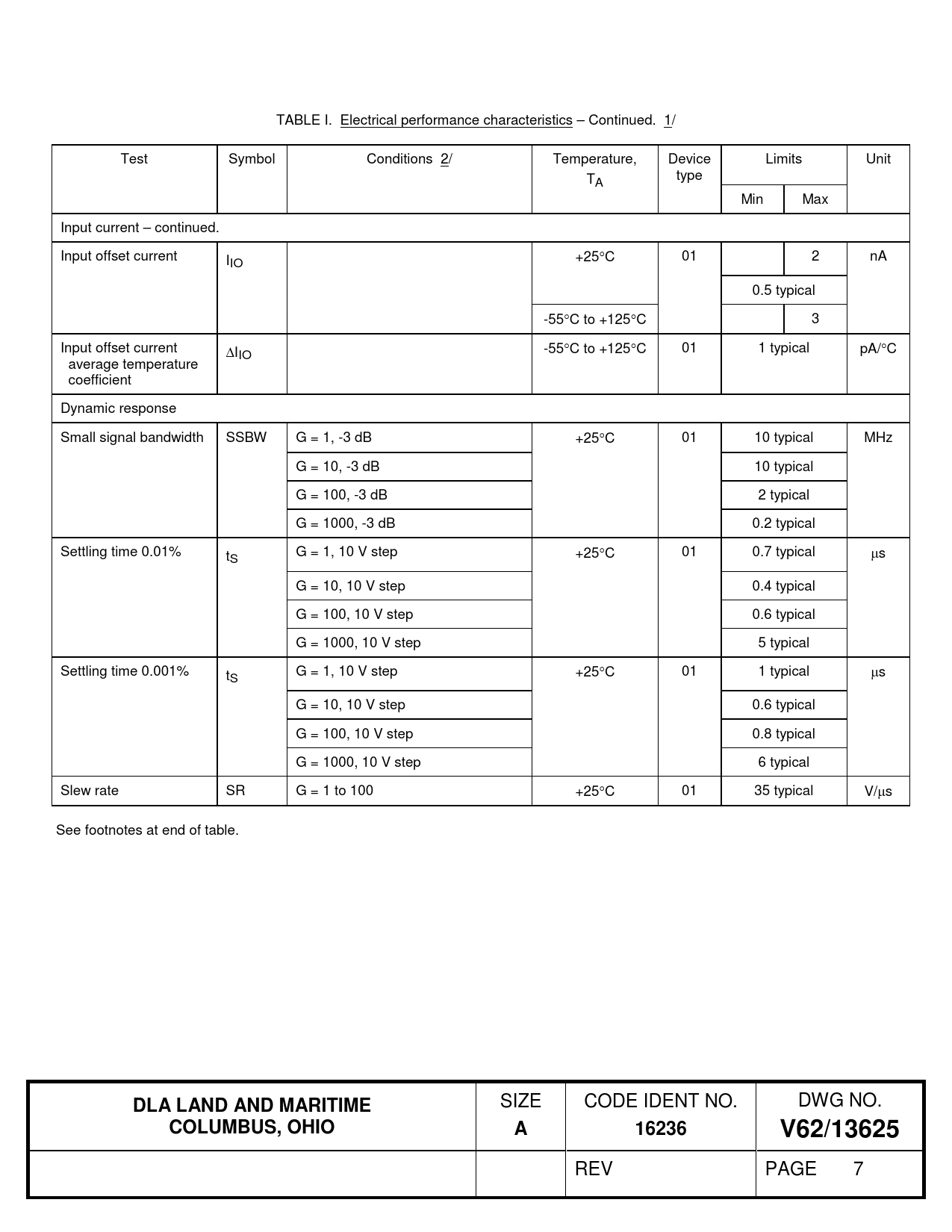

TABLE I. Electrical performance characteristics – Continued. 1/ Test Symbol Conditions 2/ Temperature, Device Limits Unit T type A Min Max Input current – continued. Input offset current IIO +25°C 01 2 nA 0.5 typical -55°C to +125°C 3 Input offset current ∆IIO -55°C to +125°C 01 1 typical pA/°C average temperature coefficient Dynamic response Small signal bandwidth SSBW G = 1, -3 dB +25°C 01 10 typical MHz G = 10, -3 dB 10 typical G = 100, -3 dB 2 typical G = 1000, -3 dB 0.2 typical Settling time 0.01% tS G = 1, 10 V step +25°C 01 0.7 typical µs G = 10, 10 V step 0.4 typical G = 100, 10 V step 0.6 typical G = 1000, 10 V step 5 typical Settling time 0.001% tS G = 1, 10 V step +25°C 01 1 typical µs G = 10, 10 V step 0.6 typical G = 100, 10 V step 0.8 typical G = 1000, 10 V step 6 typical Slew rate SR G = 1 to 100 +25°C 01 35 typical V/µs See footnotes at end of table.
