DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/13625

DLA LAND AND MARITIME COLUMBUS, OHIO 16236 V62/13625

Línea de modelo para esta hoja de datos

Versión de texto del documento

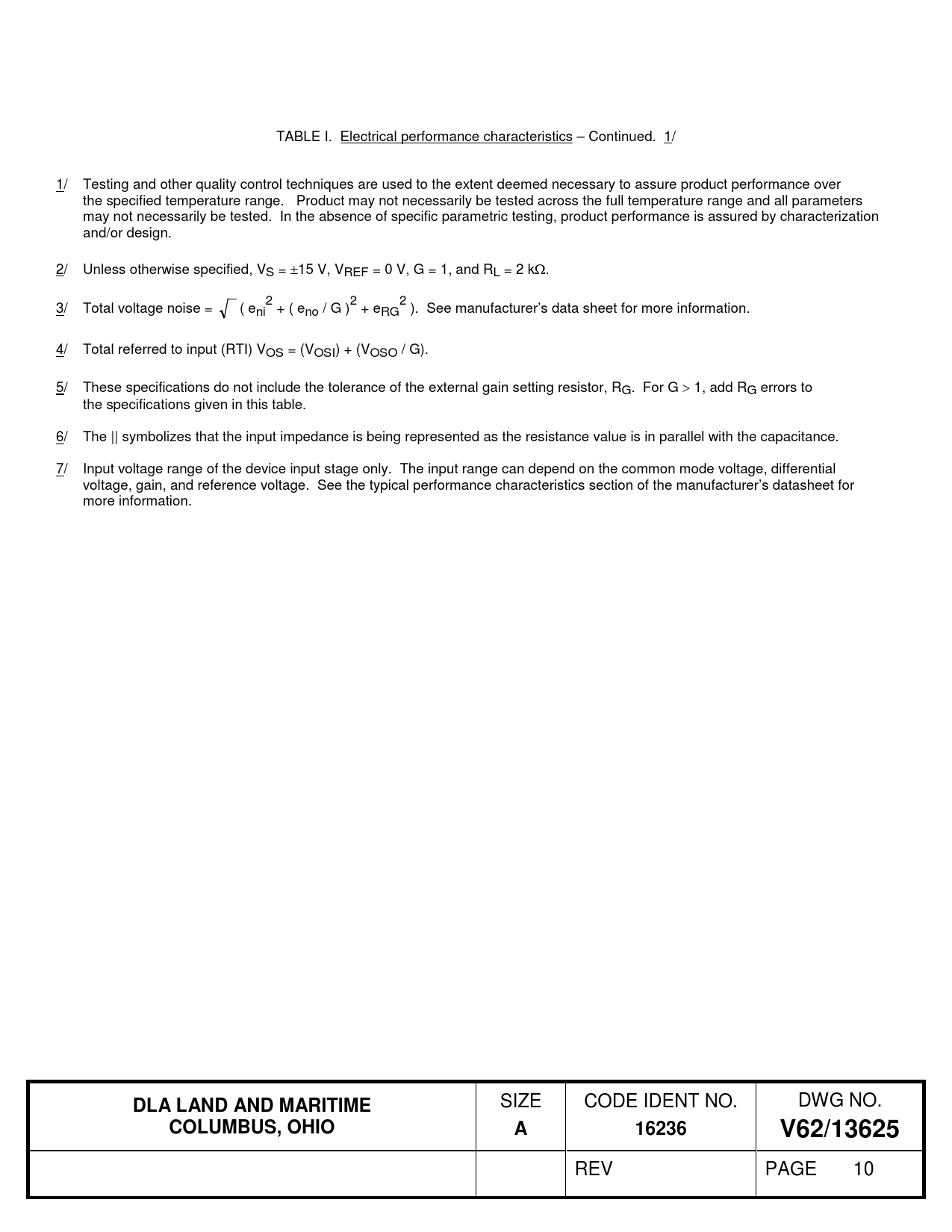

TABLE I. Electrical performance characteristics – Continued. 1/ 1/ Testing and other quality control techniques are used to the extent deemed necessary to assure product performance over the specified temperature range. Product may not necessarily be tested across the full temperature range and all parameters may not necessarily be tested. In the absence of specific parametric testing, product performance is assured by characterization and/or design. 2/ Unless otherwise specified, VS = ±15 V, VREF = 0 V, G = 1, and RL = 2 kΩ. 2 2 2 3/ Total voltage noise = ( eni + ( eno / G ) + eRG ). See manufacturer’s data sheet for more information. 4/ Total referred to input (RTI) VOS = (VOSI) + (VOSO / G). 5/ These specifications do not include the tolerance of the external gain setting resistor, RG. For G > 1, add RG errors to the specifications given in this table. 6/ The || symbolizes that the input impedance is being represented as the resistance value is in parallel with the capacitance. 7/ Input voltage range of the device input stage only. The input range can depend on the common mode voltage, differential voltage, gain, and reference voltage. See the typical performance characteristics section of the manufacturer’s datasheet for more information.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/13625
REV PAGE 10 Document Outline DESCRIPTION REV REV PMIC N/A DLA LAND AND MARITIME TITLE SIZE A V62/13625 REV
