Datasheet AD9059 (Analog Devices) - 3

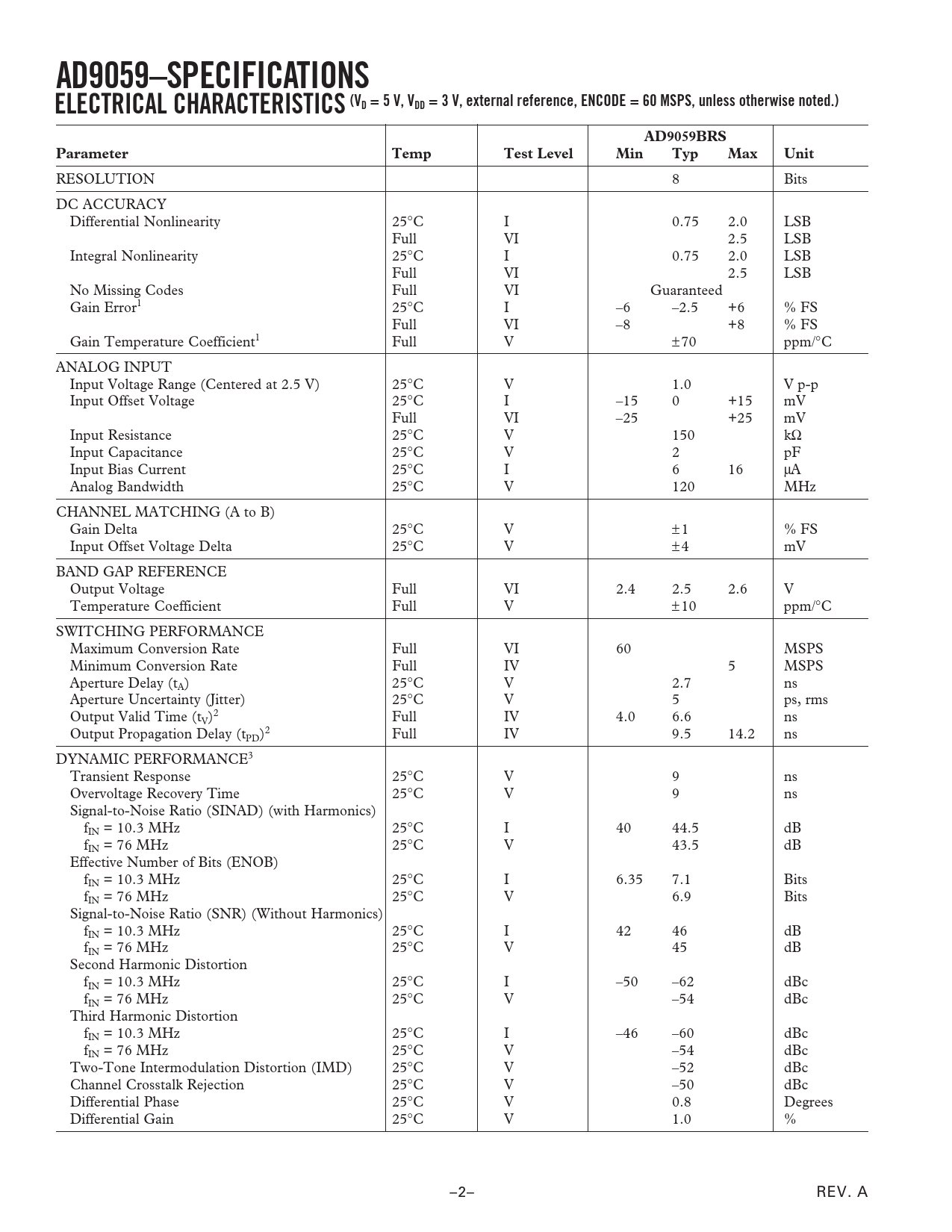

AD9059–SPECIFICATIONS ELECTRICAL CHARACTERISTICS (VD = 5 V, VDD = 3 V, external reference, ENCODE = 60 MSPS, unless otherwise noted.) AD9059BRS Parameter Temp Test Level Min Typ Max Unit
RESOLUTION 8 Bits DC ACCURACY Differential Nonlinearity 25°C I 0.75 2.0 LSB Full VI 2.5 LSB Integral Nonlinearity 25°C I 0.75 2.0 LSB Full VI 2.5 LSB No Missing Codes Full VI Guaranteed Gain Error1 25°C I –6 –2.5 +6 % FS Full VI –8 +8 % FS Gain Temperature Coefficient1 Full V ±70 ppm/°C ANALOG INPUT Input Voltage Range (Centered at 2.5 V) 25°C V 1.0 V p-p Input Offset Voltage 25°C I –15 0 +15 mV Full VI –25 +25 mV Input Resistance 25°C V 150 kΩ Input Capacitance 25°C V 2 pF Input Bias Current 25°C I 6 16 µA Analog Bandwidth 25°C V 120 MHz CHANNEL MATCHING (A to B) Gain Delta 25°C V ±1 % FS Input Offset Voltage Delta 25°C V ±4 mV BAND GAP REFERENCE Output Voltage Full VI 2.4 2.5 2.6 V Temperature Coefficient Full V ±10 ppm/°C SWITCHING PERFORMANCE Maximum Conversion Rate Full VI 60 MSPS Minimum Conversion Rate Full IV 5 MSPS Aperture Delay (tA) 25°C V 2.7 ns Aperture Uncertainty (Jitter) 25°C V 5 ps, rms Output Valid Time (tV)2 Full IV 4.0 6.6 ns Output Propagation Delay (tPD)2 Full IV 9.5 14.2 ns DYNAMIC PERFORMANCE3 Transient Response 25°C V 9 ns Overvoltage Recovery Time 25°C V 9 ns Signal-to-Noise Ratio (SINAD) (with Harmonics) fIN = 10.3 MHz 25°C I 40 44.5 dB fIN = 76 MHz 25°C V 43.5 dB Effective Number of Bits (ENOB) fIN = 10.3 MHz 25°C I 6.35 7.1 Bits fIN = 76 MHz 25°C V 6.9 Bits Signal-to-Noise Ratio (SNR) (Without Harmonics) fIN = 10.3 MHz 25°C I 42 46 dB fIN = 76 MHz 25°C V 45 dB Second Harmonic Distortion fIN = 10.3 MHz 25°C I –50 –62 dBc fIN = 76 MHz 25°C V –54 dBc Third Harmonic Distortion fIN = 10.3 MHz 25°C I –46 –60 dBc fIN = 76 MHz 25°C V –54 dBc Two-Tone Intermodulation Distortion (IMD) 25°C V –52 dBc Channel Crosstalk Rejection 25°C V –50 dBc Differential Phase 25°C V 0.8 Degrees Differential Gain 25°C V 1.0 % –2– REV. A Document Outline FEATURES APPLICATIONS PRODUCT DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PIN CONFIGURATION SPECIFICATIONS EXPLANATION OF TEST LEVELS ABSOLUTE MAXIMUM RATINGS ORDERING GUIDE PIN CONFIGURATION PIN FUNCTION DESCRIPTIONS Typical Performance Characteristics THEORY OF OPERATION USING THE AD9059 Analog Inputs Voltage Reference Digital Logic (5 V/3 V Systems) Timing Power Dissipation Applications Evaluation Board OUTLINE DIMENSIONS Revision History
