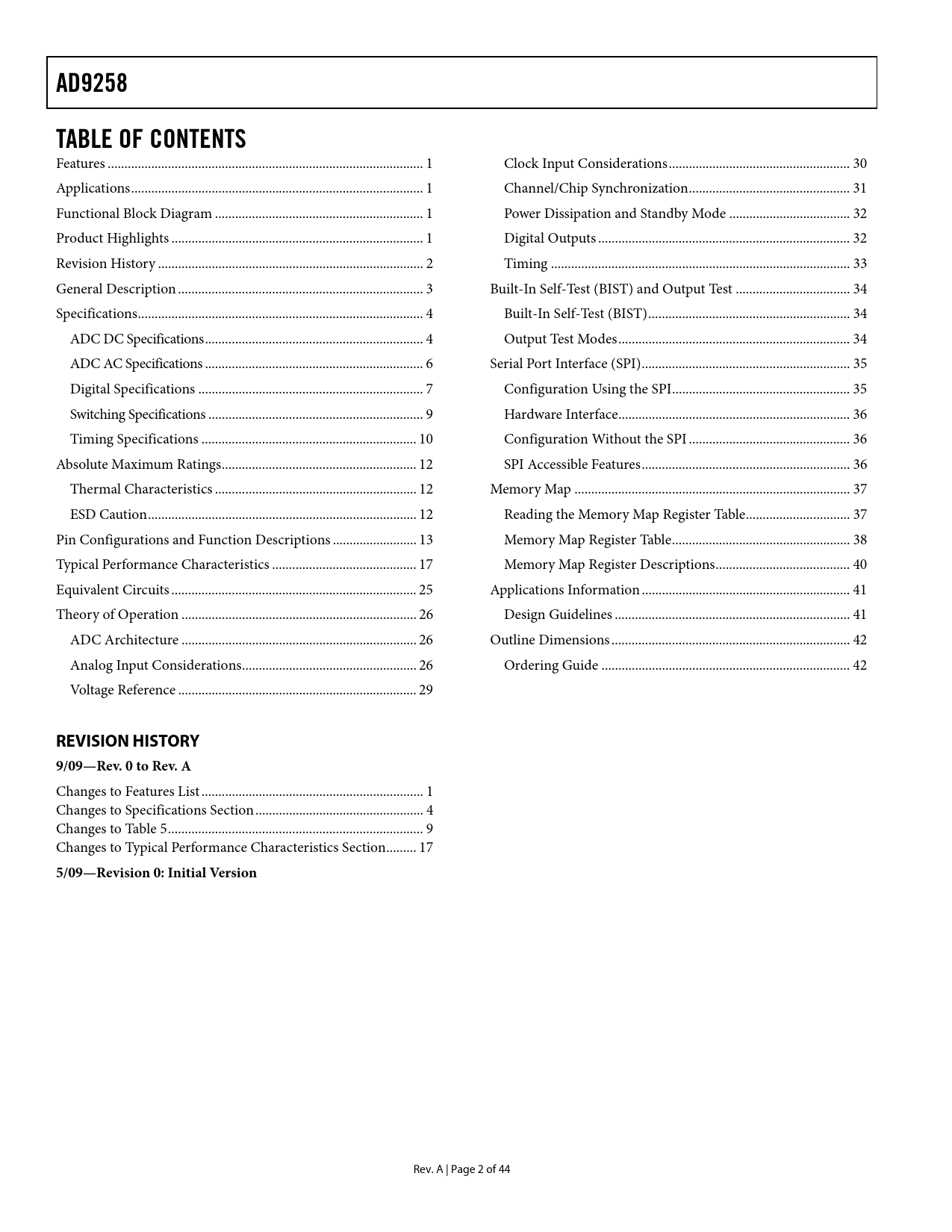

AD9258 TABLE OF CONTENTS
Features .. 1 Clock Input Considerations .. 30 Applications ... 1 Channel/Chip Synchronization .. 31 Functional Block Diagram .. 1 Power Dissipation and Standby Mode .. 32 Product Highlights ... 1 Digital Outputs ... 32 Revision History ... 2 Timing ... 33 General Description ... 3 Built-In Self-Test (BIST) and Output Test .. 34 Specifications ... 4 Built-In Self-Test (BIST) .. 34 ADC DC Specifications ... 4 Output Test Modes ... 34 ADC AC Specifications ... 6 Serial Port Interface (SPI) .. 35 Digital Specifications ... 7 Configuration Using the SPI ... 35 Switching Specifications .. 9 Hardware Interface ... 36 Timing Specifications .. 10 Configuration Without the SPI .. 36 Absolute Maximum Ratings .. 12 SPI Accessible Features .. 36 Thermal Characteristics .. 12 Memory Map .. 37 ESD Caution .. 12 Reading the Memory Map Register Table ... 37 Pin Configurations and Function Descriptions ... 13 Memory Map Register Table ... 38 Typical Performance Characteristics ... 17 Memory Map Register Descriptions .. 40 Equivalent Circuits ... 25 Applications Information .. 41 Theory of Operation .. 26 Design Guidelines .. 41 ADC Architecture .. 26 Outline Dimensions ... 42 Analog Input Considerations .. 26 Ordering Guide .. 42 Voltage Reference ... 29
REVISION HISTORY 9/09—Rev. 0 to Rev. A
Changes to Features List .. 1 Changes to Specifications Section .. 4 Changes to Table 5 .. 9 Changes to Typical Performance Characteristics Section ... 17
5/09—Revision 0: Initial Version
