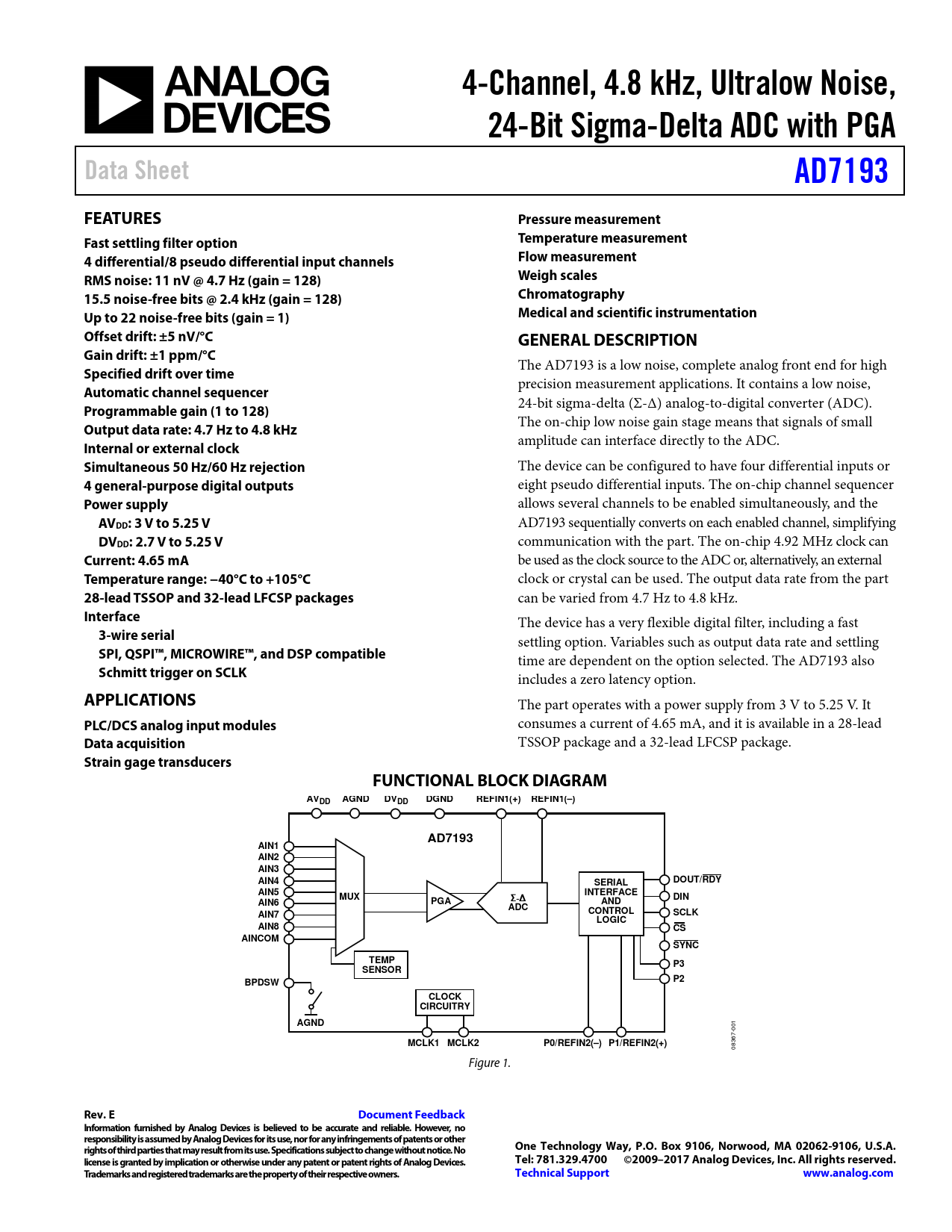

Datasheet AD7193 (Analog Devices)

4-Channel, 4.8 kHz, Ultralow Noise, 24-Bit Sigma-Delta ADC with PGA Data Sheet AD7193 FEATURES Pressure measurement Fast settling filter option Temperature measurement 4 differential/8 pseudo differential input channels Flow measurement RMS noise: 11 nV @ 4.7 Hz (gain = 128) Weigh scales 15.5 noise-free bits @ 2.4 kHz (gain = 128) Chromatography Up to 22 noise-free bits (gain = 1) Medical and scientific instrumentation Offset drift: ±5 nV/°C GENERAL DESCRIPTION Gain drift: ±1 ppm/°C
The AD7193 is a low noise, complete analog front end for high
Specified drift over time
precision measurement applications. It contains a low noise,
Automatic channel sequencer
24-bit sigma-delta (Σ-Δ) analog-to-digital converter (ADC).
Programmable gain (1 to 128) Output data rate: 4.7 Hz to 4.8 kHz
The on-chip low noise gain stage means that signals of small
Internal or external clock
amplitude can interface directly to the ADC.
Simultaneous 50 Hz/60 Hz rejection
The device can be configured to have four differential inputs or
4 general-purpose digital outputs
eight pseudo differential inputs. The on-chip channel sequencer
Power supply
allows several channels to be enabled simultaneously, and the
AVDD: 3 V to 5.25 V
AD7193 sequential y converts on each enabled channel, simplifying
DVDD: 2.7 V to 5.25 V
communication with the part. The on-chip 4.92 MHz clock can
Current: 4.65 mA
be used as the clock source to the ADC or, alternatively, an external
Temperature range: −40°C to +105°C
clock or crystal can be used. The output data rate from the part
28-lead TSSOP and 32-lead LFCSP packages
can be varied from 4.7 Hz to 4.8 kHz.
Interface
The device has a very flexible digital filter, including a fast
3-wire serial
settling option. Variables such as output data rate and settling
SPI, QSPI™, MICROWIRE™, and DSP compatible
time are dependent on the option selected. The AD7193 also
Schmitt trigger on SCLK
includes a zero latency option.
APPLICATIONS
The part operates with a power supply from 3 V to 5.25 V. It
PLC/DCS analog input modules
consumes a current of 4.65 mA, and it is available in a 28-lead
Data acquisition
TSSOP package and a 32-lead LFCSP package.
Strain gage transducers FUNCTIONAL BLOCK DIAGRAM AV DV DD AGND DD DGND REFIN1(+) REFIN1(–) AD7193 AIN1 AIN2 AIN3 AIN4 SERIAL DOUT/RDY AIN5 INTERFACE MUX DIN Σ-Δ AIN6 PGA AND ADC CONTROL AIN7 SCLK LOGIC AIN8 CS AINCOM SYNC TEMP P3 SENSOR BPDSW P2 CLOCK CIRCUITRY AGND
001
MCLK1 MCLK2 P0/REFIN2(–) P1/REFIN2(+)
08367- Figure 1.
