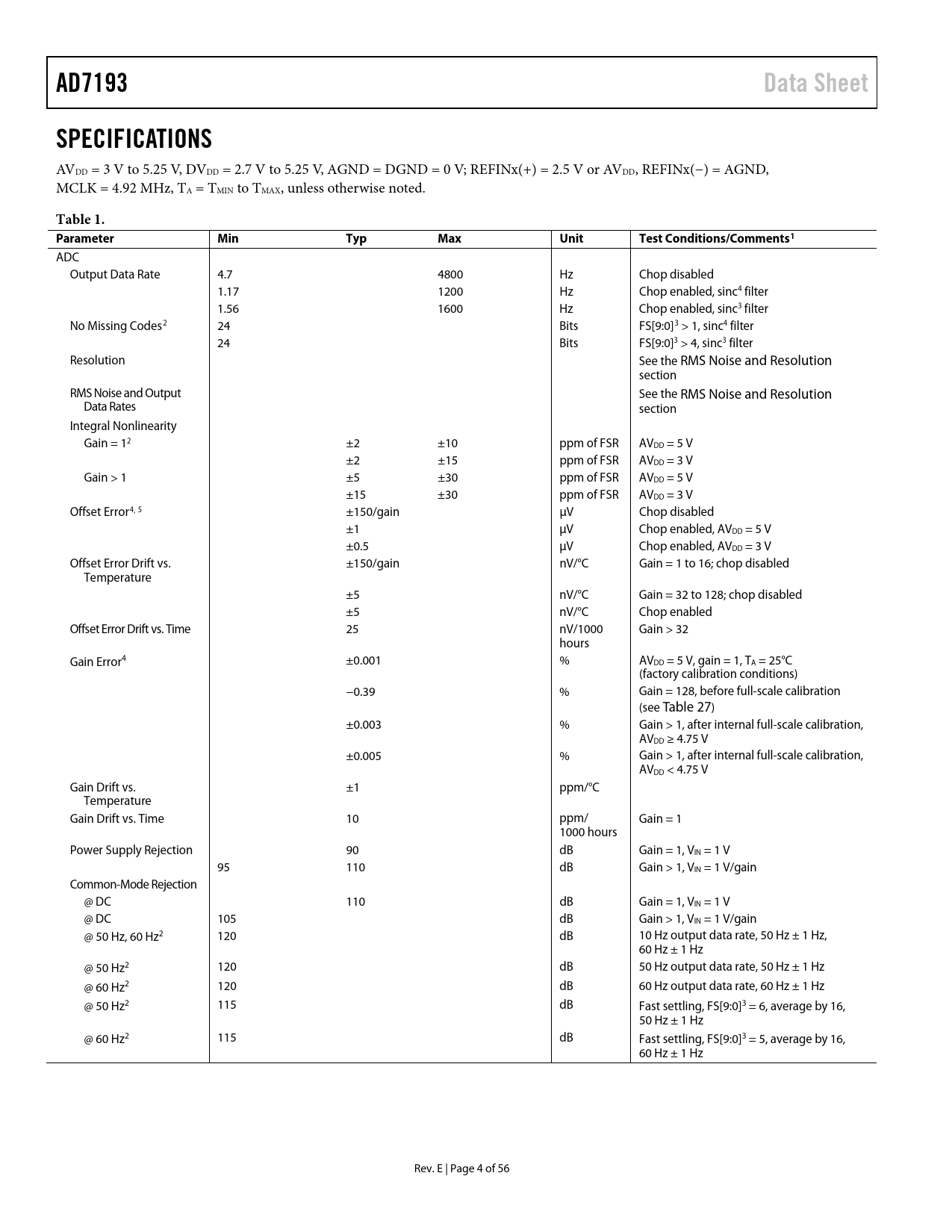

AD7193 Data Sheet SPECIFICATIONS
AVDD = 3 V to 5.25 V, DVDD = 2.7 V to 5.25 V, AGND = DGND = 0 V; REFINx(+) = 2.5 V or AVDD, REFINx(−) = AGND, MCLK = 4.92 MHz, TA = TMIN to TMAX, unless otherwise noted.
Table 1. Parameter Min Typ Max Unit Test Conditions/Comments1
ADC Output Data Rate 4.7 4800 Hz Chop disabled 1.17 1200 Hz Chop enabled, sinc4 filter 1.56 1600 Hz Chop enabled, sinc3 filter No Missing Codes2 24 Bits FS[9:0]3 > 1, sinc4 filter 24 Bits FS[9:0]3 > 4, sinc3 filter Resolution See the RMS Noise and Resolution section RMS Noise and Output See the RMS Noise and Resolution Data Rates section Integral Nonlinearity Gain = 12 ±2 ±10 ppm of FSR AVDD = 5 V ±2 ±15 ppm of FSR AVDD = 3 V Gain > 1 ±5 ±30 ppm of FSR AVDD = 5 V ±15 ±30 ppm of FSR AVDD = 3 V Offset Error4, 5 ±150/gain µV Chop disabled ±1 µV Chop enabled, AVDD = 5 V ±0.5 µV Chop enabled, AVDD = 3 V Offset Error Drift vs. ±150/gain nV/°C Gain = 1 to 16; chop disabled Temperature ±5 nV/°C Gain = 32 to 128; chop disabled ±5 nV/°C Chop enabled Offset Error Drift vs. Time 25 nV/1000 Gain > 32 hours Gain Error4 ±0.001 % AVDD = 5 V, gain = 1, TA = 25°C (factory calibration conditions) −0.39 % Gain = 128, before full-scale calibration (see Table 27) ±0.003 % Gain > 1, after internal ful -scale calibration, AVDD ≥ 4.75 V ±0.005 % Gain > 1, after internal ful -scale calibration, AVDD < 4.75 V Gain Drift vs. ±1 ppm/°C Temperature Gain Drift vs. Time 10 ppm/ Gain = 1 1000 hours Power Supply Rejection 90 dB Gain = 1, VIN = 1 V 95 110 dB Gain > 1, VIN = 1 V/gain Common-Mode Rejection @ DC 110 dB Gain = 1, VIN = 1 V @ DC 105 dB Gain > 1, VIN = 1 V/gain @ 50 Hz, 60 Hz2 120 dB 10 Hz output data rate, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz @ 50 Hz2 120 dB 50 Hz output data rate, 50 Hz ± 1 Hz @ 60 Hz2 120 dB 60 Hz output data rate, 60 Hz ± 1 Hz @ 50 Hz2 115 dB Fast settling, FS[9:0]3 = 6, average by 16, 50 Hz ± 1 Hz @ 60 Hz2 115 dB Fast settling, FS[9:0]3 = 5, average by 16, 60 Hz ± 1 Hz Rev. E | Page 4 of 56 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM REVISION HISTORY SPECIFICATIONS TIMING CHARACTERISTICS Circuit and Timing Diagrams ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS RMS NOISE AND RESOLUTION SINC4 CHOP DISABLED SINC3 CHOP DISABLED FAST SETTLING ON-CHIP REGISTERS COMMUNICATIONS REGISTER RS2, RS1, RS0 = 000 STATUS REGISTER RS2, RS1, RS0 = 000; Power-On/Reset = 0x80 MODE REGISTER RS2, RS1, RS0 = 001; Power-On/Reset = 0x080060 CONFIGURATION REGISTER RS2, RS1, RS0 = 010; Power-On/Reset = 0x000117 DATA REGISTER RS2, RS1, RS0 = 011; Power-On/Reset = 0x000000 ID REGISTER RS2, RS1, RS0 = 100; Power-On/Reset = 0xX2 GPOCON REGISTER RS2, RS1, RS0 = 101; Power-On/Reset = 0x00 OFFSET REGISTER RS2, RS1, RS0 = 110; Power-On/Reset = 0x800000) FULL-SCALE REGISTER RS2, RS1, RS0 = 111; Power-On/Reset = 0x5XXXX0 ADC CIRCUIT INFORMATION OVERVIEW Analog Inputs Multiplexer PGA Reference Detect Burnout Currents Sigma-Delta (Σ-Δ) ADC and Filter Serial Interface Clock Bridge Power-Down Switch Temperature Sensor Digital Outputs Calibration ANALOG INPUT CHANNEL PROGRAMMABLE GAIN ARRAY (PGA) REFERENCE REFERENCE DETECT BIPOLAR/UNIPOLAR CONFIGURATION DATA OUTPUT CODING BURNOUT CURRENTS CHANNEL SEQUENCER DIGITAL INTERFACE Single Conversion Mode Continuous Conversion Mode Continuous Read RESET SYSTEM SYNCHRONIZATION ENABLE PARITY CLOCK BRIDGE POWER-DOWN SWITCH TEMPERATURE SENSOR LOGIC OUTPUTS CALIBRATION DIGITAL FILTER SINC4 FILTER (CHOP DISABLED) Sinc4 Output Data Rate/Settling Time Sinc4 Zero Latency Sinc4 50 Hz/60 Hz Rejection SINC3 FILTER (CHOP DISABLED) Sinc3 Output Data Rate and Settling Time Sinc3 Zero Latency Sinc3 50 Hz/60 Hz Rejection CHOP ENABLED (SINC4 FILTER) Output Data Rate and Settling Time (Sinc4 Chop Enabled) 50 Hz/60 Hz Rejection (Sinc4 Chop Enabled) CHOP ENABLED (SINC3 FILTER) Output Data Rate and Settling Time (Sinc3 Chop Enabled) 50 Hz/60 Hz Rejection (Sinc3 Chop Enabled) FAST SETTLING MODE (SINC4 FILTER) Output Data Rate and Settling Time, Sinc4 Filter 50 Hz/60 Hz Rejection, Sinc4 Filter FAST SETTLING MODE (SINC3 FILTER) Output Data Rate and Settling Time, Sinc3 Filter 50 Hz/60 Hz Rejection, Sinc3 Filter FAST SETTLING MODE (CHOP ENABLED) SUMMARY OF FILTER OPTIONS GROUNDING AND LAYOUT APPLICATIONS INFORMATION FLOWMETER OUTLINE DIMENSIONS ORDERING GUIDE
