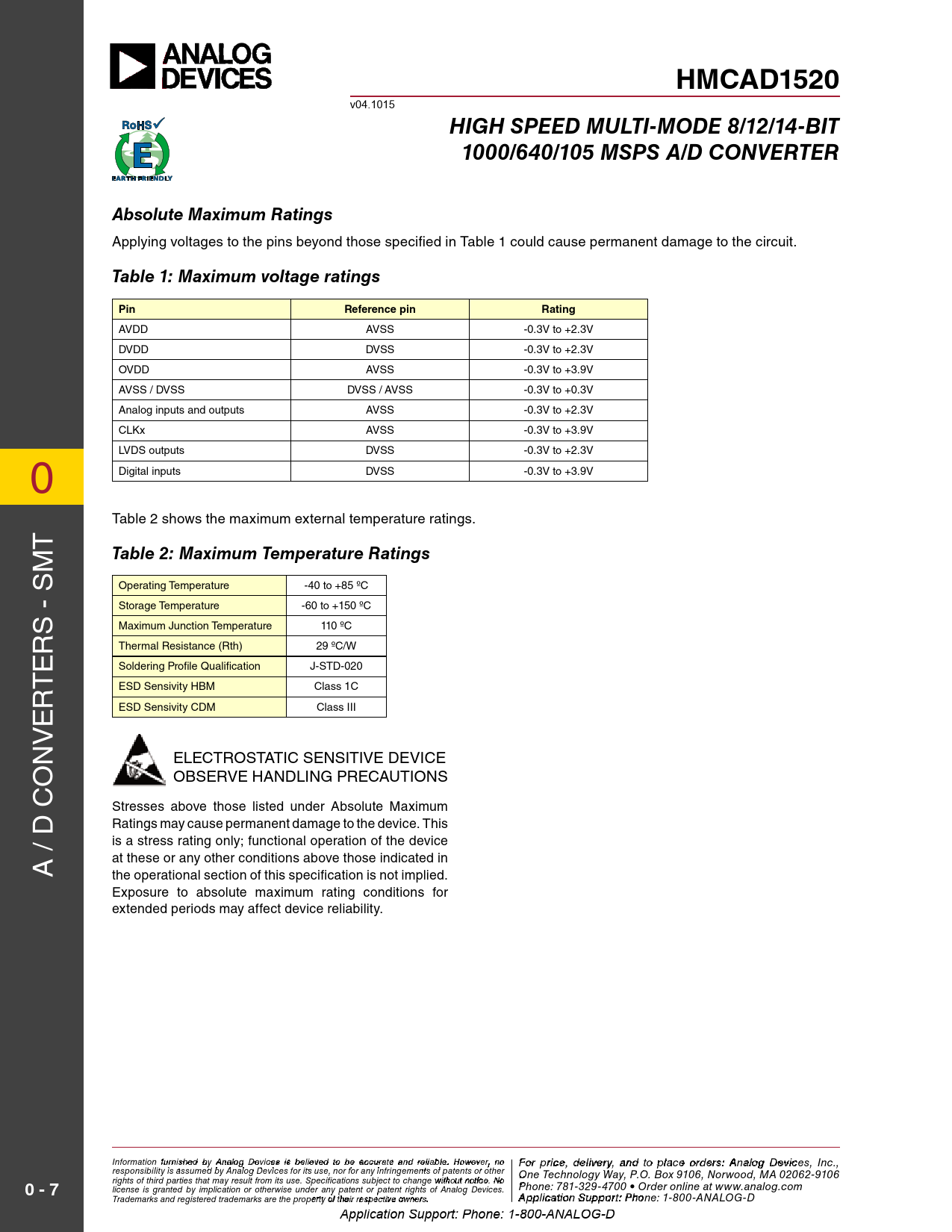

HMCAD1520. HigH Speed Multi-Mode 8/12/14-Bit. 1000/640/105 MSpS A/d Converter. Absolute Maximum ratings
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMCAD1520
v04.1015
HigH Speed Multi-Mode 8/12/14-Bit 1000/640/105 MSpS A/d Converter Absolute Maximum ratings
Applying voltages to the pins beyond those specified in table 1 could cause permanent damage to the circuit.
table 1: Maximum voltage ratings Pin Reference pin Rating
AvDD Avss -0.3v to +2.3v DvDD Dvss -0.3v to +2.3v ovDD Avss -0.3v to +3.9v Avss / Dvss Dvss / Avss -0.3v to +0.3v Analog inputs and outputs Avss -0.3v to +2.3v CLKx Avss -0.3v to +3.9v LvDs outputs Dvss -0.3v to +2.3v 0 Digital inputs Dvss -0.3v to +3.9v table 2 shows the maximum external temperature ratings. t M
table 2: Maximum temperature ratings
s operating temperature -40 to +85 ºC storage temperature -60 to +150 ºC s - Maximum Junction temperature 110 ºC r thermal resistance (rth) 29 ºC/W e t soldering Profile Qualification J-stD-020 r esD sensivity HBM Class 1C e esD sensivity CDM Class III v n eLeCtrostAtIC sensItIve DevICe o oBserve HAnDLInG PreCAUtIons stresses above those listed under Absolute Maximum ratings may cause permanent damage to the device. this /D C is a stress rating only; functional operation of the device A at these or any other conditions above those indicated in the operational section of this specification is not implied. exposure to absolute maximum rating conditions for extended periods may affect device reliability. Informatio For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, n furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other MA 02062-9106One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
0 - 7
rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise Phone: 781-329-4700 • Order online at www.analog.com Phone: 781-329-4700 • Order online at www.analog.com under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D Application Support: Phone: 1-800-ANALOG-D
