Datasheet LTC3400, LTC3400B (Analog Devices) - 10
| Fabricante | Analog Devices |
| Descripción | 600mA, 1.2MHz Micropower Synchronous Boost Converters in ThinSOT |
| Páginas / Página | 12 / 10 — TYPICAL APPLICATIO S. Single Cell AA Cell to. 3V Synchronous Boost … |
| Formato / tamaño de archivo | PDF / 223 Kb |
| Idioma del documento | Inglés |
TYPICAL APPLICATIO S. Single Cell AA Cell to. 3V Synchronous Boost Converter
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC3400/LTC3400B
U TYPICAL APPLICATIO S Single Cell AA Cell to
±
3V Synchronous Boost Converter

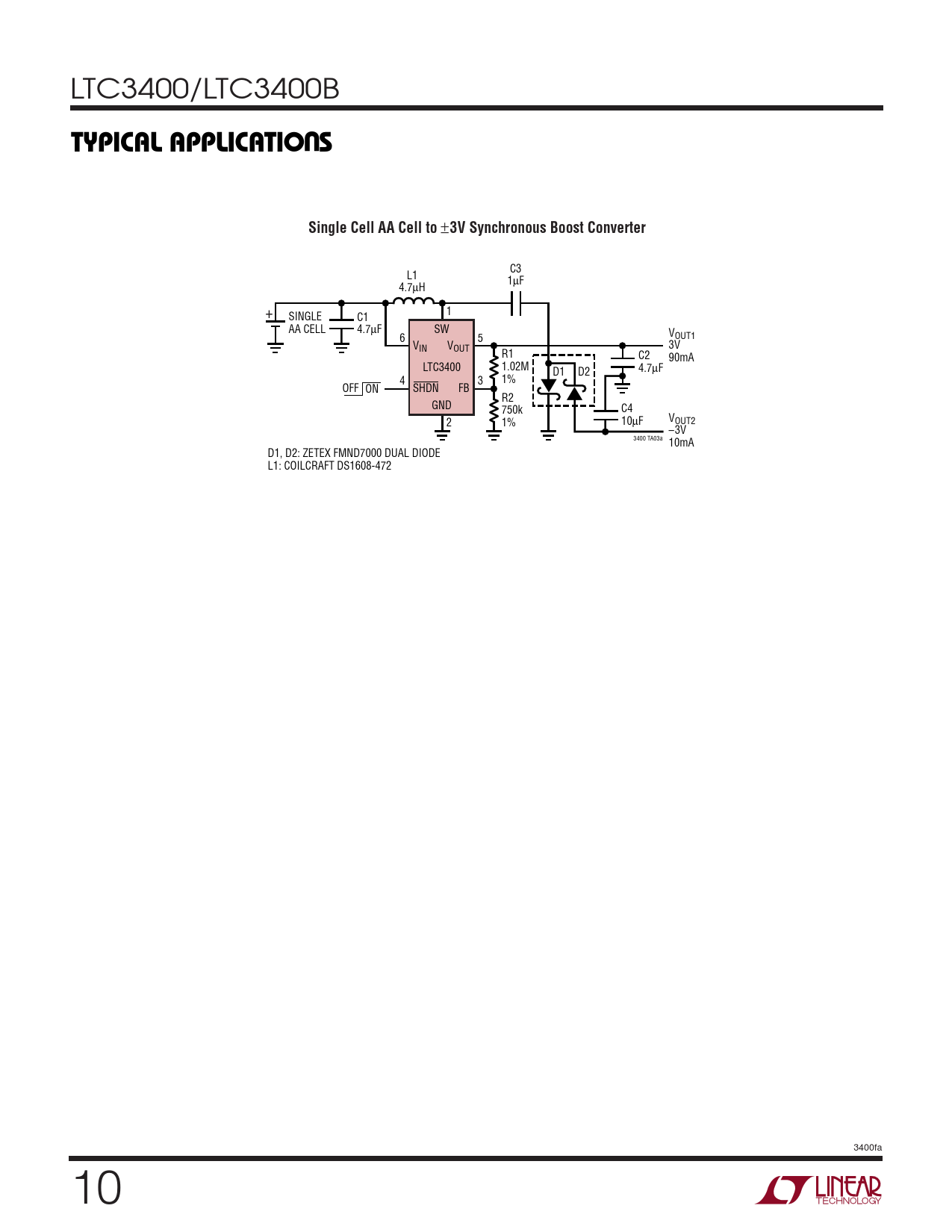

C3 L1 1µF 4.7µH 1 + SINGLE C1 AA CELL 4.7µF SW VOUT1 6 5 V V IN OUT 3V R1 C2 90mA LTC3400 1.02M D1 D2 4.7µF 4 3 1% OFF ON SHDN FB R2 GND 750k C4 2 1% V 10µF OUT2 –3V 3400 TA03a 10mA D1, D2: ZETEX FMND7000 DUAL DIODE L1: COILCRAFT DS1608-472 3400fa 10
