Datasheet LTC3400, LTC3400B (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | 600mA, 1.2MHz Micropower Synchronous Boost Converters in ThinSOT |
| Páginas / Página | 12 / 8 — TYPICAL APPLICATIO S. Single Cell to 3.3V Synchronous Boost Converter. … |
| Formato / tamaño de archivo | PDF / 223 Kb |
| Idioma del documento | Inglés |

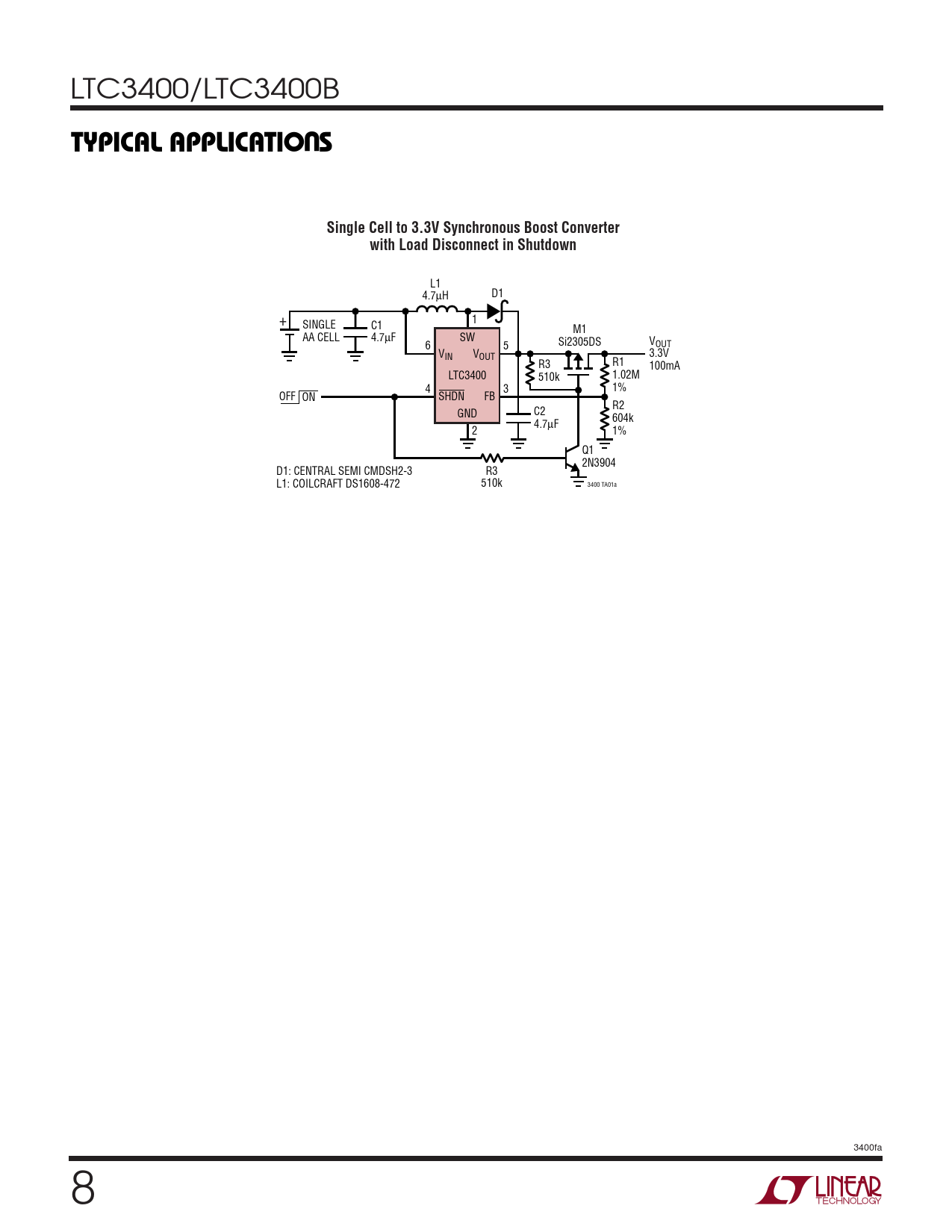

TYPICAL APPLICATIO S. Single Cell to 3.3V Synchronous Boost Converter. with Load Disconnect in Shutdown
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC3400/LTC3400B
U TYPICAL APPLICATIO S Single Cell to 3.3V Synchronous Boost Converter with Load Disconnect in Shutdown
L1 4.7µH D1 1 + SINGLE C1 M1 AA CELL 4.7µF SW Si2305DS VOUT 6 5 V V IN OUT 3.3V R1 R3 100mA LTC3400 1.02M 510k 4 3 1% OFF ON SHDN FB R2 GND C2 604k 4.7µF 2 1% Q1 2N3904 D1: CENTRAL SEMI CMDSH2-3 R3 L1: COILCRAFT DS1608-472 510k 3400 TA01a 3400fa 8
