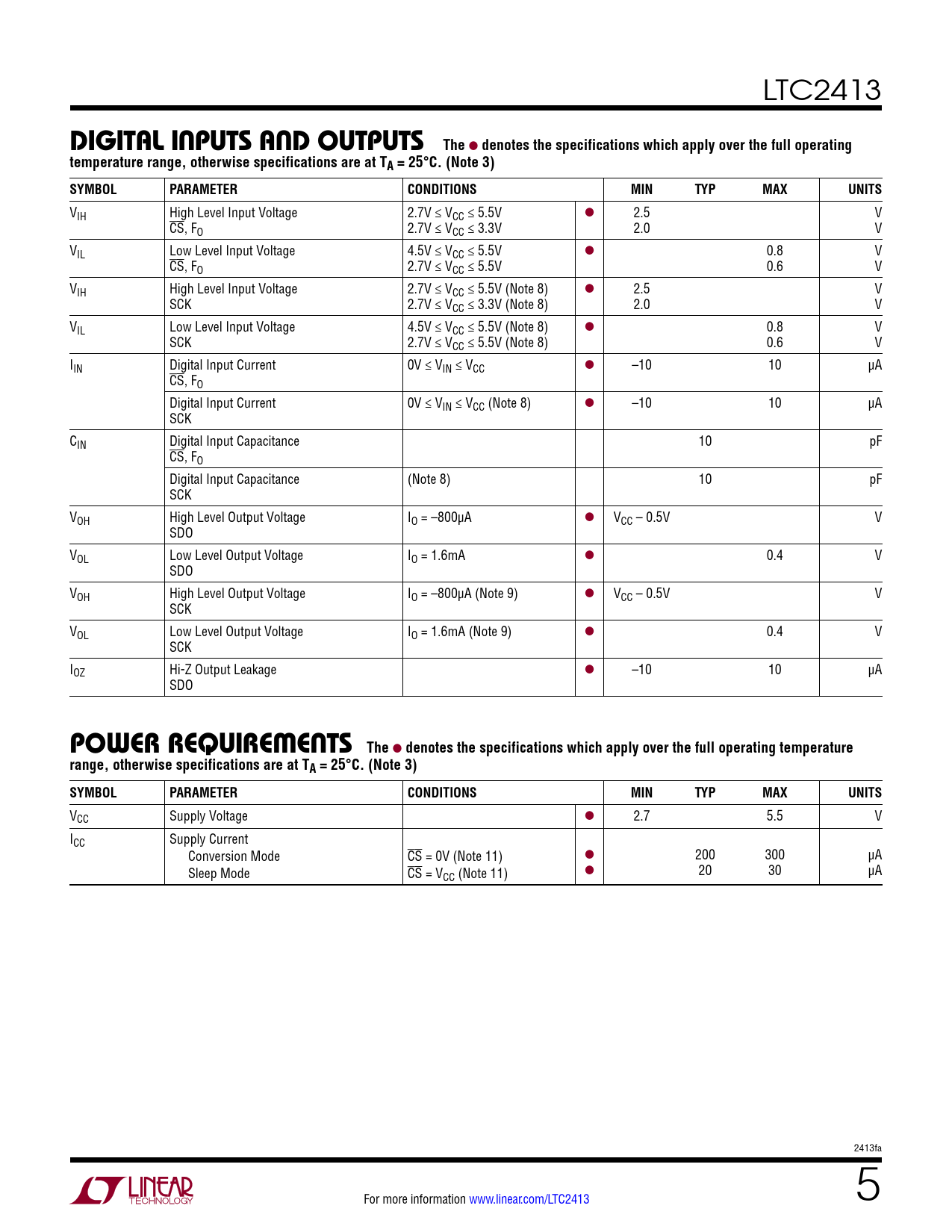

LTC2413
D igiTal inpuTs anD ouTpuTs The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIH High Level Input Voltage 2.7V ≤ VCC ≤ 5.5V l 2.5 V CS, FO 2.7V ≤ VCC ≤ 3.3V 2.0 V VIL Low Level Input Voltage 4.5V ≤ VCC ≤ 5.5V l 0.8 V CS, FO 2.7V ≤ VCC ≤ 5.5V 0.6 V VIH High Level Input Voltage 2.7V ≤ VCC ≤ 5.5V (Note 8) l 2.5 V SCK 2.7V ≤ VCC ≤ 3.3V (Note 8) 2.0 V VIL Low Level Input Voltage 4.5V ≤ VCC ≤ 5.5V (Note 8) l 0.8 V SCK 2.7V ≤ VCC ≤ 5.5V (Note 8) 0.6 V IIN Digital Input Current 0V ≤ VIN ≤ VCC l –10 10 µA CS, FO Digital Input Current 0V ≤ VIN ≤ VCC (Note 8) l –10 10 µA SCK CIN Digital Input Capacitance 10 pF CS, FO Digital Input Capacitance (Note 8) 10 pF SCK VOH High Level Output Voltage IO = –800µA l VCC – 0.5V V SDO VOL Low Level Output Voltage IO = 1.6mA l 0.4 V SDO VOH High Level Output Voltage IO = –800µA (Note 9) l VCC – 0.5V V SCK VOL Low Level Output Voltage IO = 1.6mA (Note 9) l 0.4 V SCK IOZ Hi-Z Output Leakage l –10 10 µA SDO
power requireMenTs The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VCC Supply Voltage l 2.7 5.5 V ICC Supply Current Conversion Mode CS = 0V (Note 11) l 200 300 µA Sleep Mode CS = V 20 30 µA CC (Note 11) l 2413fa For more information www.linear.com/LTC2413 5
