absoluTe MaxiMuM raTings. pin conFiguraTion. (Notes 1, 2). orDer inForMaTion LEAD FREE FINISH. TAPE AND REEL. PART MARKING
Línea de modelo para esta hoja de datos
Versión de texto del documento

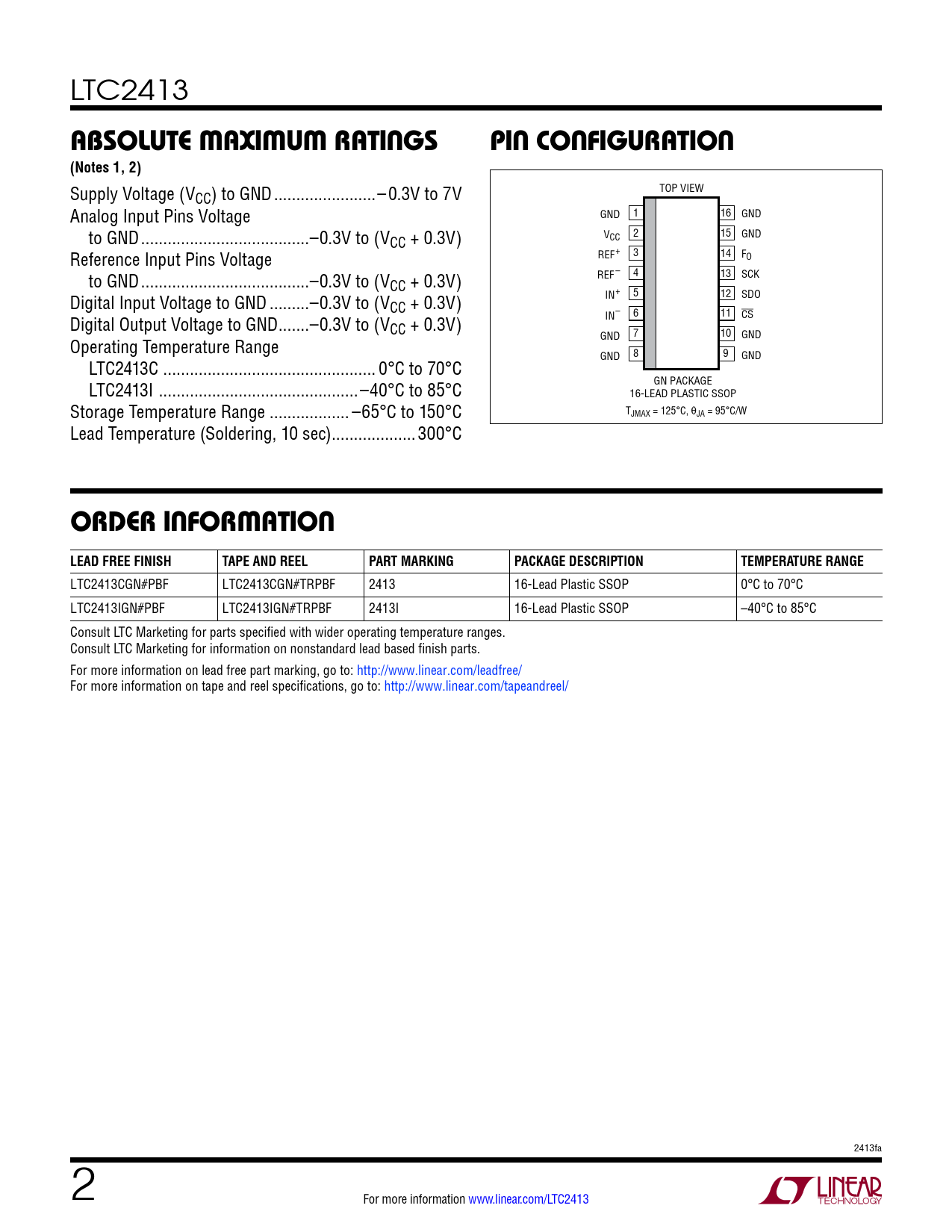

LTC2413
absoluTe MaxiMuM raTings pin conFiguraTion (Notes 1, 2)
Supply Voltage (V TOP VIEW CC) to GND ...– 0.3V to 7V Analog Input Pins Voltage GND 1 16 GND to GND ..–0.3V to (V V 2 15 CC + 0.3V) CC GND Reference Input Pins Voltage REF+ 3 14 FO to GND ..–0.3V to (V REF– 4 13 SCK CC + 0.3V) Digital Input Voltage to GND ...–0.3V to (V IN+ 5 12 SDO CC + 0.3V) IN– 6 Digital Output Voltage to GND ...–0.3V to (V 11 CS CC + 0.3V) 7 GND 10 Operating Temperature Range GND 8 GND 9 GND LTC2413C .. 0°C to 70°C LTC2413I ...–40°C to 85°C GN PACKAGE 16-LEAD PLASTIC SSOP Storage Temperature Range .. –65°C to 150°C TJMAX = 125°C, θJA = 95°C/W Lead Temperature (Soldering, 10 sec) ...300°C
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2413CGN#PBF LTC2413CGN#TRPBF 2413 16-Lead Plastic SSOP 0°C to 70°C LTC2413IGN#PBF LTC2413IGN#TRPBF 2413I 16-Lead Plastic SSOP –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on nonstandard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 2413fa 2 For more information www.linear.com/LTC2413
