Datasheet LTC2383-16 (Analog Devices) - 9
| Fabricante | Analog Devices |
| Descripción | 16-Bit, 1Msps, Low Power SAR ADC with Serial Interface |
| Páginas / Página | 26 / 9 — TIMING DIAGRAM. Conversion Timing Using the Serial Interface |
| Formato / tamaño de archivo | PDF / 2.1 Mb |
| Idioma del documento | Inglés |

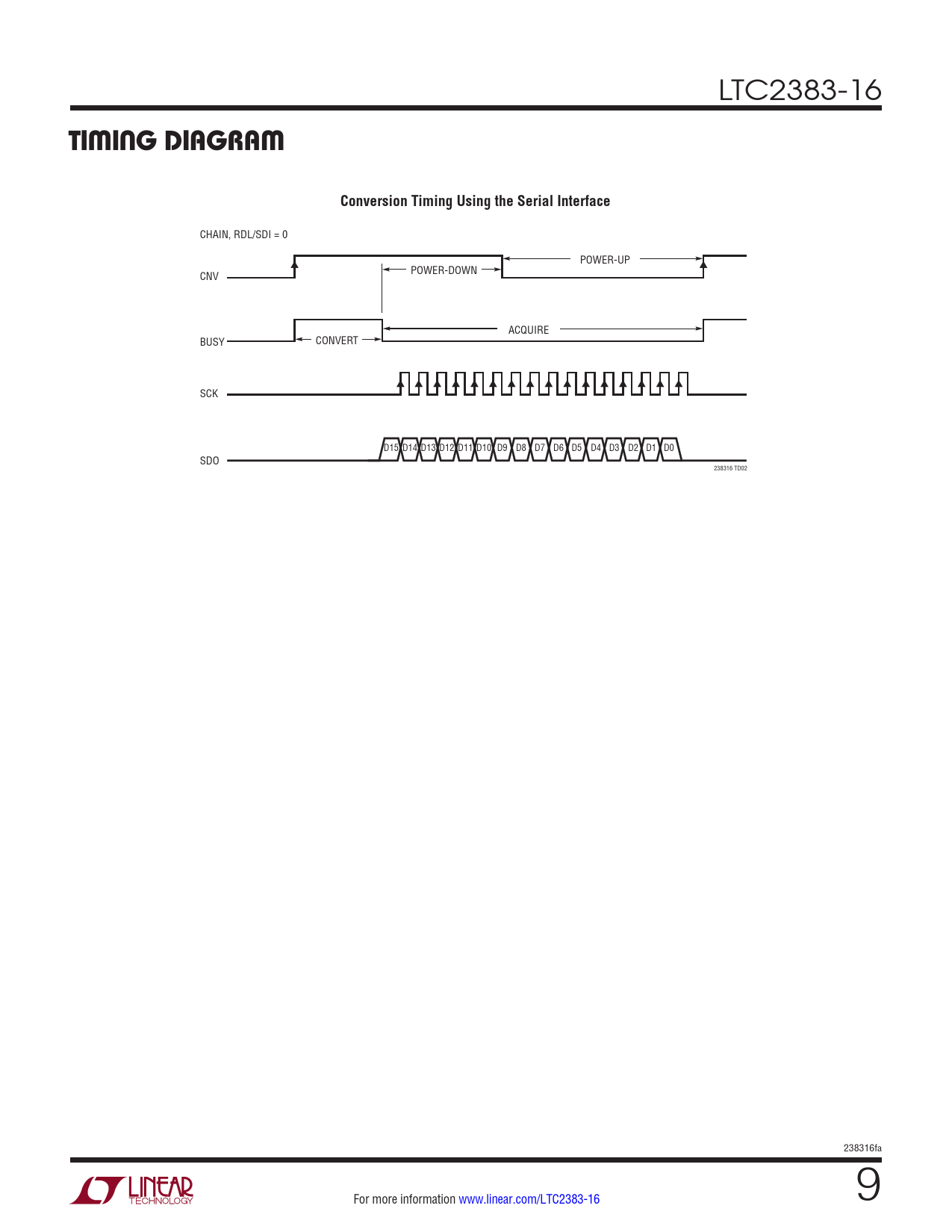

TIMING DIAGRAM. Conversion Timing Using the Serial Interface
Línea de modelo para esta hoja de datos
- LTC2383CDE-16#PBF LTC2383CDE-16#PBF LTC2383CDE-16#TRPBF LTC2383CDE-16#TRPBF LTC2383CMS-16#PBF LTC2383CMS-16#PBF LTC2383CMS-16#TRPBF LTC2383CMS-16#TRPBF LTC2383HMS-16#PBF LTC2383HMS-16#PBF LTC2383HMS-16#TRPBF LTC2383HMS-16#TRPBF LTC2383IDE-16#PBF LTC2383IDE-16#PBF LTC2383IDE-16#TRPBF LTC2383IDE-16#TRPBF LTC2383IMS-16#PBF LTC2383IMS-16#PBF LTC2383IMS-16#TRPBF LTC2383IMS-16#TRPBF
Versión de texto del documento
LTC2383-16
TIMING DIAGRAM Conversion Timing Using the Serial Interface
CHAIN, RDL/SDI = 0 POWER-UP POWER-DOWN CNV ACQUIRE BUSY CONVERT SCK D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 SDO 238316 TD02 238316fa For more information www.linear.com/LTC2383-16 9
TIMING DIAGRAM Conversion Timing Using the Serial Interface
CHAIN, RDL/SDI = 0 POWER-UP POWER-DOWN CNV ACQUIRE BUSY CONVERT SCK D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 SDO 238316 TD02 238316fa For more information www.linear.com/LTC2383-16 9
