APPLICATIONS INFORMATION OVERVIEW
1LSB = FS/65536 111...111 The LTC2370-16 is a low noise, low power, high speed 16-bit 111...110 successive approximation register (SAR) ADC. Operating 111...101 from a single 2.5V supply, the LTC2370-16 supports a 111...100 0V to VREF pseudo-differential unipolar input range with VREF ranging from 2.5V to 5.1V, making it ideal for high OUTPUT CODE UNIPOLAR performance applications which require a wide dynamic ZERO 000...011 range. The LTC2370-16 achieves ±0.85LSB INL max, no 000...010 missing codes at 16 bits and 94dB SNR. 000...001 000...000 Fast 2Msps throughput with no cycle latency makes the 0V 1 FS – 1LSB LSB LTC2370-16 ideally suited for a wide variety of high speed INPUT VOLTAGE (V) 237016 F02 applications. An internal oscillator sets the conversion time,

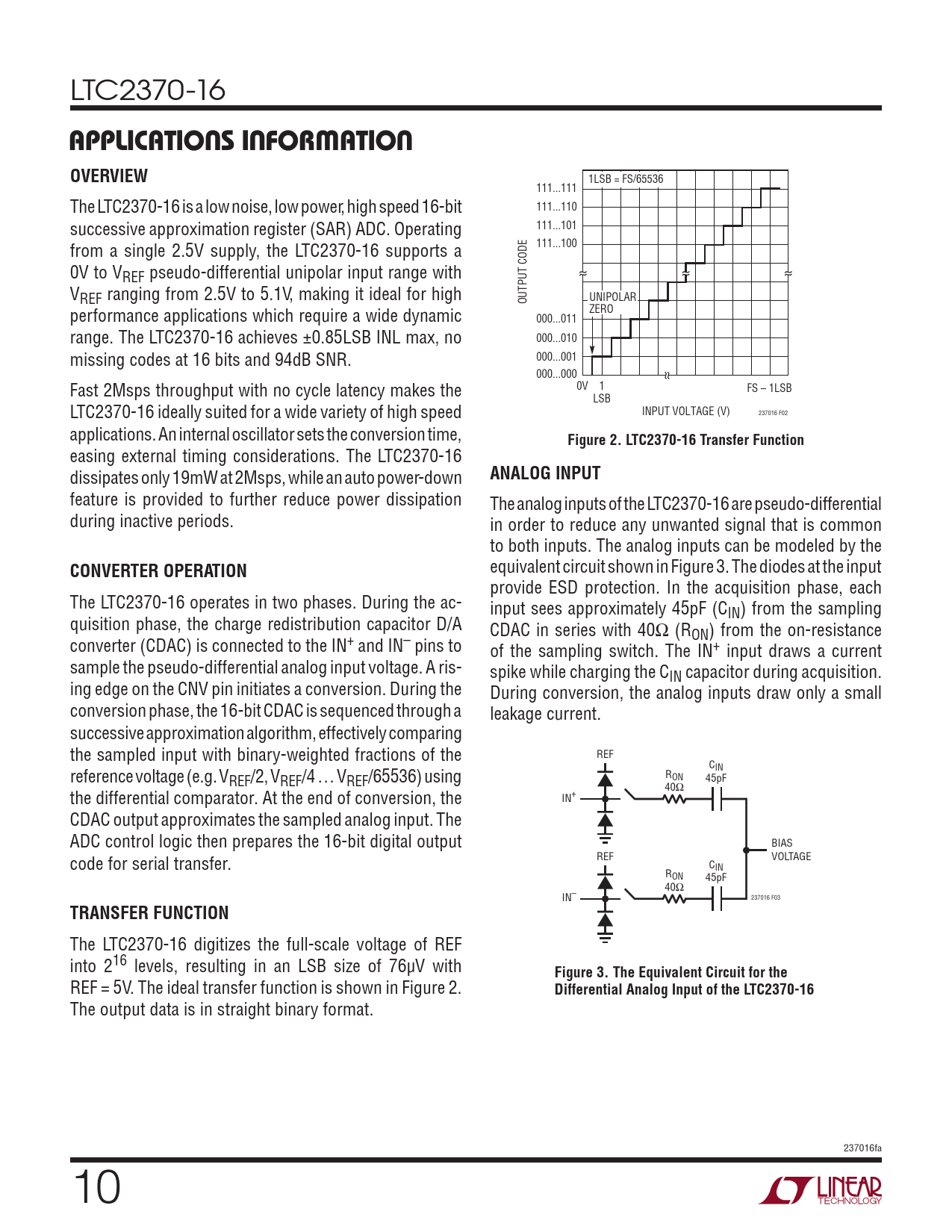

Figure 2. LTC2370-16 Transfer Function
easing external timing considerations. The LTC2370-16 dissipates only 19mW at 2Msps, while an auto power-down
ANALOG INPUT
feature is provided to further reduce power dissipation The analog inputs of the LTC2370-16 are pseudo-differential during inactive periods. in order to reduce any unwanted signal that is common to both inputs. The analog inputs can be modeled by the
CONVERTER OPERATION
equivalent circuit shown in Figure 3. The diodes at the input provide ESD protection. In the acquisition phase, each The LTC2370-16 operates in two phases. During the ac- input sees approximately 45pF (C quisition phase, the charge redistribution capacitor D/A IN) from the sampling CDAC in series with 40Ω (R converter (CDAC) is connected to the IN+ and IN– pins to ON) from the on-resistance of the sampling switch. The IN+ input draws a current sample the pseudo-differential analog input voltage. A ris- spike while charging the CIN capacitor during acquisition. ing edge on the CNV pin initiates a conversion. During the During conversion, the analog inputs draw only a small conversion phase, the 16-bit CDAC is sequenced through a leakage current. successive approximation algorithm, effectively comparing the sampled input with binary-weighted fractions of the REF reference voltage (e.g. V CIN REF/2, VREF/4 … VREF/65536) using RON 45pF the differential comparator. At the end of conversion, the 40Ω IN+ CDAC output approximates the sampled analog input. The ADC control logic then prepares the 16-bit digital output BIAS code for serial transfer. REF VOLTAGE C R IN ON 45pF 40Ω IN– 237016 F03
TRANSFER FUNCTION
The LTC2370-16 digitizes the full-scale voltage of REF into 216 levels, resulting in an LSB size of 76µV with
Figure 3. The Equivalent Circuit for the
REF = 5V. The ideal transfer function is shown in Figure 2.
Differential Analog Input of the LTC2370-16
The output data is in straight binary format. 237016fa 10 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Converter Characteristics Dynamic Accuracy Reference Input Digital Inputs And Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagram Applications Information Timing Diagrams Board Layout Package Description Revision History Typical Application Related Parts
