Datasheet LTC2370-16 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | 16-Bit, 2Msps, Pseudo- Differential Unipolar SAR ADC with 94dB SNR |
| Páginas / Página | 24 / 2 — ABSOLUTE MAXIMUM RATINGS (Notes 1, 2). PIN CONFIGURATION. ORDER … |
| Formato / tamaño de archivo | PDF / 546 Kb |
| Idioma del documento | Inglés |
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2). PIN CONFIGURATION. ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Línea de modelo para esta hoja de datos
- LTC2370CDE-16#PBF LTC2370CDE-16#PBF LTC2370CDE-16#TRPBF LTC2370CDE-16#TRPBF LTC2370CMS-16#PBF LTC2370CMS-16#PBF LTC2370CMS-16#TRPBF LTC2370CMS-16#TRPBF LTC2370HMS-16#PBF LTC2370HMS-16#PBF LTC2370HMS-16#TRPBF LTC2370HMS-16#TRPBF LTC2370IDE-16#PBF LTC2370IDE-16#PBF LTC2370IDE-16#TRPBF LTC2370IDE-16#TRPBF LTC2370IMS-16#PBF LTC2370IMS-16#PBF LTC2370IMS-16#TRPBF LTC2370IMS-16#TRPBF
Versión de texto del documento
LTC2370-16

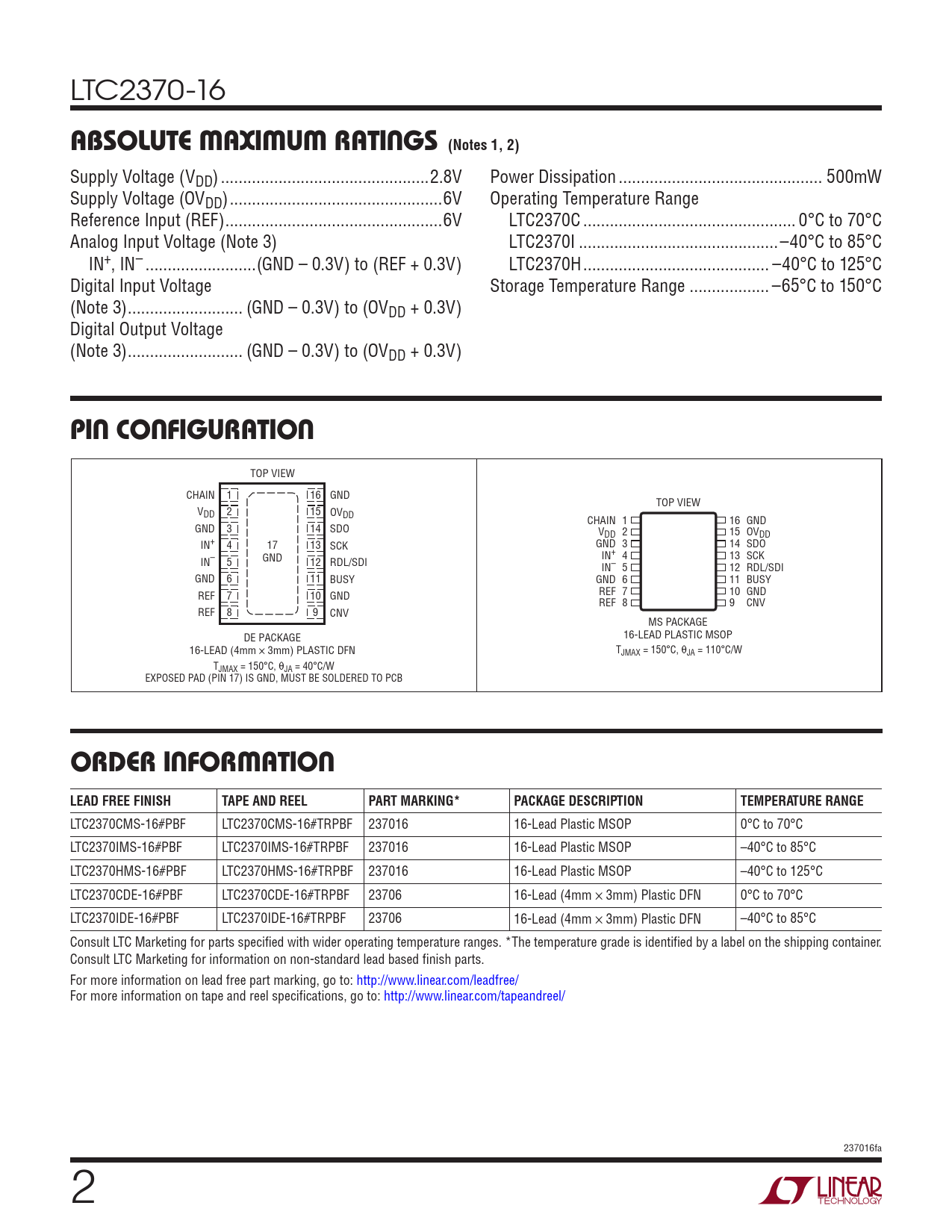

ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)
Supply Voltage (VDD) ...2.8V Power Dissipation .. 500mW Supply Voltage (OVDD) ..6V Operating Temperature Range Reference Input (REF) ...6V LTC2370C .. 0°C to 70°C Analog Input Voltage (Note 3) LTC2370I ...–40°C to 85°C IN+, IN– ...(GND – 0.3V) to (REF + 0.3V) LTC2370H .. –40°C to 125°C Digital Input Voltage Storage Temperature Range .. –65°C to 150°C (Note 3) .. (GND – 0.3V) to (OVDD + 0.3V) Digital Output Voltage (Note 3) .. (GND – 0.3V) to (OVDD + 0.3V)
PIN CONFIGURATION
TOP VIEW CHAIN 1 16 GND TOP VIEW VDD 2 15 OVDD CHAIN 1 16 GND GND 3 14 SDO VDD 2 15 OVDD IN+ 4 17 13 SCK GND 3 14 SDO GND IN– 5 12 IN+ 4 13 SCK RDL/SDI IN– 5 12 RDL/SDI GND 6 11 BUSY GND 6 11 BUSY REF 7 10 GND REF 7 10 GND REF 8 9 CNV REF 8 9 CNV MS PACKAGE DE PACKAGE 16-LEAD PLASTIC MSOP 16-LEAD (4mm × 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 110°C/W TJMAX = 150°C, θJA = 40°C/W EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2370CMS-16#PBF LTC2370CMS-16#TRPBF 237016 16-Lead Plastic MSOP 0°C to 70°C LTC2370IMS-16#PBF LTC2370IMS-16#TRPBF 237016 16-Lead Plastic MSOP –40°C to 85°C LTC2370HMS-16#PBF LTC2370HMS-16#TRPBF 237016 16-Lead Plastic MSOP –40°C to 125°C LTC2370CDE-16#PBF LTC2370CDE-16#TRPBF 23706 16-Lead (4mm × 3mm) Plastic DFN 0°C to 70°C LTC2370IDE-16#PBF LTC2370IDE-16#TRPBF 23706 16-Lead (4mm × 3mm) Plastic DFN –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 237016fa 2 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Converter Characteristics Dynamic Accuracy Reference Input Digital Inputs And Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagram Applications Information Timing Diagrams Board Layout Package Description Revision History Typical Application Related Parts
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)
Supply Voltage (VDD) ...2.8V Power Dissipation .. 500mW Supply Voltage (OVDD) ..6V Operating Temperature Range Reference Input (REF) ...6V LTC2370C .. 0°C to 70°C Analog Input Voltage (Note 3) LTC2370I ...–40°C to 85°C IN+, IN– ...(GND – 0.3V) to (REF + 0.3V) LTC2370H .. –40°C to 125°C Digital Input Voltage Storage Temperature Range .. –65°C to 150°C (Note 3) .. (GND – 0.3V) to (OVDD + 0.3V) Digital Output Voltage (Note 3) .. (GND – 0.3V) to (OVDD + 0.3V)
