Datasheet LTC2262-12 (Analog Devices) - 3
| Fabricante | Analog Devices |
| Descripción | 12-Bit, 150Msps Ultralow Power 1.8V ADC |
| Páginas / Página | 28 / 3 — ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE … |
| Formato / tamaño de archivo | PDF / 546 Kb |
| Idioma del documento | Inglés |

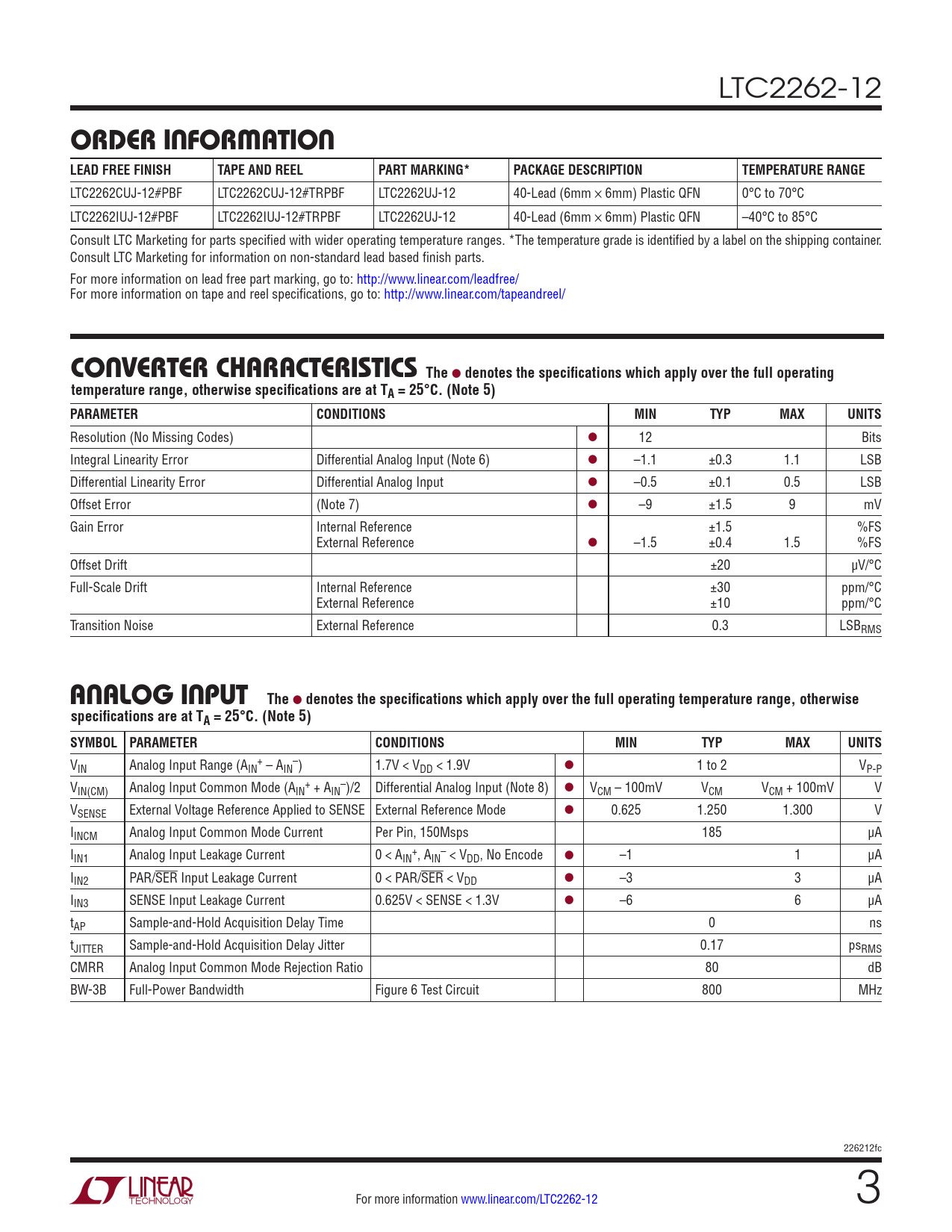

ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE DESCRIPTION. TEMPERATURE RANGE
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC2262-12
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2262CUJ-12#PBF LTC2262CUJ-12#TRPBF LTC2262UJ-12 40-Lead (6mm × 6mm) Plastic QFN 0°C to 70°C LTC2262IUJ-12#PBF LTC2262IUJ-12#TRPBF LTC2262UJ-12 40-Lead (6mm × 6mm) Plastic QFN –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
CONVERTER CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 5) PARAMETER CONDITIONS MIN TYP MAX UNITS
Resolution (No Missing Codes) l 12 Bits Integral Linearity Error Differential Analog Input (Note 6) l –1.1 ±0.3 1.1 LSB Differential Linearity Error Differential Analog Input l –0.5 ±0.1 0.5 LSB Offset Error (Note 7) l –9 ±1.5 9 mV Gain Error Internal Reference ±1.5 %FS External Reference l –1.5 ±0.4 1.5 %FS Offset Drift ±20 µV/°C Full-Scale Drift Internal Reference ±30 ppm/°C External Reference ±10 ppm/°C Transition Noise External Reference 0.3 LSBRMS
ANALOG INPUT The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
V + – IN Analog Input Range (AIN – AIN ) 1.7V < VDD < 1.9V l 1 to 2 VP-P V + – IN(CM) Analog Input Common Mode (AIN + AIN )/2 Differential Analog Input (Note 8) l VCM – 100mV VCM VCM + 100mV V VSENSE External Voltage Reference Applied to SENSE External Reference Mode l 0.625 1.250 1.300 V IINCM Analog Input Common Mode Current Per Pin, 150Msps 185 µA I + – IN1 Analog Input Leakage Current 0 < AIN , AIN < VDD, No Encode l –1 1 µA IIN2 PAR/SER Input Leakage Current 0 < PAR/SER < VDD l –3 3 µA IIN3 SENSE Input Leakage Current 0.625V < SENSE < 1.3V l –6 6 µA tAP Sample-and-Hold Acquisition Delay Time 0 ns tJITTER Sample-and-Hold Acquisition Delay Jitter 0.17 psRMS CMRR Analog Input Common Mode Rejection Ratio 80 dB BW-3B Full-Power Bandwidth Figure 6 Test Circuit 800 MHz 226212fc For more information www.linear.com/LTC2262-12 3 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Typical Performance Characteristics Pin Functions Block Diagram Applications Information Related Parts
