OP113/OP213/OP413. E Grade. F Grade. Parameter. Symbol. Conditions. Min. Typ. Max. Unit. Table 2. Min Typ
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 5 link to page 5

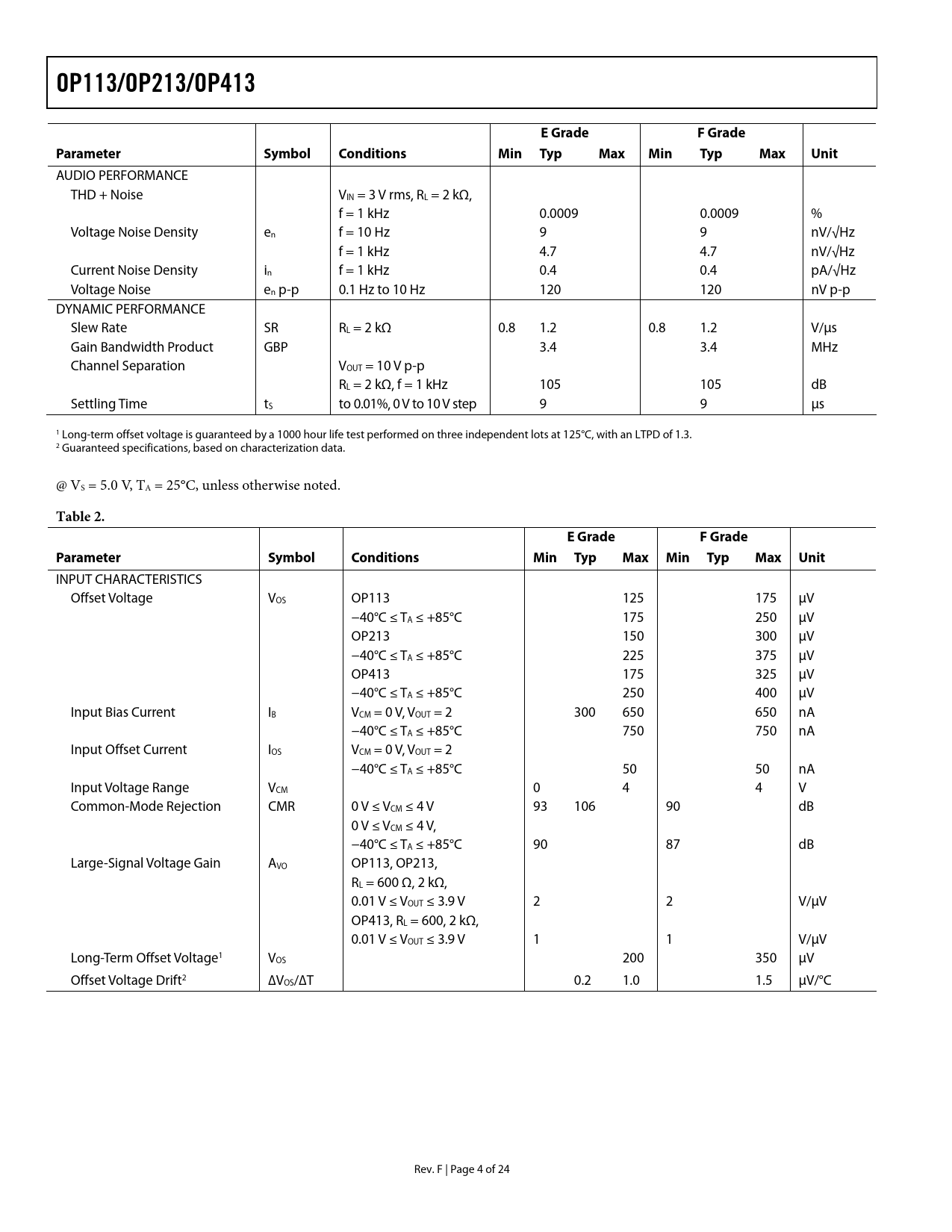

OP113/OP213/OP413 E Grade F Grade Parameter Symbol Conditions Min Typ Max Min Typ Max Unit
AUDIO PERFORMANCE THD + Noise VIN = 3 V rms, RL = 2 kΩ, f = 1 kHz 0.0009 0.0009 % Voltage Noise Density en f = 10 Hz 9 9 nV/√Hz f = 1 kHz 4.7 4.7 nV/√Hz Current Noise Density in f = 1 kHz 0.4 0.4 pA/√Hz Voltage Noise en p-p 0.1 Hz to 10 Hz 120 120 nV p-p DYNAMIC PERFORMANCE Slew Rate SR RL = 2 kΩ 0.8 1.2 0.8 1.2 V/μs Gain Bandwidth Product GBP 3.4 3.4 MHz Channel Separation VOUT = 10 V p-p RL = 2 kΩ, f = 1 kHz 105 105 dB Settling Time tS to 0.01%, 0 V to 10 V step 9 9 μs 1 Long-term offset voltage is guaranteed by a 1000 hour life test performed on three independent lots at 125°C, with an LTPD of 1.3. 2 Guaranteed specifications, based on characterization data. @ VS = 5.0 V, TA = 25°C, unless otherwise noted.
Table 2. E Grade F Grade Parameter Symbol Conditions Min Typ Max Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS OP113 125 175 μV −40°C ≤ TA ≤ +85°C 175 250 μV OP213 150 300 μV −40°C ≤ TA ≤ +85°C 225 375 μV OP413 175 325 μV −40°C ≤ TA ≤ +85°C 250 400 μV Input Bias Current IB VCM = 0 V, VOUT = 2 300 650 650 nA −40°C ≤ TA ≤ +85°C 750 750 nA Input Offset Current IOS VCM = 0 V, VOUT = 2 −40°C ≤ TA ≤ +85°C 50 50 nA Input Voltage Range VCM 0 4 4 V Common-Mode Rejection CMR 0 V ≤ VCM ≤ 4 V 93 106 90 dB 0 V ≤ VCM ≤ 4 V, −40°C ≤ TA ≤ +85°C 90 87 dB Large-Signal Voltage Gain AVO OP113, OP213, RL = 600 Ω, 2 kΩ, 0.01 V ≤ VOUT ≤ 3.9 V 2 2 V/μV OP413, RL = 600, 2 kΩ, 0.01 V ≤ VOUT ≤ 3.9 V 1 1 V/μV Long-Term Offset Voltage1 VOS 200 350 μV Offset Voltage Drift2 ∆VOS/∆T 0.2 1.0 1.5 μV/°C Rev. F | Page 4 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS PHASE REVERSAL OP113 OFFSET ADJUST APPLICATION CIRCUITS A HIGH PRECISION INDUSTRIAL LOAD-CELL SCALE AMPLIFIER A LOW VOLTAGE, SINGLE SUPPLY STRAIN GAGE AMPLIFIER A HIGH ACCURACY LINEARIZED RTD THERMOMETER AMPLIFIER A HIGH ACCURACY THERMOCOUPLE AMPLIFIER AN ULTRALOW NOISE, SINGLE SUPPLY INSTRUMENTATION AMPLIFIER SUPPLY SPLITTER CIRCUIT LOW NOISE VOLTAGE REFERENCE 5 V ONLY STEREO DAC FOR MULTIMEDIA LOW VOLTAGE HEADPHONE AMPLIFIERS LOW NOISE MICROPHONE AMPLIFIER FOR MULTIMEDIA PRECISION VOLTAGE COMPARATOR OUTLINE DIMENSIONS ORDERING GUIDE
