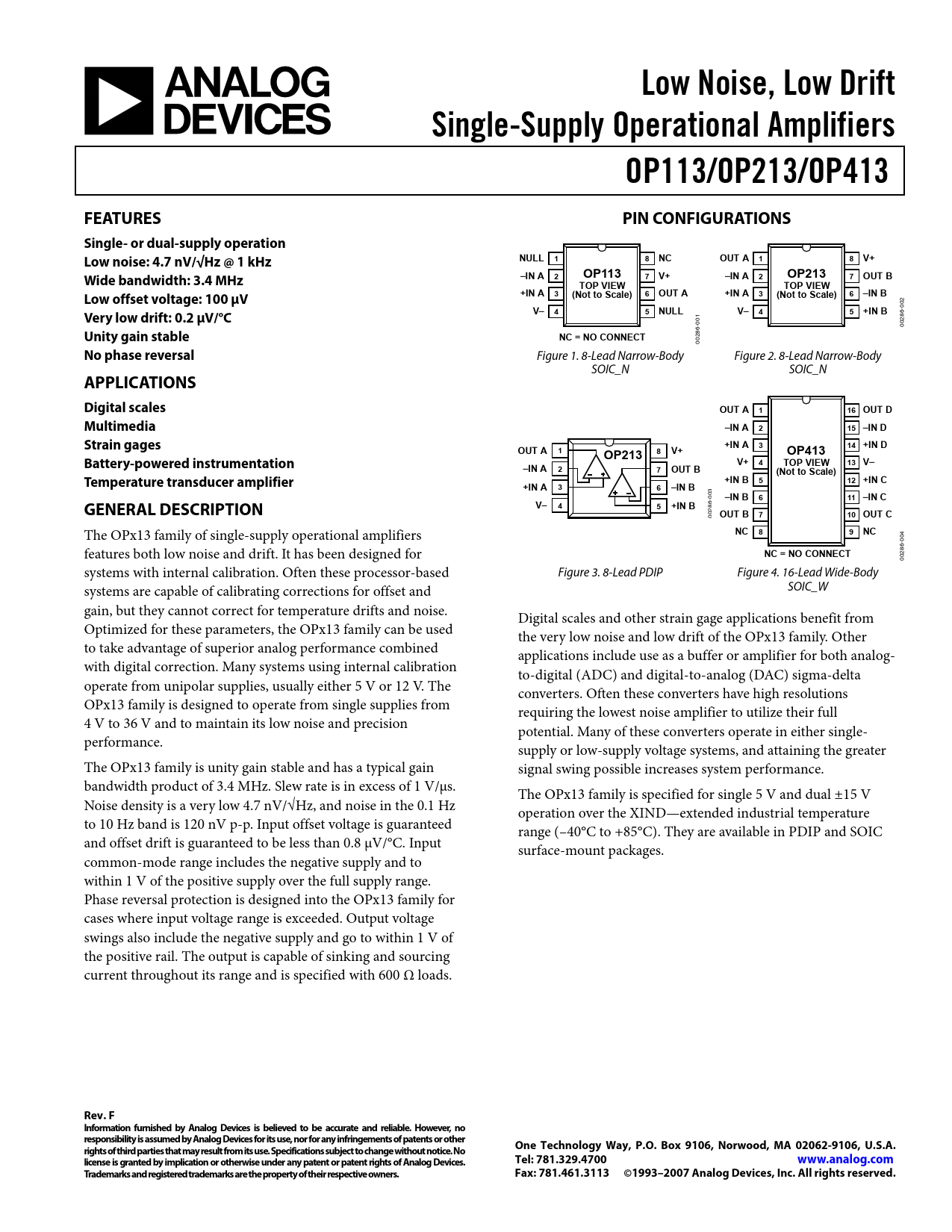

Datasheet OP113, OP213, OP413 (Analog Devices)

Low Noise, Low Drift Single-Supply Operational Amplifiers OP113/OP213/OP413 FEATURES PIN CONFIGURATIONS Single- or dual-supply operation Low noise: 4.7 nV/√Hz @ 1 kHz NULL 1 8 NC OUT A 1 8 V+ OP113 OP213 Wide bandwidth: 3.4 MHz –IN A 2 7 V+ –IN A 2 7 OUT B TOP VIEW TOP VIEW +IN A 3 (Not to Scale) 6 OUT A +IN A 3 (Not to Scale) 6 –IN B Low offset voltage: 100 μV
02
V– 4 5 NULL V– 4 5 +IN B
-0
Very low drift: 0.2 μV/°C
86 01 0 02 0 6-
Unity gain stable NC = NO CONNECT
28 00
No phase reversal
Figure 1. 8-Lead Narrow-Body Figure 2. 8-Lead Narrow-Body SOIC_N SOIC_N
APPLICATIONS Digital scales OUT A 1 16 OUT D Multimedia –IN A 2 15 –IN D Strain gages +IN A 14 +IN D OUT A 3 1 8 V+ OP213 OP413 Battery-powered instrumentation V+ 4 TOP VIEW 13 V– –IN A 2 7 OUT B (Not to Scale) Temperature transducer amplifier +IN B 5 12 +IN C +IN A 3 6 –IN B
3 -00
–IN B 6 11 –IN C
6
GENERAL DESCRIPTION V– 4 5 +IN B
28 00
OUT B 7 10 OUT C
The OPx13 family of single-supply operational amplifiers
NC 8 9 NC
04 0 6- features both low noise and drift. It has been designed for
NC = NO CONNECT
028 0 systems with internal calibration. Often these processor-based Figure 3. 8-Lead PDIP Figure 4. 16-Lead Wide-Body systems are capable of calibrating corrections for offset and SOIC_W gain, but they cannot correct for temperature drifts and noise. Digital scales and other strain gage applications benefit from Optimized for these parameters, the OPx13 family can be used the very low noise and low drift of the OPx13 family. Other to take advantage of superior analog performance combined applications include use as a buffer or amplifier for both analog- with digital correction. Many systems using internal calibration to-digital (ADC) and digital-to-analog (DAC) sigma-delta operate from unipolar supplies, usually either 5 V or 12 V. The converters. Often these converters have high resolutions OPx13 family is designed to operate from single supplies from requiring the lowest noise amplifier to utilize their full 4 V to 36 V and to maintain its low noise and precision potential. Many of these converters operate in either single- performance. supply or low-supply voltage systems, and attaining the greater The OPx13 family is unity gain stable and has a typical gain signal swing possible increases system performance. bandwidth product of 3.4 MHz. Slew rate is in excess of 1 V/μs. The OPx13 family is specified for single 5 V and dual ±15 V Noise density is a very low 4.7 nV/√Hz, and noise in the 0.1 Hz operation over the XIND—extended industrial temperature to 10 Hz band is 120 nV p-p. Input offset voltage is guaranteed range (–40°C to +85°C). They are available in PDIP and SOIC and offset drift is guaranteed to be less than 0.8 μV/°C. Input surface-mount packages. common-mode range includes the negative supply and to within 1 V of the positive supply over the full supply range. Phase reversal protection is designed into the OPx13 family for cases where input voltage range is exceeded. Output voltage swings also include the negative supply and go to within 1 V of the positive rail. The output is capable of sinking and sourcing current throughout its range and is specified with 600 Ω loads.
Rev. F Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©1993–2007 Analog Devices, Inc. All rights reserved.
Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS PHASE REVERSAL OP113 OFFSET ADJUST APPLICATION CIRCUITS A HIGH PRECISION INDUSTRIAL LOAD-CELL SCALE AMPLIFIER A LOW VOLTAGE, SINGLE SUPPLY STRAIN GAGE AMPLIFIER A HIGH ACCURACY LINEARIZED RTD THERMOMETER AMPLIFIER A HIGH ACCURACY THERMOCOUPLE AMPLIFIER AN ULTRALOW NOISE, SINGLE SUPPLY INSTRUMENTATION AMPLIFIER SUPPLY SPLITTER CIRCUIT LOW NOISE VOLTAGE REFERENCE 5 V ONLY STEREO DAC FOR MULTIMEDIA LOW VOLTAGE HEADPHONE AMPLIFIERS LOW NOISE MICROPHONE AMPLIFIER FOR MULTIMEDIA PRECISION VOLTAGE COMPARATOR OUTLINE DIMENSIONS ORDERING GUIDE
