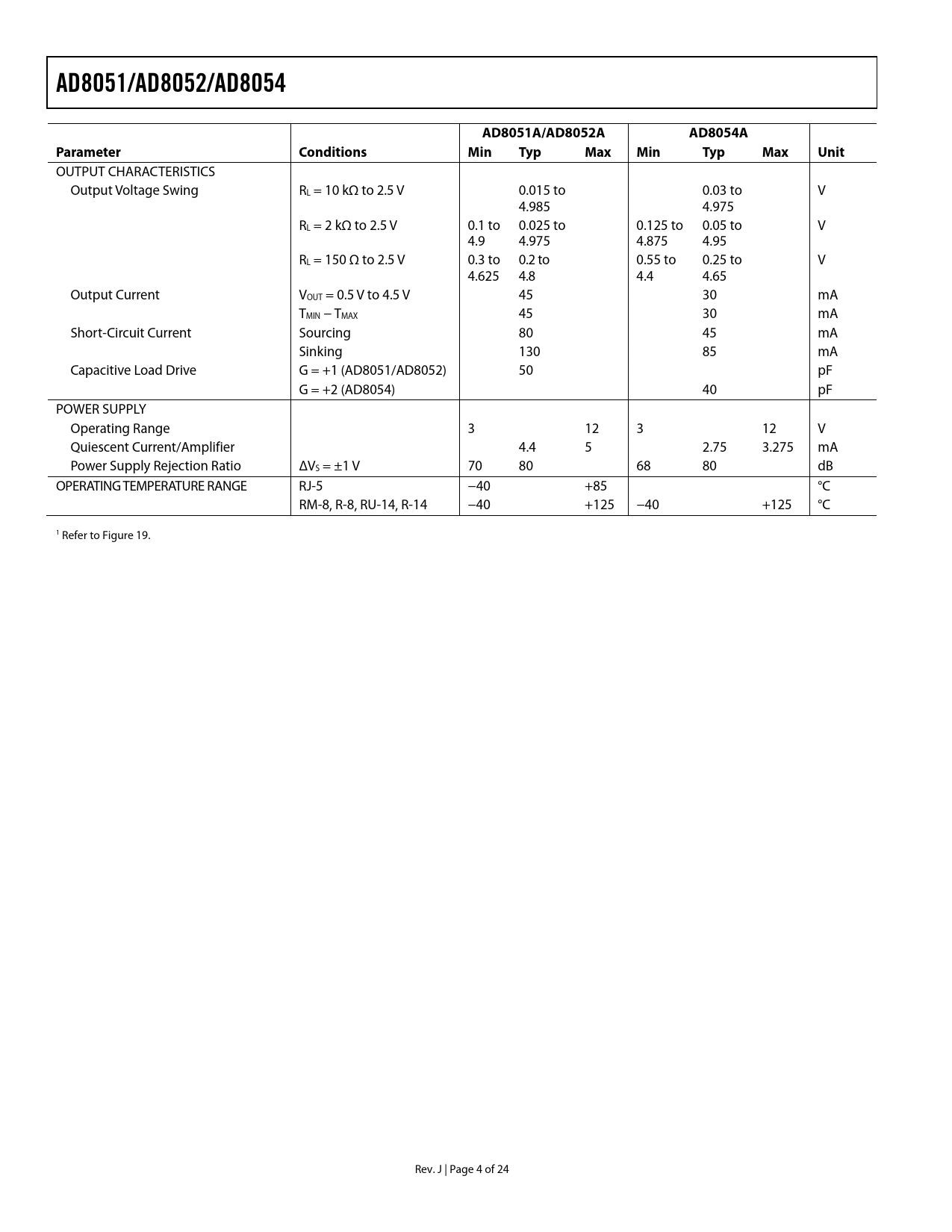

AD8051/AD8052/AD8054 AD8051A/AD8052A AD8054A Parameter Conditions Min Typ Max Min Typ Max Unit
OUTPUT CHARACTERISTICS Output Voltage Swing RL = 10 kΩ to 2.5 V 0.015 to 0.03 to V 4.985 4.975 RL = 2 kΩ to 2.5 V 0.1 to 0.025 to 0.125 to 0.05 to V 4.9 4.975 4.875 4.95 RL = 150 Ω to 2.5 V 0.3 to 0.2 to 0.55 to 0.25 to V 4.625 4.8 4.4 4.65 Output Current VOUT = 0.5 V to 4.5 V 45 30 mA TMIN − TMAX 45 30 mA Short-Circuit Current Sourcing 80 45 mA Sinking 130 85 mA Capacitive Load Drive G = +1 (AD8051/AD8052) 50 pF G = +2 (AD8054) 40 pF POWER SUPPLY Operating Range 3 12 3 12 V Quiescent Current/Amplifier 4.4 5 2.75 3.275 mA Power Supply Rejection Ratio ΔVS = ±1 V 70 80 68 80 dB OPERATING TEMPERATURE RANGE RJ-5 −40 +85 °C RM-8, R-8, RU-14, R-14 −40 +125 −40 +125 °C 1 Refer to Figure 19. Rev. J | Page 4 of 24 Document Outline Features Applications Pin Connections (Top Views) General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance Maximum Power Dissipation ESD Caution Typical Performance Characteristics Theory of Operation Circuit Description Application Information Overdrive Recovery Driving Capacitive Loads Layout Considerations Active Filters Analog-to-Digital and Digital-to-Analog Applications Sync Stripper Single-Supply Composite Video Line Driver Outline Dimensions Ordering Guide
